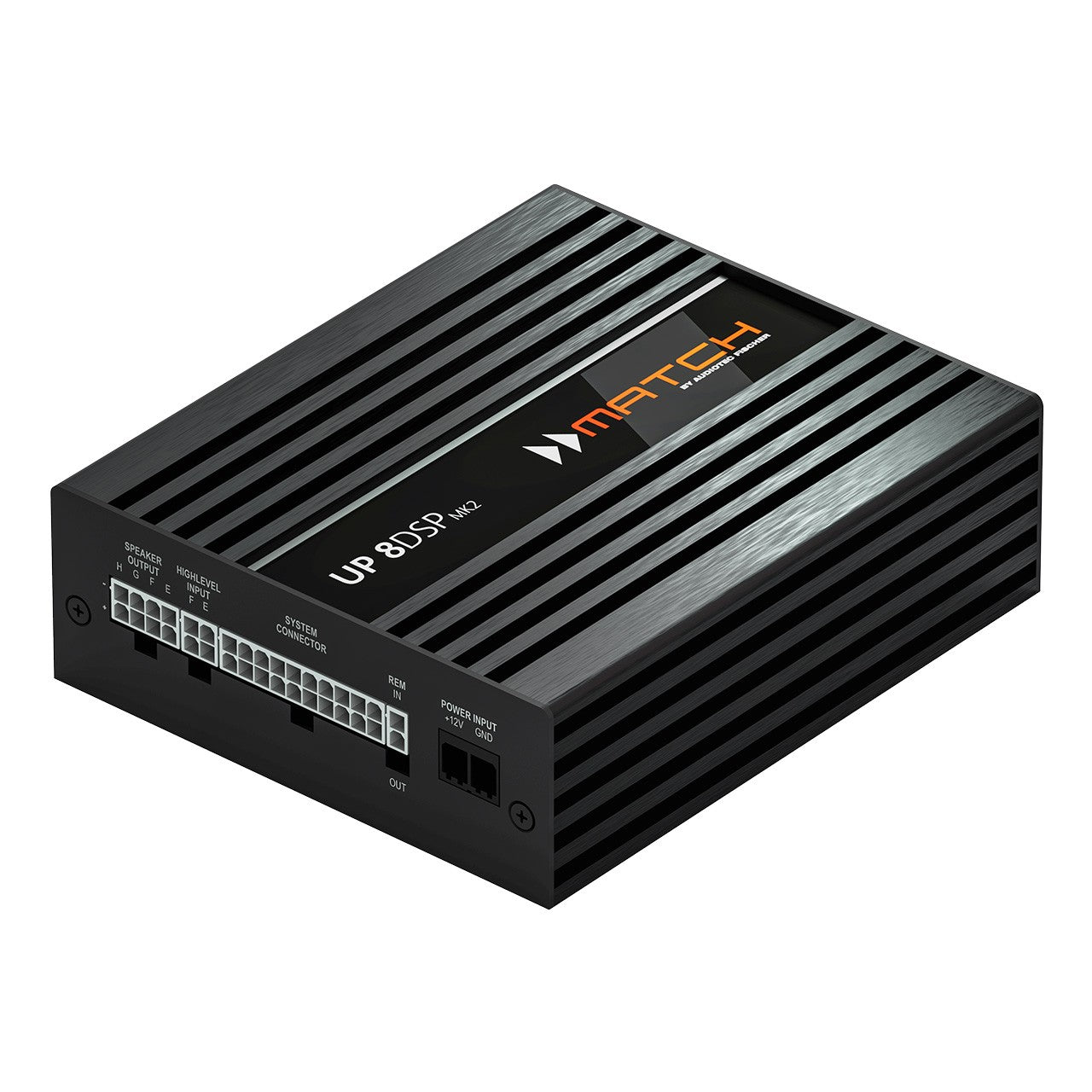

MATCH UP 8DSP MK2 8-Channel Class GD Amplifier With DSP
£749.00
Sale price
£749.00
Regular price
Skip to product information

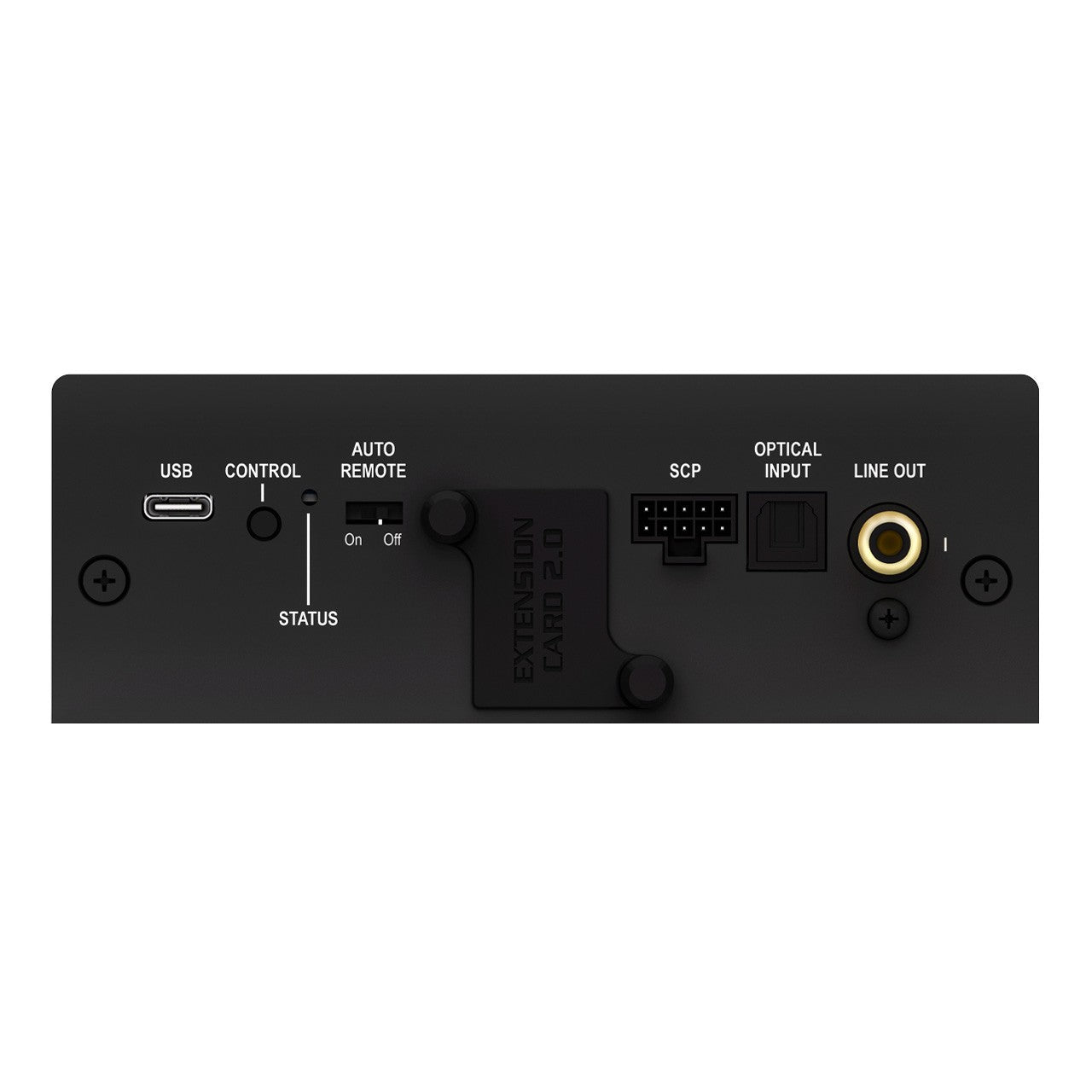

This 8-channel Class GD amplifier packs an integrated 9-channel 64-bit DSP for precise sound tuning. It offers six high-level inputs with ADEP.3 for seamless OEM integration, plus an optical digital input. Six channels deliver 65 watts RMS each, while two subwoofer channels push up to 160 watts RMS. The MK2 generation adds a USB-C port and an Extension Card 2.0 slot for Bluetooth HD or extra inputs. Virtual Channel Processing and the ACO 32-bit coprocessor handle complex signal routing and effects like Augmented Bass Processing.
Amplifier Technology: Class GD
Number of Channels: 8
DSP Channels: 9
DSP Resolution: 64 Bit
DSP Power: 295 MHz
Sampling Rate: 48 kHz
Power Output (4 Ohms, Channels A-F): 65 Watts RMS
Power Output (4 Ohms, Channels G-H): 75 Watts RMS
Power Output (2 Ohms, Channels G-H): 125 Watts RMS
Max Output Power (4 Ohms, Channels A-F): 80 Watts RMS
Max Output Power (4 Ohms, Channels G-H): 90 Watts RMS
Max Output Power (2 Ohms, Channels G-H): 160 Watts RMS
Frequency Response: 15 Hz - 22,000 Hz
Signal-to-Noise Ratio (Digital Input): 104 dB
Signal-to-Noise Ratio (Analog Input): 100 dB
Total Harmonic Distortion (1 kHz, 1 W into 4 Ohms): < 0.015%
Input Sensitivity: 2.8 - 11 Volts
Operating Voltage: 10.5 - 18 Volts
Idle Current: 380 mA
Fuse Rating: 2 x 25 A LP-Mini-fuse (APS)
Operating Temperature Range: -40°C to +70°C
Dimensions (H x W x D): 46 x 130 x 153 mm
Weight: 1.7 kg
