Match Up 8DSP BMW mk2

“M-Power” for your BMW HiFi sound system

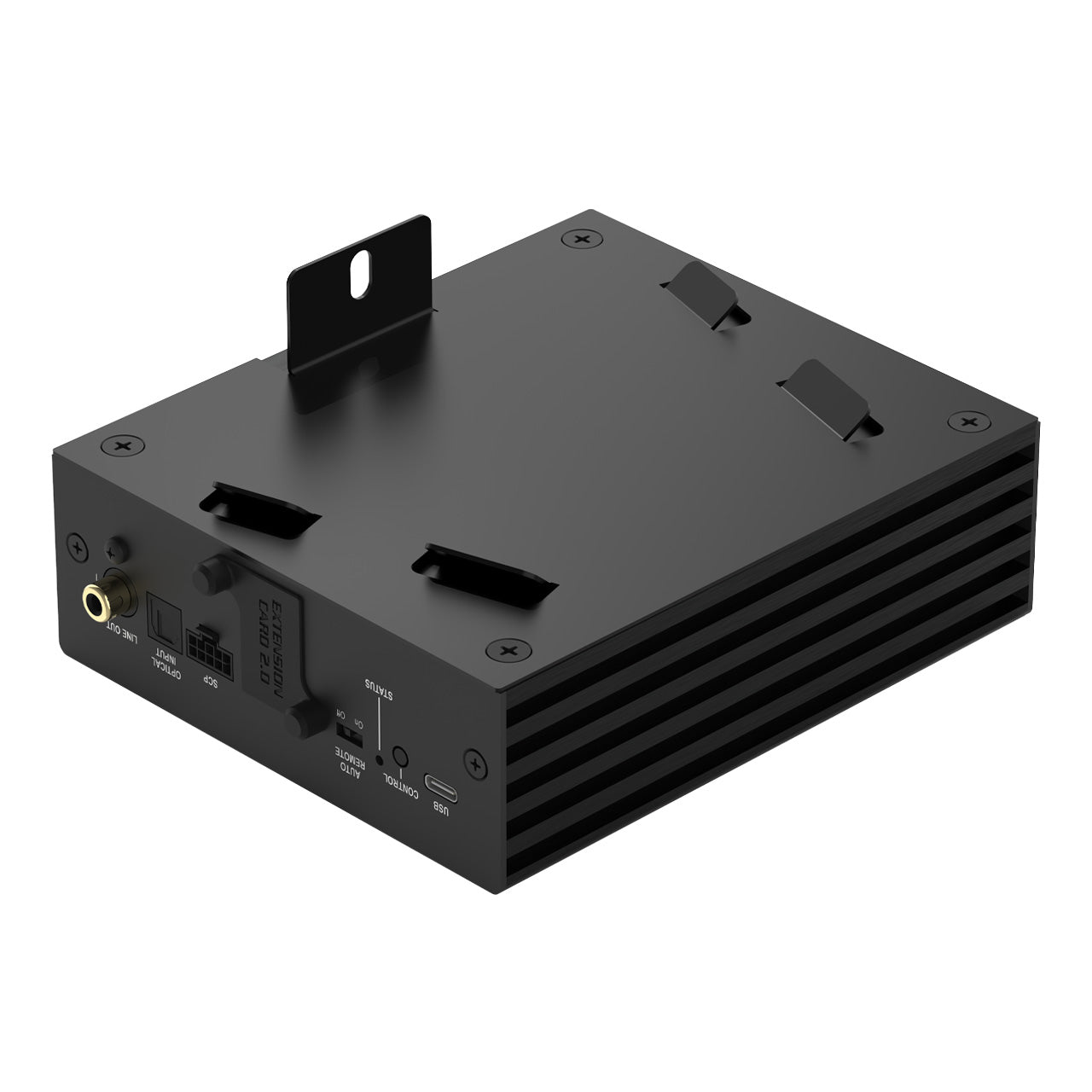

The MATCH UP 8BMW MK2 is the Plug & Play “M package” for BMW HiFi systems. It combines a powerful 8-channel Class GD amplifier with an integrated 9-channel DSP, delivering power and dynamics for an impressive hi-fi upgrade while maintaining clean, OEM-friendly integration in the vehicle. Designed for BMW E and F models as well as G30 / G31 (pre-facelift) with the HiFi sound system (option 676), it installs at the factory location using the included Plug & Play connection cable and a BMW-specific mounting solution.

In the MK2 generation, the concept has been further refined and adds key updates with a USB-C port and the Extension Card 2.0 slot for contemporary, expandable system integration. As the centerpiece of a scalable BMW upgrade concept, the UP 8BMW MK2 can be ideally combined with additional MATCH BMW components and HELIX COMPOSE speakers.

Seamless integration and strong performance in a compact format

For optimal integration into existing factory systems, the UP 8BMW MK2 provides six highlevel inputs to tap the OEM speaker signals (including ADEP.3 for reliable interfacing with many factory head units), plus an optical digital input for integrating digital sources.

On the output side, it offers eight amplifier channels: 6 x 65 Watts RMS @ 4 Ω as well as two powerful subwoofer outputs with up to 2 x 90 / 160 Watts RMS @ 4 / 2 Ω maximum output power, combined with 9 processed DSP channels for precise signal processing and flexible sound tuning.

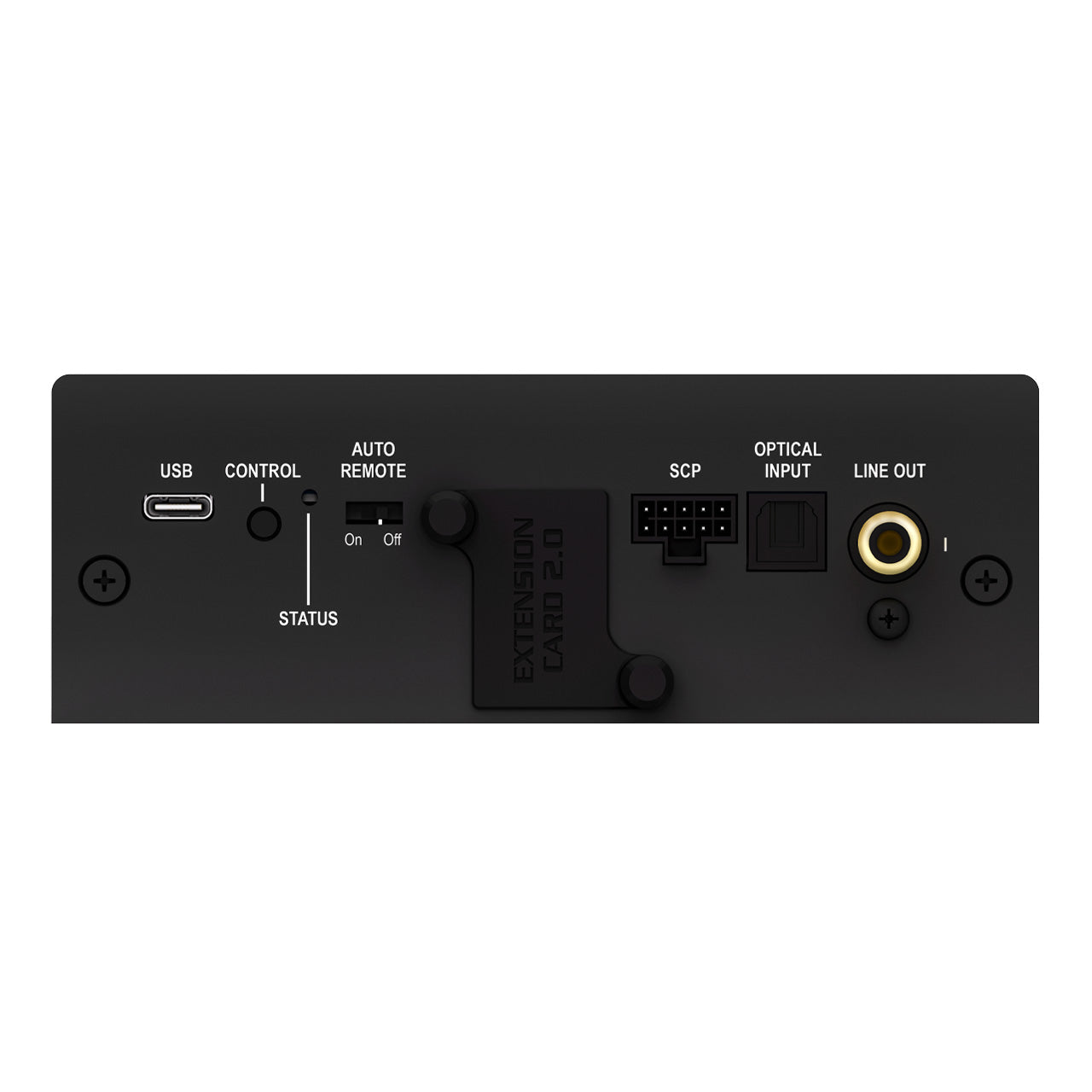

This combines performance and connectivity in a compact, space-saving design and adds further expandability in the MK2 generation: the new Extension Card 2.0 slot is included, a revised expansion system with a screw-secured plastic cover and cross-series compatibility. This allows modular expansion of the system integration when required, for example with Bluetooth^® HD or additional analog or digital inputs. The USB-C port also enables modern access via DSP PC-Tool.
