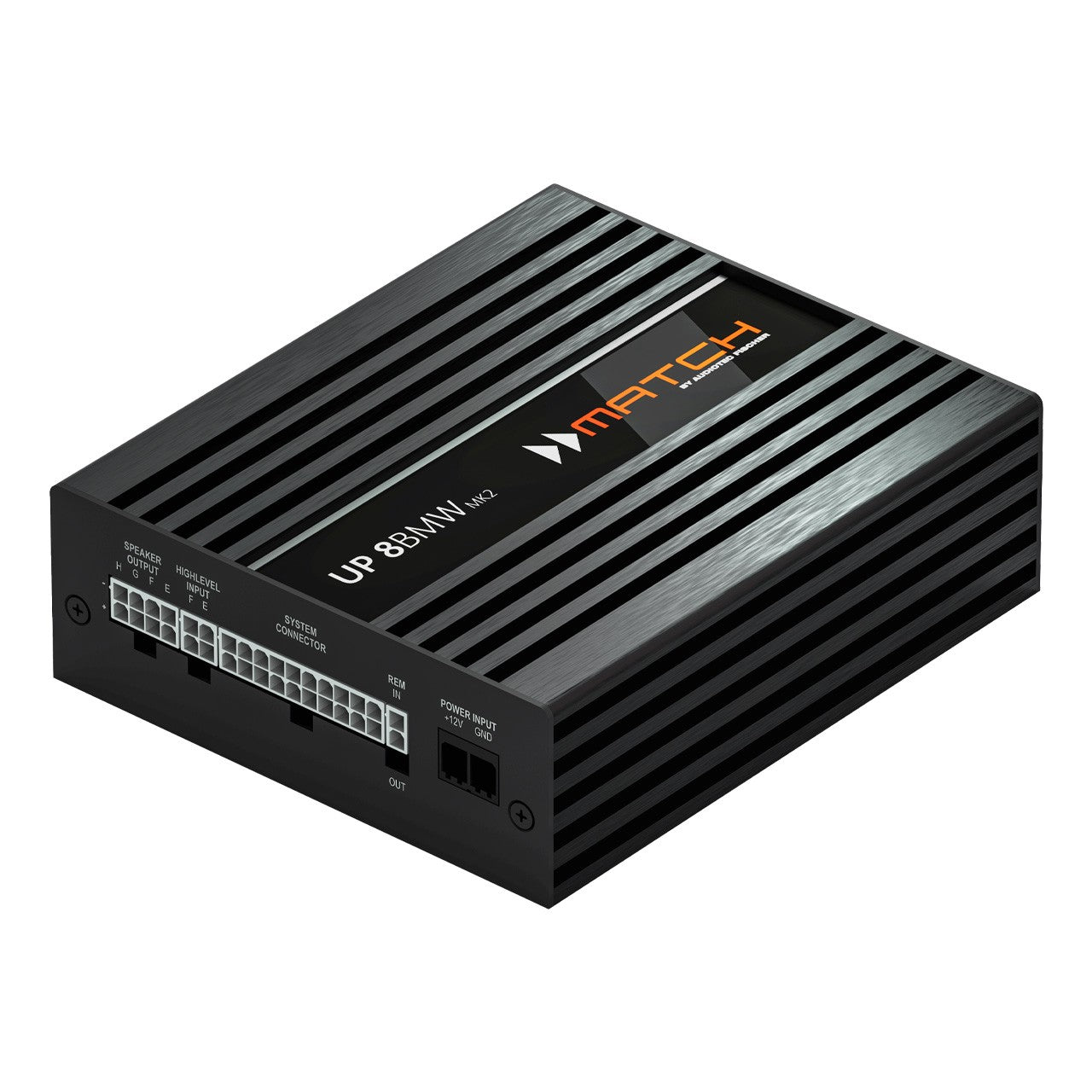

MATCH UP 8BMW MK2 8-Channel Plug & Play DSP Amplifier
£749.00
Sale price
£749.00
Regular price
Skip to product information

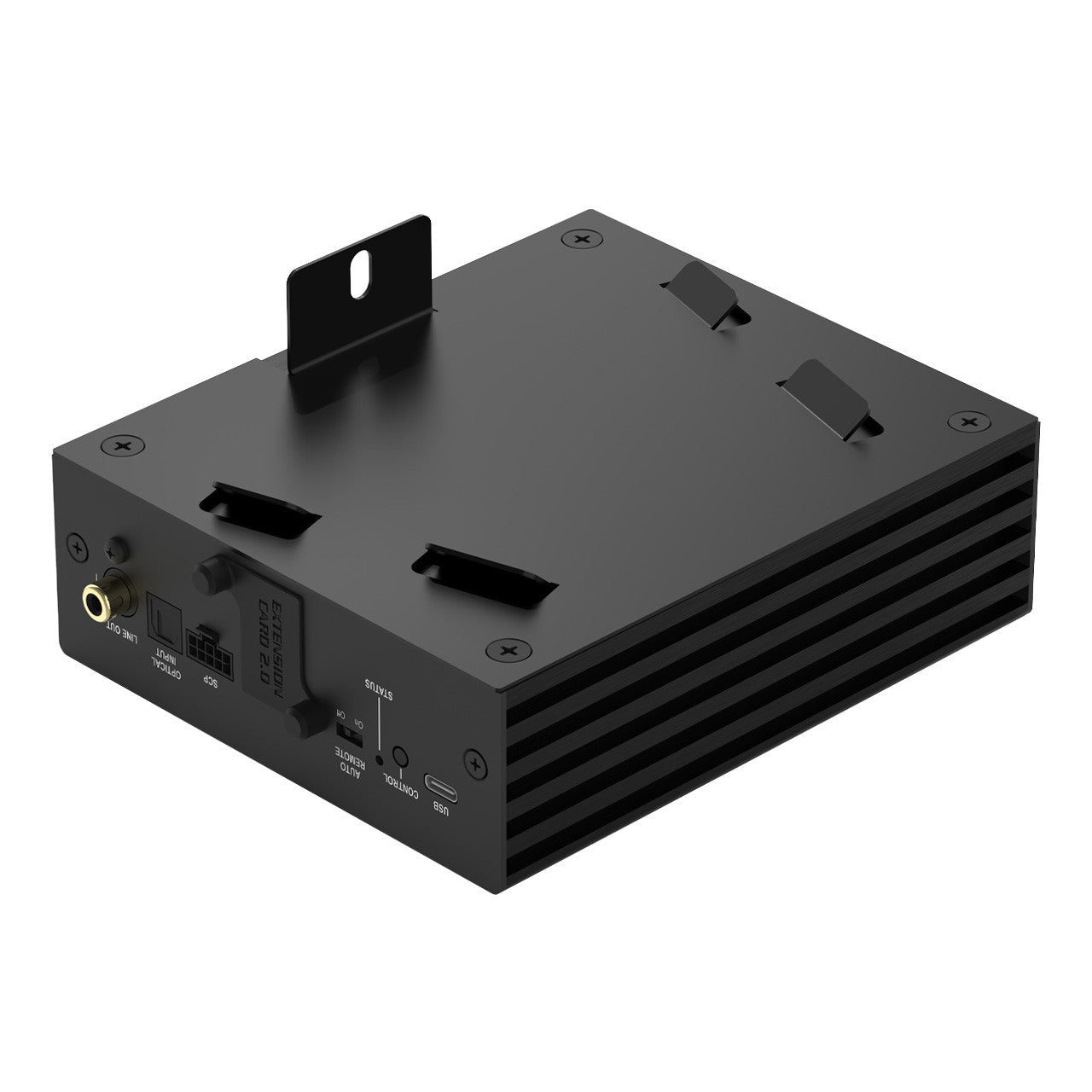

This 8-channel Class GD amplifier combines a powerful 8-channel amp with a built-in 9-channel DSP for a serious HiFi upgrade in your BMW. Designed for BMW E, F, and G30/G31 models with the HiFi sound system (option 676), it installs at the original mounting point using the included plug-and-play cable and BMW-specific mounting plate. The MK2 generation adds a USB-C port and an Extension Card 2.0 slot for future expandability, like Bluetooth HD audio. With 6 x 65W RMS @ 4 ohms and 2 x 90/160W RMS @ 4/2 ohms for subwoofers, plus the 32-bit ACO co-processor for advanced DSP features like TuneEQ and RealCenter, this is a complete sound upgrade.
Amplifier Technology: Class GD
Number of Channels: 8
DSP Channels: 9
DSP Resolution: 64 Bit
DSP Processing Power: 295 MHz (1.2 billion MAC operations/second)
Sampling Rate: 48 kHz
RMS Power @ 4 Ohm (Channels A-F): 65 Watts
RMS Power @ 4 Ohm (Channels G-H): 75 Watts
RMS Power @ 2 Ohm (Channels G-H): 125 Watts
Maximum Power @ 4 Ohm (Channels A-F): 80 Watts
Maximum Power @ 4 Ohm (Channels G-H): 90 Watts
Maximum Power @ 2 Ohm (Channels G-H): 160 Watts
Frequency Response: 15 Hz - 22,000 Hz
Signal-to-Noise Ratio (Digital Input): 104 dB (A-weighted)
Signal-to-Noise Ratio (Analogue Input): 100 dB (A-weighted)
THD+N @ 1 kHz, 1W @ 4 Ohm: < 0.02%

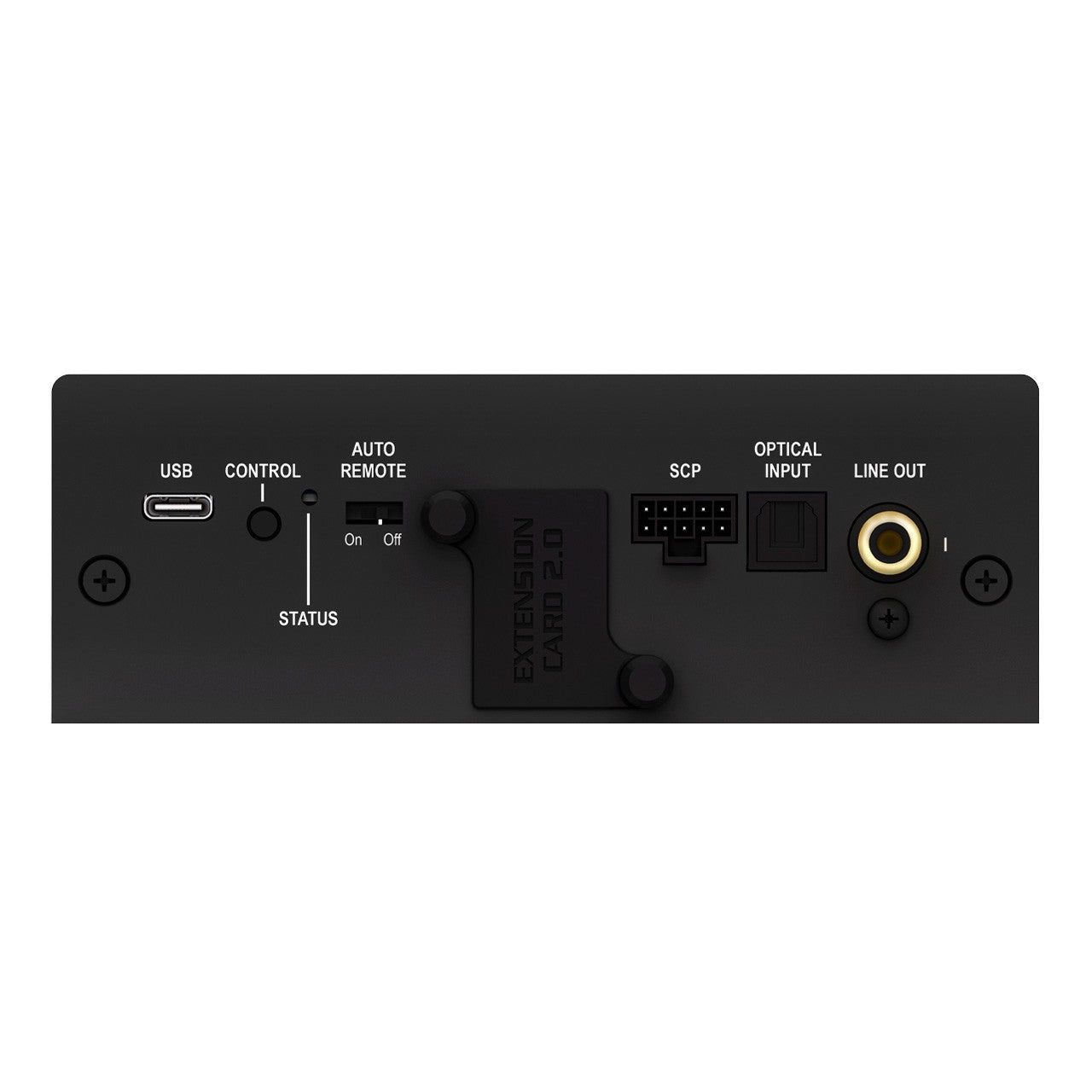

Inputs: 6 x High-level speaker input, 1 x Optical SPDIF (12-96 kHz), 1 x Extension Card 2.0
Input Sensitivity: 2.8 - 11 Volts

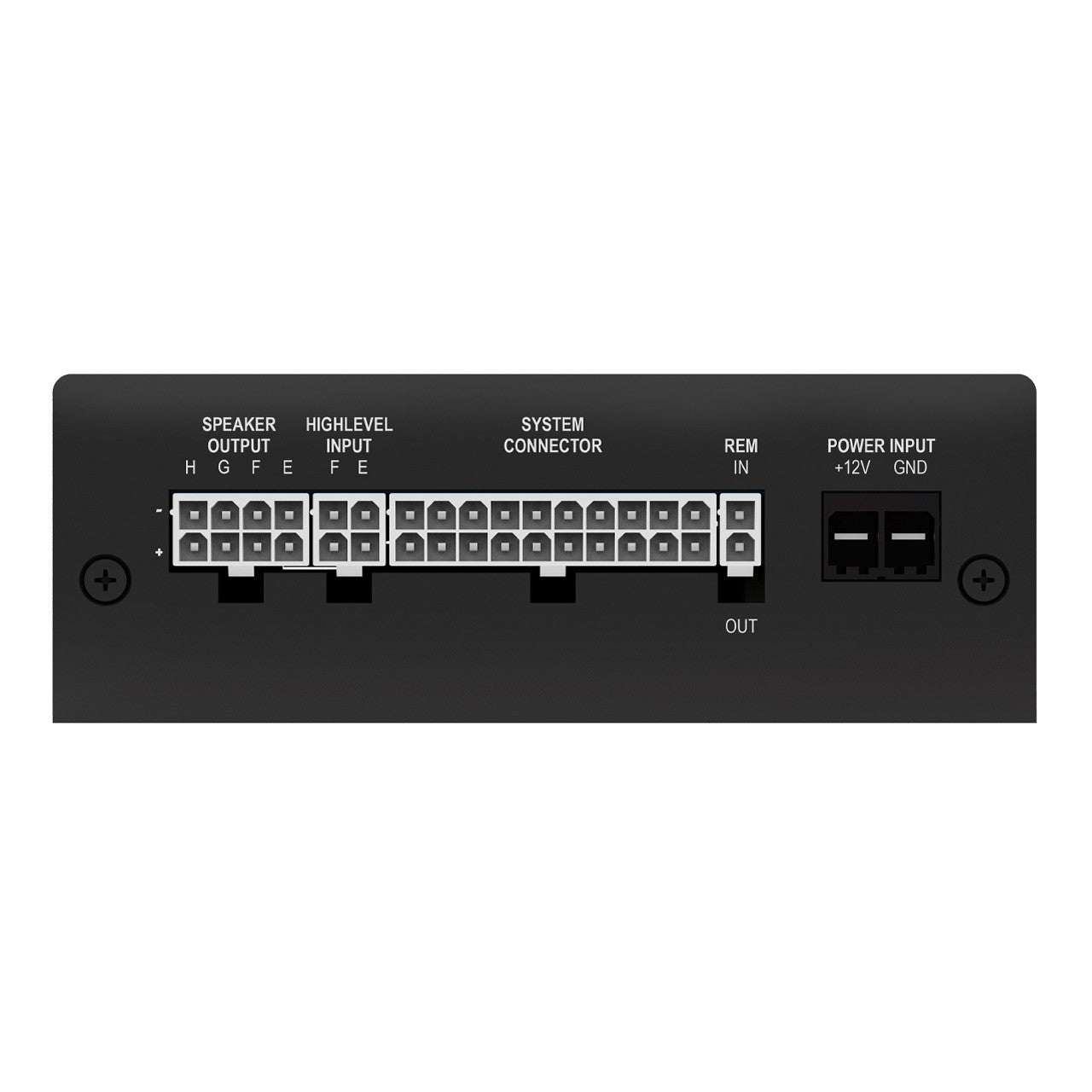

Outputs: 8 x Speaker output, 1 x RCA, 1 x Remote Out
Operating Voltage: 10.5 - 18 Volts (down to 6 Volts for 5 seconds)
Current Draw: 40 Amps max.
Idle Current Draw: 380 mA
Fuse: 1 x 25 A LP-Mini blade fuse
Operating Temperature Range: -40°C to +70°C
Dimensions (H x W x D): 46 x 130 x 153 mm
Weight: 0.8 kg (approx)
Additional Features: Class GD with regulated power supply, 32-bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB-C, Auto Remote switch, Power Save Mode
