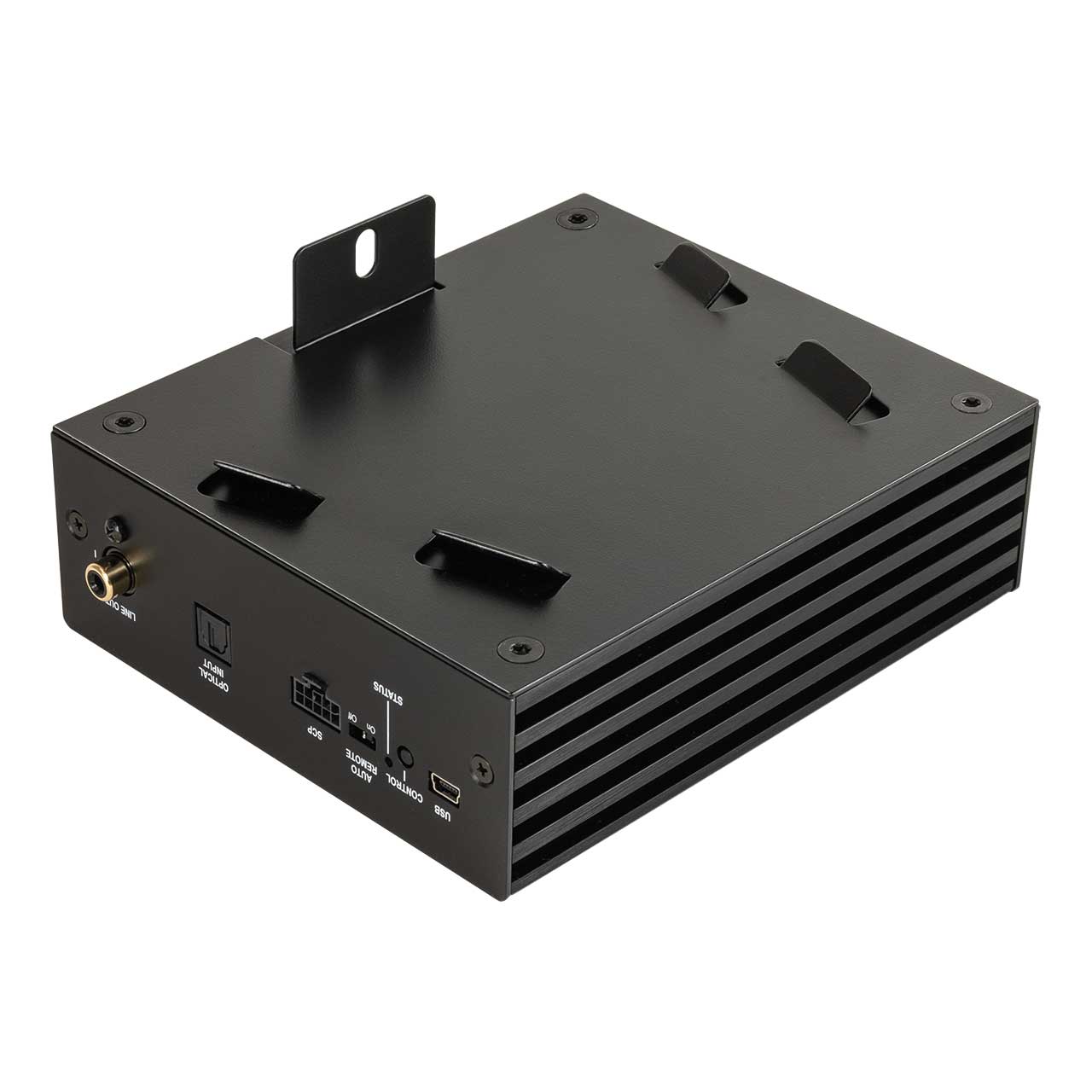

MATCH UP 8BMW 8-Channel Plug and Play DSP Amplifier
£899.00
Sale price
£899.00
Regular price
Skip to product information
This 8-channel plug-and-play upgrade amplifier packs a 9-channel 64-bit DSP, delivering a seriously dynamic and powerful audio experience for your BMW. Designed for E, F, and G30/G31 (pre-facelift) models with the HiFi sound system (Option 676), it integrates seamlessly at the original mounting location. Two channels deliver 160W each at 2 Ohms to drive even large subwoofers, while the ACO 32-bit CoProcessor handles advanced sound effects like Augmented Bass Processing. The ADEP.3 circuit cleverly avoids diagnostic errors with modern BMW radios, and the Start-Stop capability keeps the music playing even when the engine cuts out.
Amplifier Technology: Class GD
Number of Channels: 8
DSP Channels: 9
DSP Resolution: 64 Bit
Output Power RMS @ 4 Ohms: Channels A-F: 6 x 65W
Subwoofer Output RMS @ 4 Ohms: Channels G-H: 2 x 90W
Subwoofer Output RMS @ 2 Ohms: Channels G-H: 2 x 160W
Frequency Response: 10 Hz - 22,000 Hz
Signal-to-Noise Ratio (Digital Input): 106 dB (A-weighted)
Signal-to-Noise Ratio (Analog Input): 104 dB (A-weighted)
Total Harmonic Distortion (THD): < 0.03%
Damping Factor: > 100
Operating Voltage: 10.5 - 17 Volts
Input Sensitivity (Highlevel): 2.8 - 11 Volts

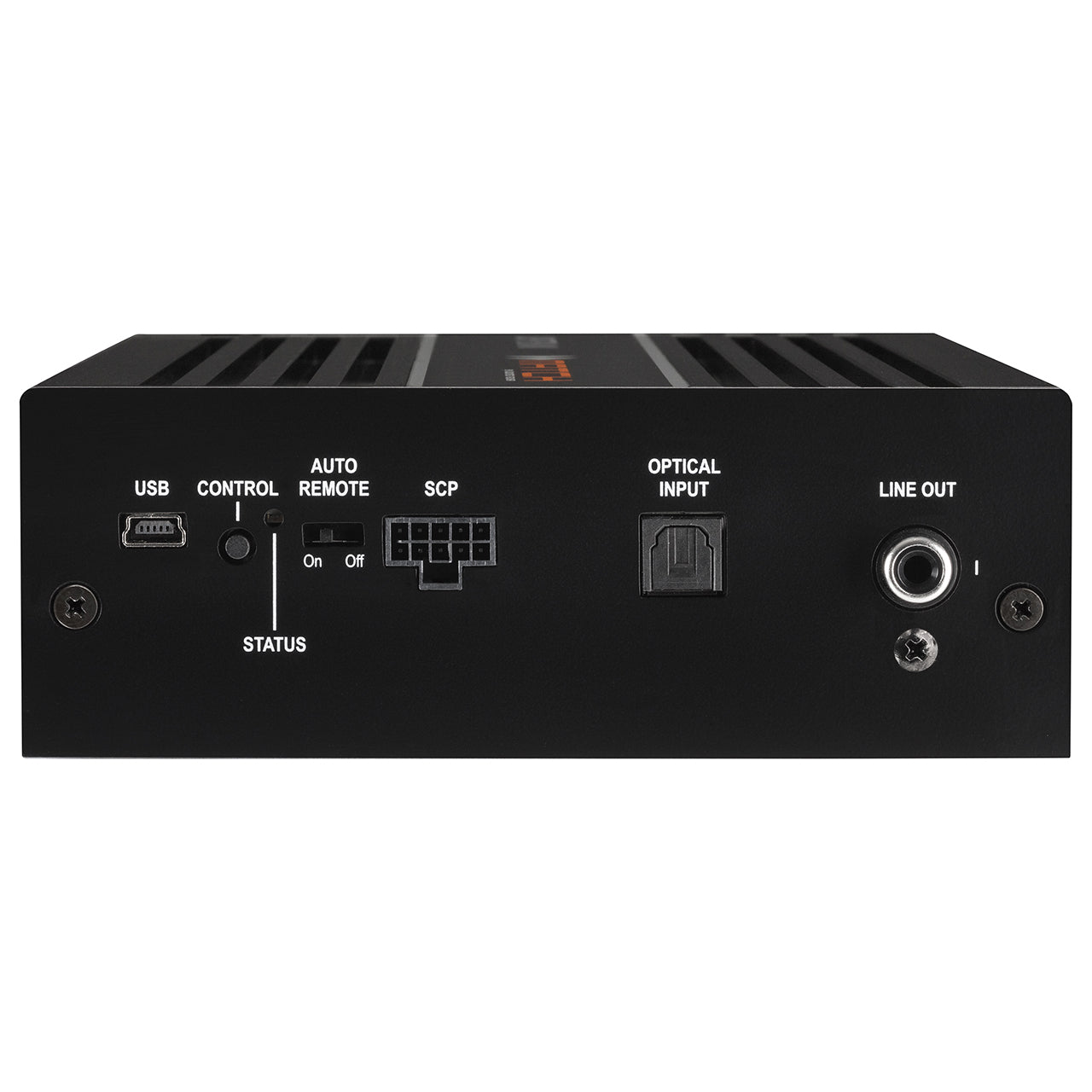

Inputs: 6 x Highlevel speaker input, 1 x Optical SPDIF (12-96 kHz), 1 x MEC, 1 x Remote In
Outputs: 8 x Speaker output, 1 x RCA/Cinch, 1 x Remote Out
Dimensions (H x W x D): 46 x 130 x 153 mm
Weight: 0.9 kg (estimated)
Compatibility: BMW E, F, G30/G31 (pre-facelift) with HiFi Option 676
Amplifier Class: Class GD
Fuse: 1 x 25 A LP-Mini-fuse (APS)
Operating Temperature Range: -40°C to +70°C
