Match Up 6DSP mk2

Compact powerhouse with smart integration and modern DSP technology

The MATCH UP 6DSP MK2 combines a powerful 6-channel Class GD amplifier with an integrated 7-channel DSP, delivering power and dynamics for authentic hi-fi sound while maintaining clean, OEM-friendly integration in the vehicle. In the MK2 generation, the concept has been further refined and adds key updates with a USB-C port and the Extension Card 2.0 slot for contemporary, expandable system integration.

Perfect upgrade for standard factory sound systems

For optimal integration into existing factory systems, the UP 6DSP MK2 provides six highlevel inputs to tap the OEM speaker signals (including ADEP.3 for reliable interfacing with many factory head units), plus an optical digital input for integrating digital sources.

On the output side, it offers six amplifier channels, complemented by a preamp output and the integrated 7-channel DSP for flexible speaker configurations and precise sound tuning. In terms of power, the amplifier delivers 4 x 65 Watts RMS @ 4 Ω as well as two powerful subwoofer outputs with up to 2 x 90 / 160 Watts RMS @ 4 / 2 Ω maximum output power – ideal for a powerful front stage and confident subwoofer drive.

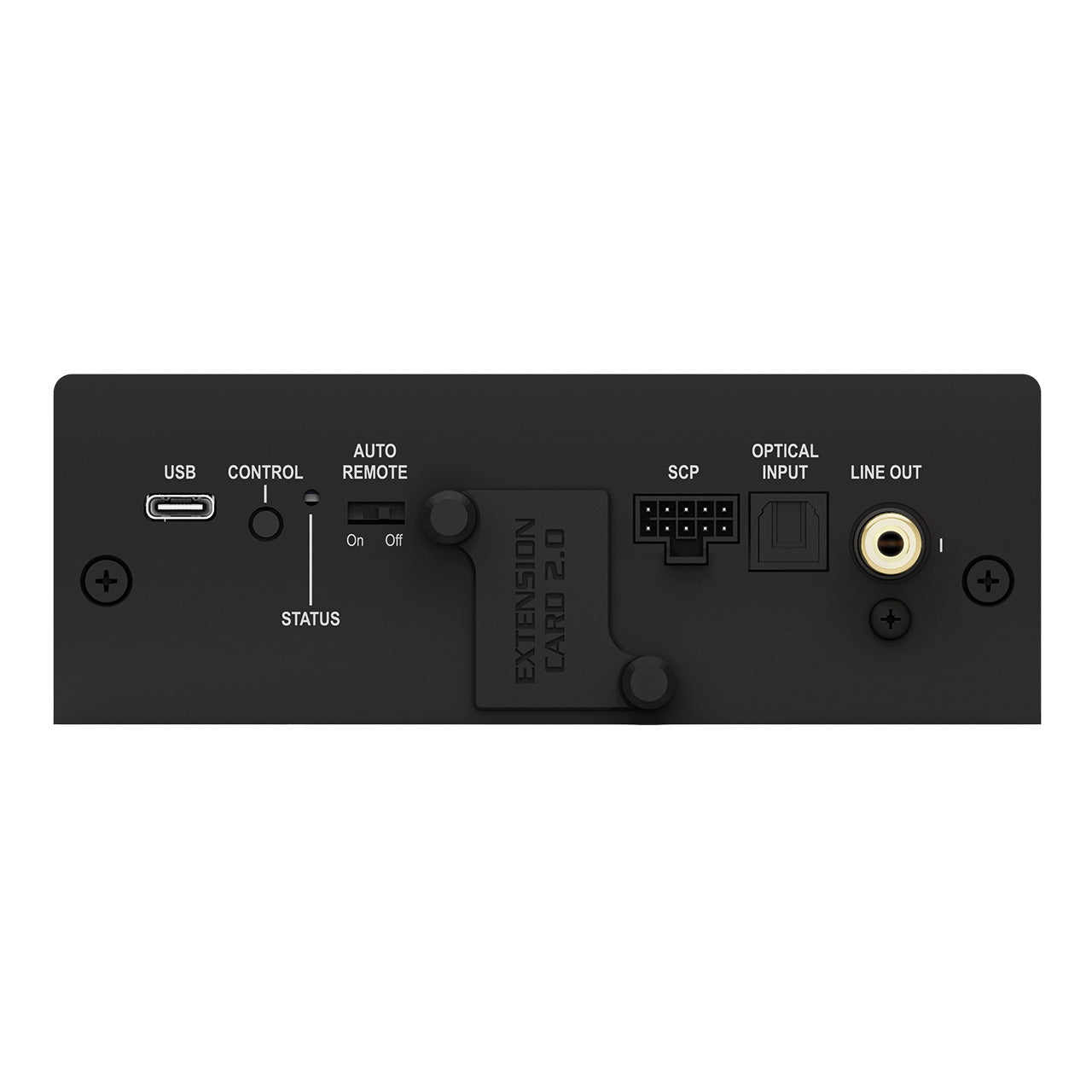

This combines performance and connectivity in a compact, space-saving design and adds further expandability in the MK2 generation: the new Extension Card 2.0 slot is included, a revised expansion system with a screw-secured plastic cover and cross-series compatibility. This allows modular expansion of the system integration when required, for example with Bluetooth^® HD or additional analog or digital inputs. The USB-C port also enables modern access via DSP PC-Tool
