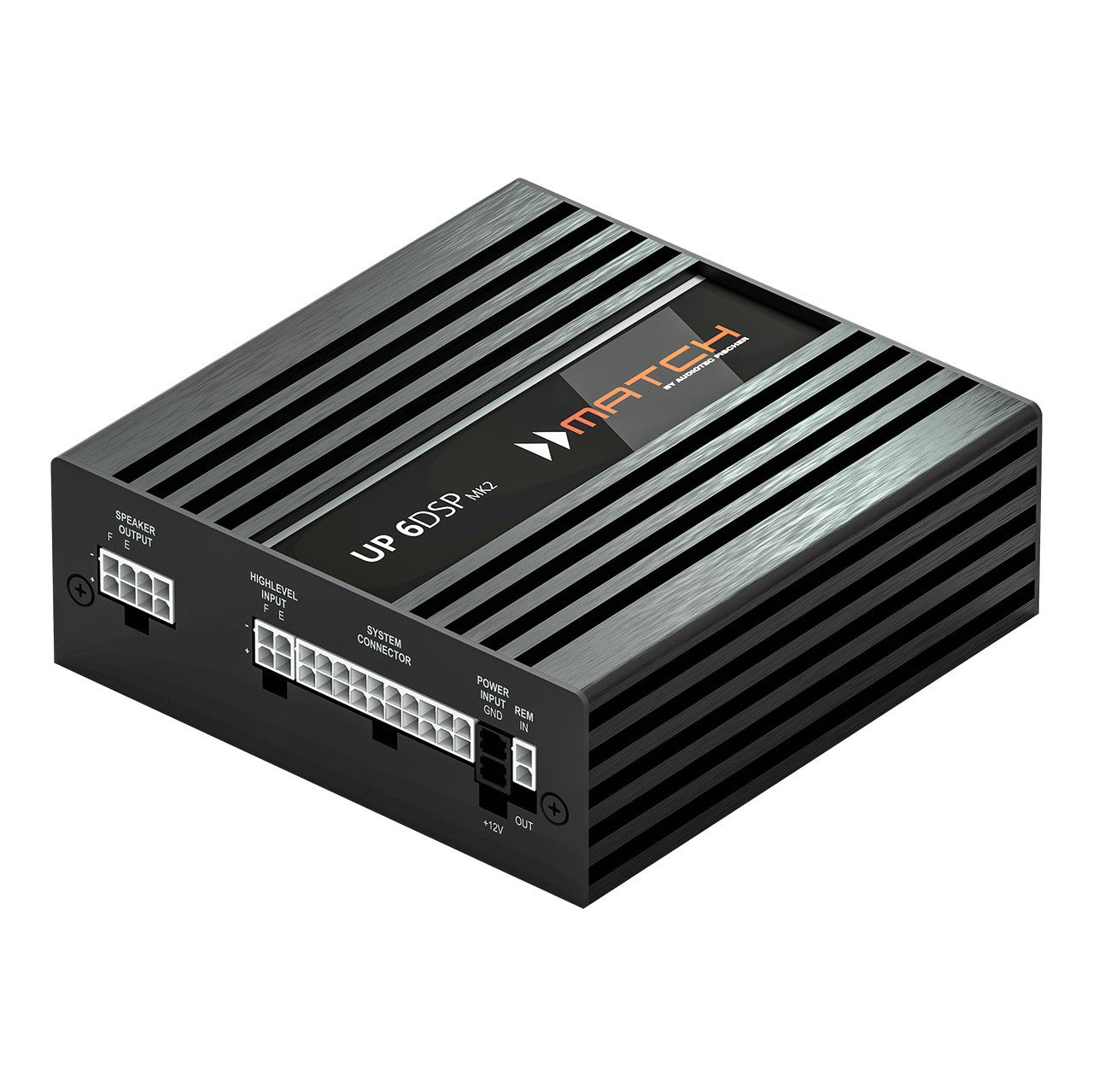

MATCH UP 6DSP MK2 6-Channel Class GD Amplifier 64-Bit DSP
£569.00
Sale price
£569.00
Regular price
Skip to product information

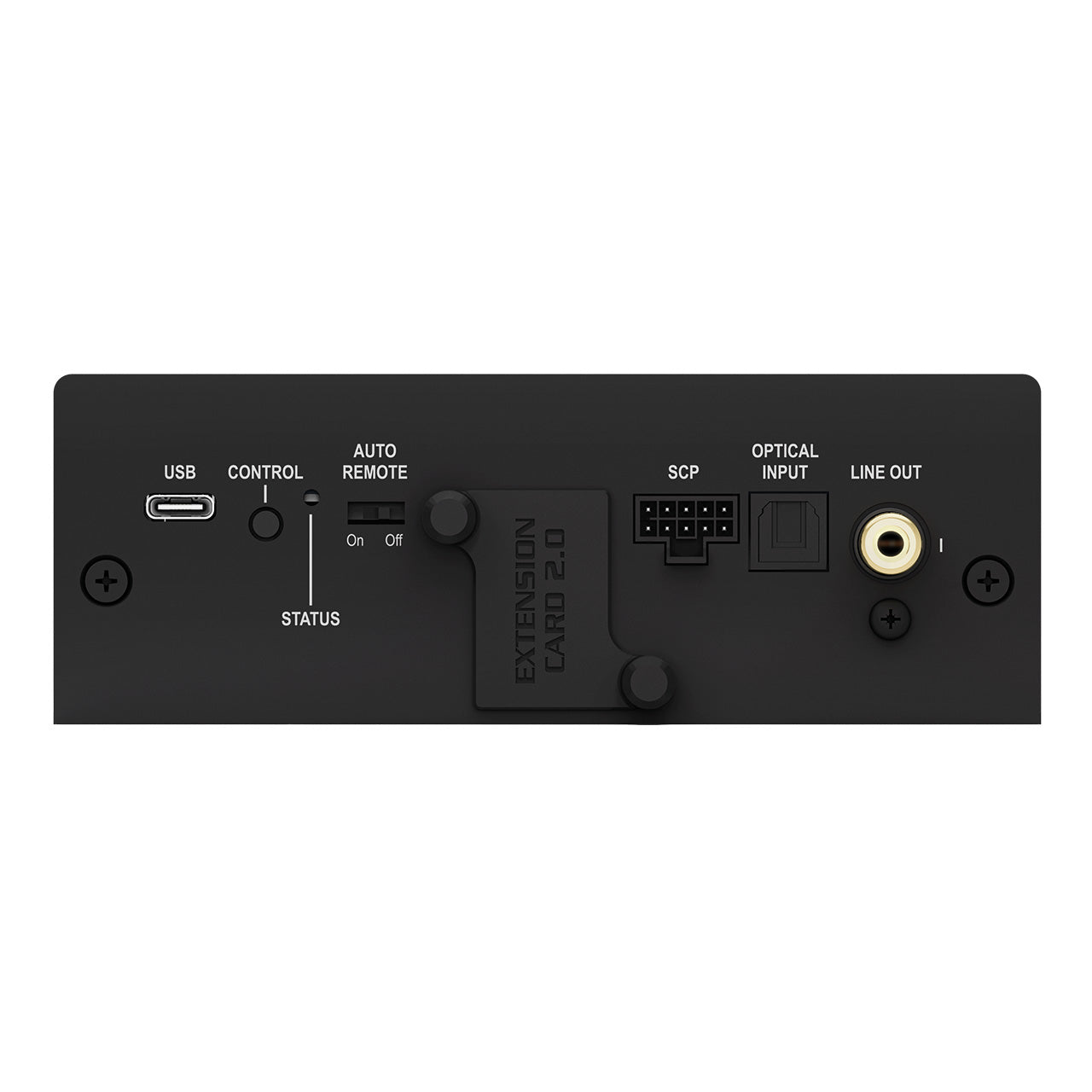

This compact 6-channel Class GD amplifier packs a 7-channel 64-Bit DSP for authentic HiFi sound and seamless OEM integration. The MK2 generation adds a USB-C port and Extension Card 2.0 slot for modular expansion, including Bluetooth HD audio. Six high-level inputs with ADEP.3 circuitry ensure safe connection to factory radios, while an optical SPDIF input handles digital sources. The ACO 32-Bit CoProcessor enables advanced sound effects like Augmented Bass Processing and RealCenter, all configurable via the intuitive DSP PC-Tool 6 software.
Amplifier Technology: Class GD
Number of Channels: 6
DSP Channels: 7
DSP Resolution: 64 Bit
DSP Processing Power: 295 MHz (1.2 billion MAC operations/second)
Power Output RMS @ 4 Ohm: Channels A-D: 65 W, Channels E-F: 75 W
Power Output RMS @ 2 Ohm: Channels E-F: 125 W
Max Power per Channel: Channels A-D: up to 80 W RMS @ 4 Ohm, Channels E-F: up to 90 W RMS @ 4 Ohm / 160 W RMS @ 2 Ohm
Frequency Response: 15 Hz - 22,000 Hz
Signal-to-Noise Ratio (Digital Input): 104 dB (A-weighted)
Signal-to-Noise Ratio (Analog Input): 100 dB (A-weighted)
THD+N @ 1 kHz, 1 W @ 4 Ohm: < 0.02%
Inputs: 6 x High-Level Speaker Inputs, 1 x Optical SPDIF (12-96 kHz), 1 x Extension Card 2.0
Input Sensitivity: 2.8 - 11 V
Outputs: 6 x Speaker Outputs, 1 x RCA Pre-Out, 1 x Remote Out
Operating Voltage: 10.5 - 18 V (down to 6 V for 5 seconds)
Current Consumption: DC 12 V, 35 A max
Idle Current: 360 mA
Fuse: 1 x 30 A LP-Mini
Operating Temperature Range: -40°C to +70°C
Dimensions (H x W x D): 46 x 130 x 130 mm
Weight: Approx. 1.2 kg
Additional Features: ACO 32-Bit CoProcessor, ADEP.3 Circuit, Start-Stop Capability, Smart Control Port, USB-C, Auto Remote Switch, Regulated Power Supply, EV-Ready
