Match Up 10DSP mk2
Match Up 10DSP mk2
Premium sound upgrade for complex multi-channel OEM systems
The MATCH UP 10DSP MK2 is the ideal solution for high-quality sound upgrades in modern vehicles with multi-channel factory sound systems. It combines a powerful 10-channel amplifier with an integrated 11-channel DSP, enabling a clearly improved sound experience while maintaining a clean and discrete integration in the vehicle. As an updated MK2 model, it also adds current features such as a USB-C connection and an Extension Card 2.0 slot. This keeps the system up to date and allows flexible expansion when required. Overall, the MATCH UP 10DSP MK2 forms the perfect foundation for a modern premium sound system – powerful, versatile, and precisely aligned with the requirements of today’s vehicle architectures
Technical data
| Power RMS ≤ 1% THD+N | |
| - @ 4 Ohms | Channels A - H: 65 Watts (min. 3 Ohms*) Channels I - J: 75 Watts (min. 3 Ohms*) |
| - @ 2 Ohms | Channels I - J: 125 Watts |
| - @ 1 Ohm | - |
| - bridged @ 4 Ohms | - |
| - bridged @ 2 Ohms | - |
| Max. output power per channel** | Channels A - H: up to 80 Watts RMS @ 4 Ohms Channels I - J: up to 90 Watts RMS @ 4 Ohms Channels I - J: up to 160 Watts RMS @ 2 Ohms |
| Amplifier technology | Class GD |

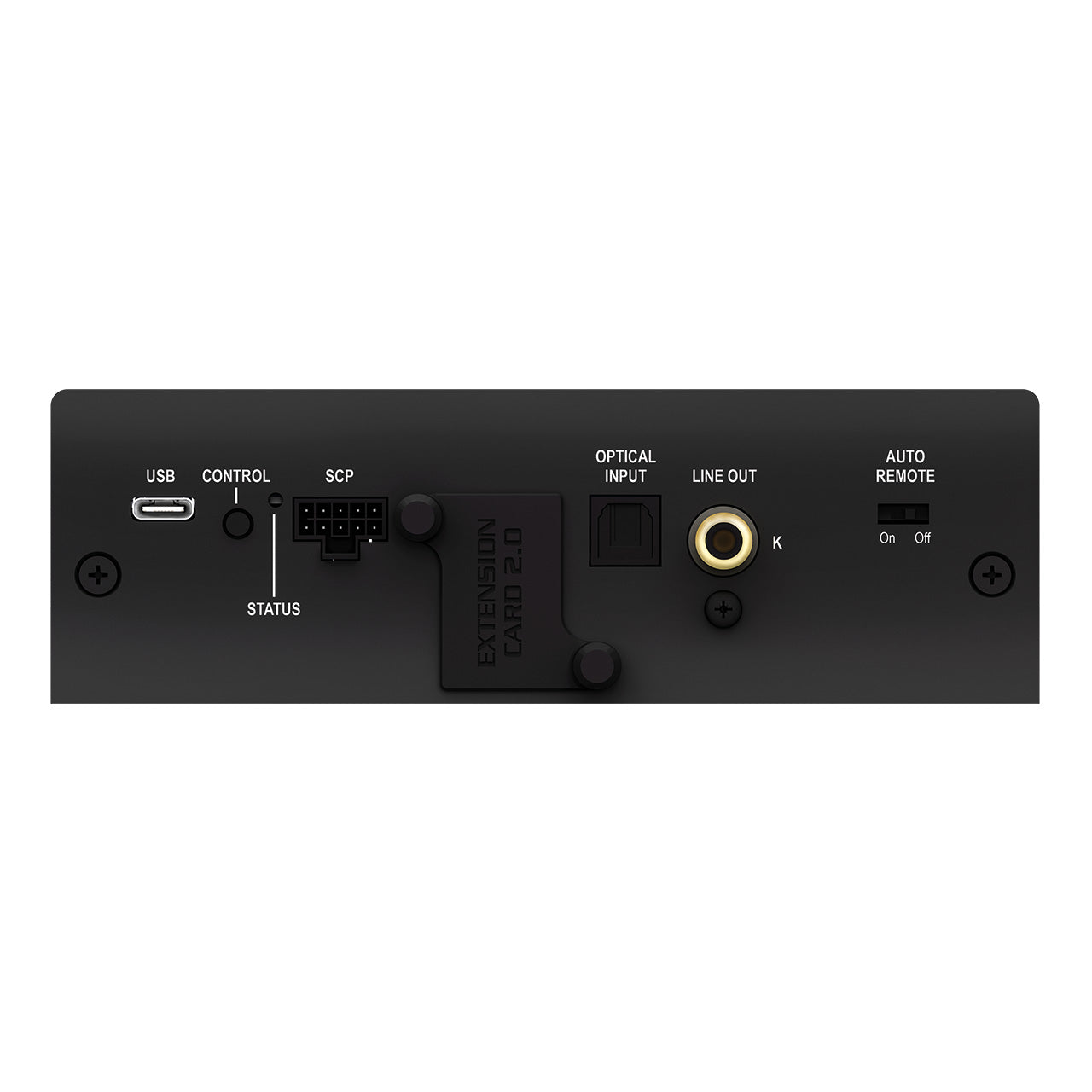

| Inputs | 8 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Extension Card 2.0 |
| Input sensitivity | Channels A - F: 4 - 16 Volts Channels G - H: 4 - 32 Volts |
| Input impedance RCA / Cinch | - |
| Input impedance highlevel | 9 - 33 Ohms with ADEP.3 |
| Outputs | 10 x Speaker output 1 x RCA / Cinch 1 x Remote Out |
| Output voltage RCA / Cinch | 3 Volts RMS |
| Frequency response | 15 Hz - 22,000 Hz |
