MATCH PP 86DSP MK2 8-Channel Class HD Amplifier DSP
£729.00
Sale price
£729.00
Regular price
Skip to product information

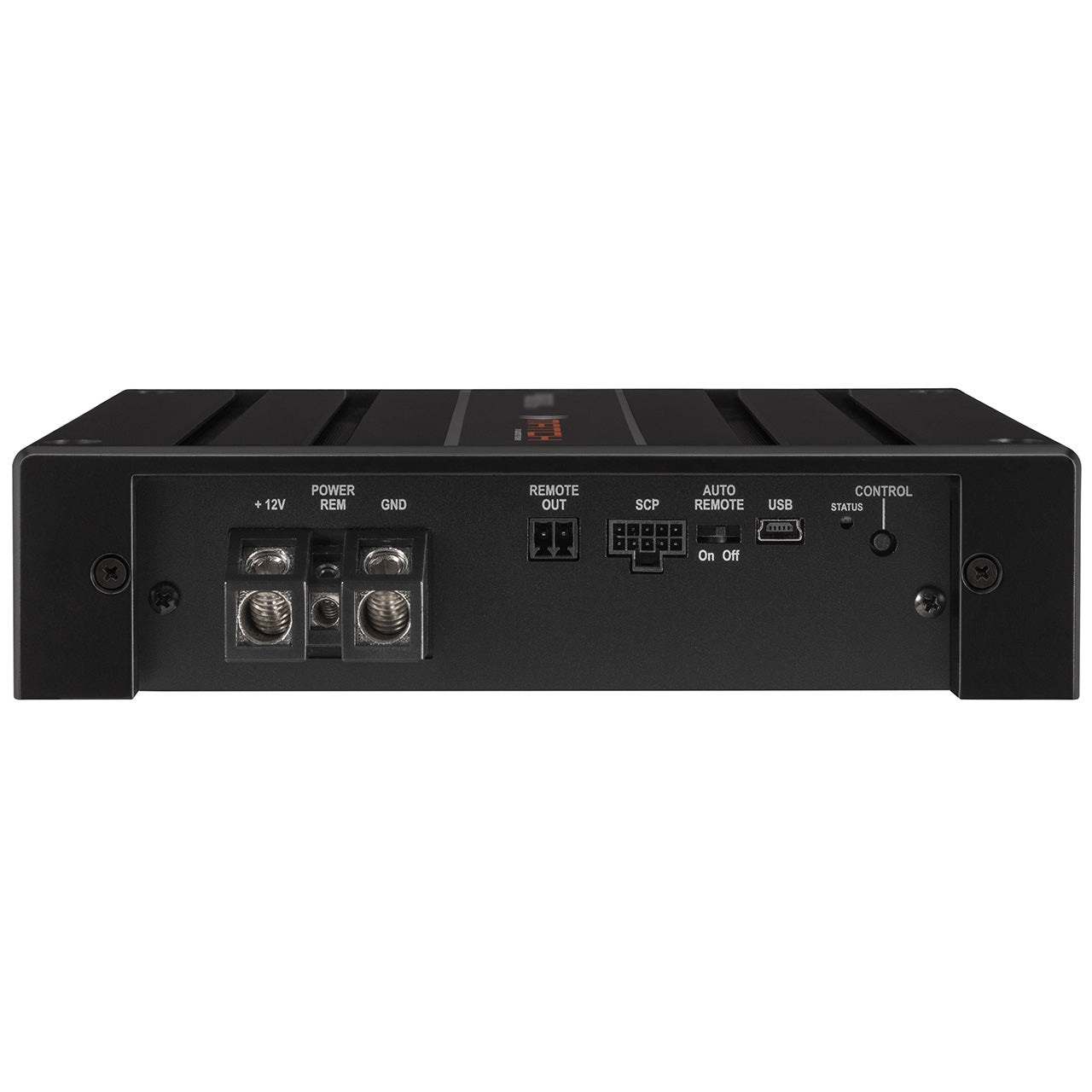

The PP 86DSP MK2 is an 8-channel Class HD amplifier with a built-in 9-channel 64-bit DSP, designed for upgrading factory sound systems. It features a 6-channel high-level input with ADEP.3 technology, an optical SPDIF input, and a MEC slot for expansion modules. The amplifier delivers 8 x 55 Watts RMS at 4 Ohms and 8 x 70 Watts RMS at 2 Ohms, with a frequency response of 20 Hz to 22 kHz. Its compact dimensions (44 x 185 x 164 mm) make installation straightforward, and the included DSP PC-Tool software allows precise tuning of the audio experience.
Amplifier Technology: Class HD
Number of Channels: 8
Output Power RMS @ 4 Ohms: 8 x 55 Watts
Output Power RMS @ 2 Ohms: 8 x 70 Watts
DSP Resolution: 64 Bit
DSP Type: Audio Signal Processor
Frequency Response: 20 Hz - 22,000 Hz
Signal-to-Noise Ratio (Digital Input): 105 dB (A-weighted)
Signal-to-Noise Ratio (Analog Input): 103 dB (A-weighted)
Total Harmonic Distortion (THD): < 0.015%
Damping Factor: > 100
Operating Voltage: 10.5 - 18 Volts
Inputs: 6 x High-Level Speaker Input, 1 x Optical SPDIF (12-96 kHz), 1 x MEC, 1 x Remote In
Outputs: 8 x Speaker Output, 2 x RCA/Cinch (Mono), 2 x Remote Out
Input Sensitivity (High-Level): 5 - 11 Volts
Dimensions (H x W x D): 44 x 185 x 164 mm
Weight: 1.2 kg (approx.)
Fuse: 2 x 25 A LP-Mini-Fuse (APS)
Operating Temperature Range: -40 °C to +70 °C
Load Stability: 2 Ohm, 4 Ohm
