Helix V Twelve DSP MK2 12-Channel Amplifier 64 Bit
£1,299.00
Sale price
£1,299.00
Regular price
Skip to product information
The Helix V Twelve DSP MK2 is a 12-channel amplifier that packs a 14-channel DSP into a chassis the size of two envelopes. Its Pure Class GD technology delivers up to 160 watts RMS per channel at 2 ohms while keeping heat dissipation minimal. The 12 high-level inputs and 6 RCA inputs make it a perfect fit for upgrading premium factory sound systems. An integrated 64-bit DSP, managed via the DSP PC-Tool software, offers features like Virtual Channel Processing and TuneEQ for precise sound tuning.
Amplifier Technology: Pure Class GD
Number of Channels: 12
Output Power (RMS) @ 4 Ohms: 12 x 75 Watts
Output Power (RMS) @ 2 Ohms: 12 x 120 Watts
Max Output Power per Channel: Up to 160 Watts RMS @ 2 Ohms
DSP Resolution: 64 Bit
DSP Power: 295 MHz (1.2 billion MAC operations/second)
Frequency Response: 20 Hz - 22,000 Hz
Signal-to-Noise Ratio (Digital Input): 107 dB (A-weighted)
Signal-to-Noise Ratio (Analog Input): 102 dB (A-weighted)
Total Harmonic Distortion (THD): < 0.015%
Damping Factor: > 70
Operating Voltage: 10.5 - 18 Volts (max. 5 sec. down to 6 Volts)
Idle Current: 700 mA
Fuse: 2 x 30 A LP-Mini-fuse (APS)
Operating Temperature Range: -40 °C to +70 °C
Dimensions (H x W x D): 44 x 220 x 220 mm
Weight: 2.84 kg

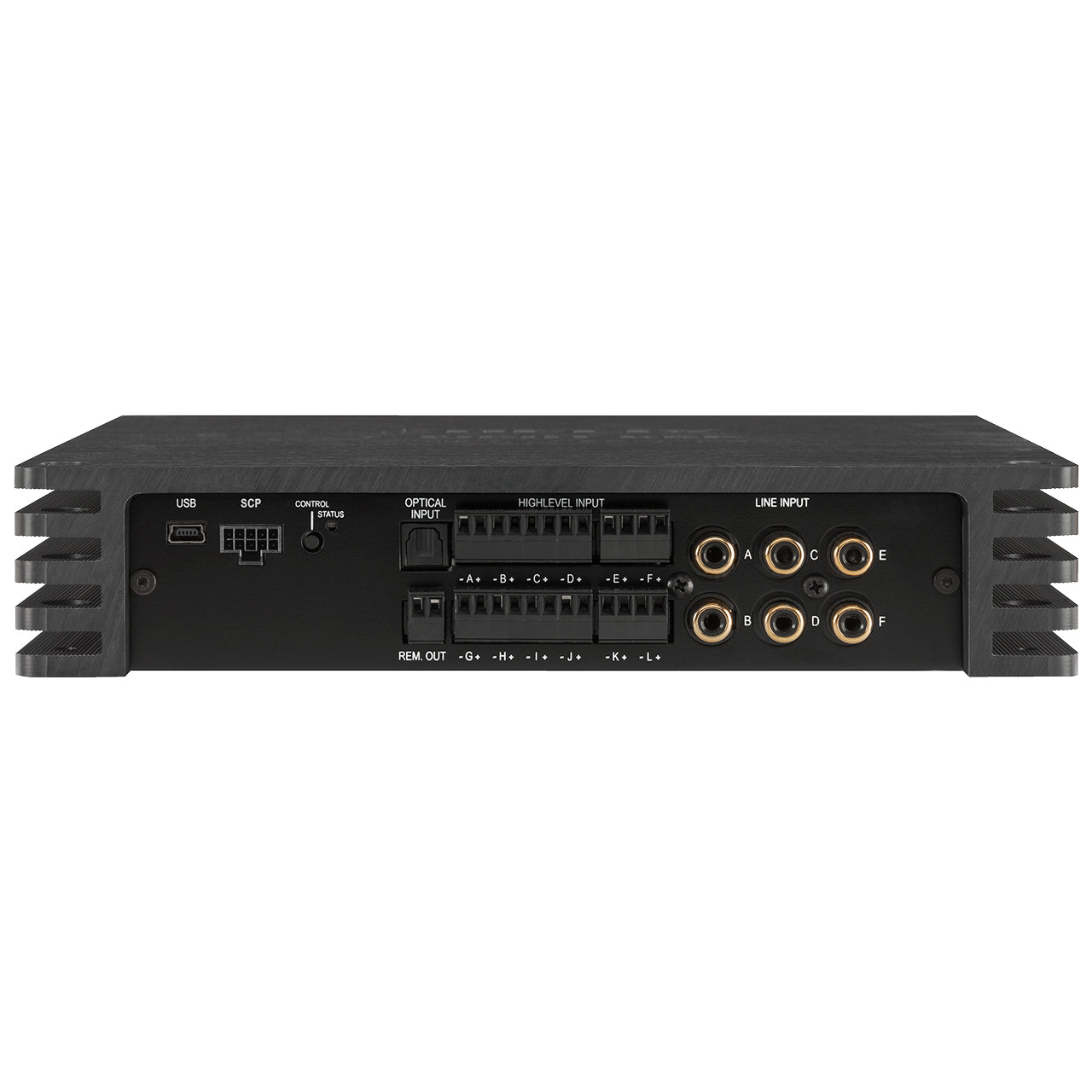

Inputs: 6 x RCA / Cinch, 12 x High-Level Speaker Input, 1 x Optical SPDIF (12 - 96 kHz), 1 x Remote In
Outputs: 12 x Speaker Output, 2 x RCA / Cinch, 2 x Remote Out
Additional Features: HEC Slot, ADEP.3 Circuit, Smart Control Port, Auto Remote Switch, 32 Bit CoProcessor
