The multi-tool in its ultimate form
The V EIGHT DSP ULTIMATE represents the next evolutionary leap of HELIX’s renowned all-in-one solution. Every aspect of this 8-channel amplifier with integrated 14-channel DSP has been reimagined, refined, and elevated – from signal processing and connectivity to outstanding performance and sound quality. This isn’t just an upgrade – it’s the embodiment of ambition and a commitment to redefining what multi-channel DSP amplifiers can achieve.
Cutting-edge amplifier technology meets next-gen performance
At the heart of the V EIGHT DSP ULTIMATE is a new generation of highly efficient TI Class D technology, delivering an enormous performance boost of up to 66 % over its predecessor – coupled with further refined sound quality and maximum speaker control. With 8 x 110 Watts RMS into 4 Ohms or 4 x 110 Watts RMS into 4 Ohms + 4 x 220 Watts RMS into 2 Ohms, the V EIGHT DSP ULTIMATE delivers impressive power reserves for the most demanding speaker systems.
Thanks to its significantly increased system performance, the V EIGHT DSP ULTIMATE handles complex high-performance audio systems with ease – precisely, powerfully and dynamically
Technical data
| Power RMS ≤ 1% THD+N | |
| - @ 4 Ohms | Channel 1 - 8: 8 x 110 Watts |
| - @ 2 Ohms | Channel 5 - 8: 4 x 220 Watts |
| - @ 1 Ohm | - |
| - bridged @ 4 Ohms | - |
| - bridged @ 2 Ohms | - |
| Max. output power per channel* | Channel 1 - 8: up to 140 Watts RMS @ 4 Ohms Channel 5 - 8: up to 270 Watts RMS @ 2 Ohms |
| Amplifier technology | Class HD |
| Inputs | 6 x RCA / Cinch 12 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Remote In 1 x USB Audio |
| Input sensitivity | RCA / Cinch: 1 - 8 Volts Highlevel: 4 - 32 Volts |
| Input impedance | RCA / Cinch: 25 kOhms Highlevel: 9 - 33 Ohms with ADEP.3 |

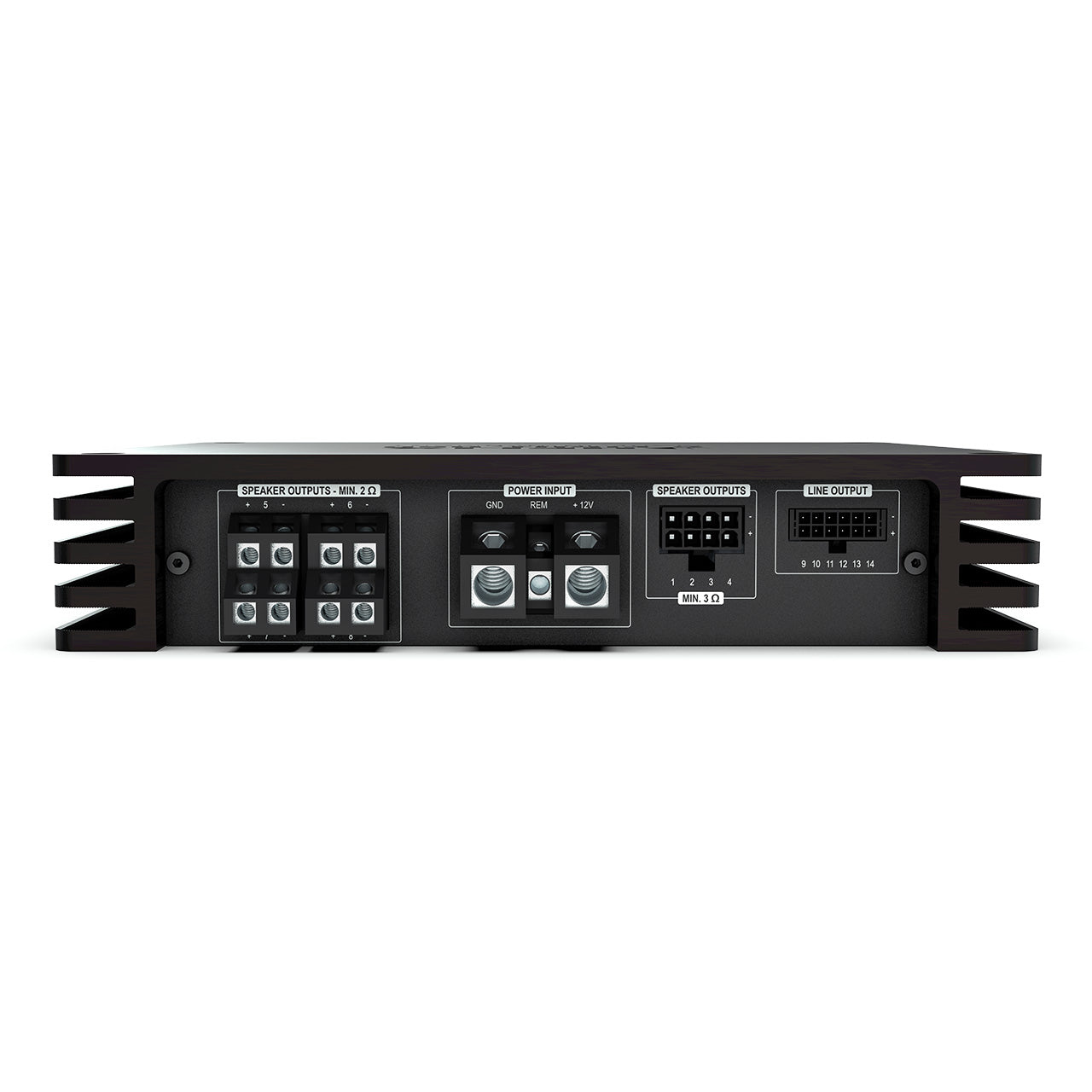

| Outputs | 8 x Speaker output 6 x RCA / Cinch 2 x Remote Out |
| Output voltage RCA / Cinch | 3 Volts |
| Frequency response | 15 Hz - 22,000 Hz |
