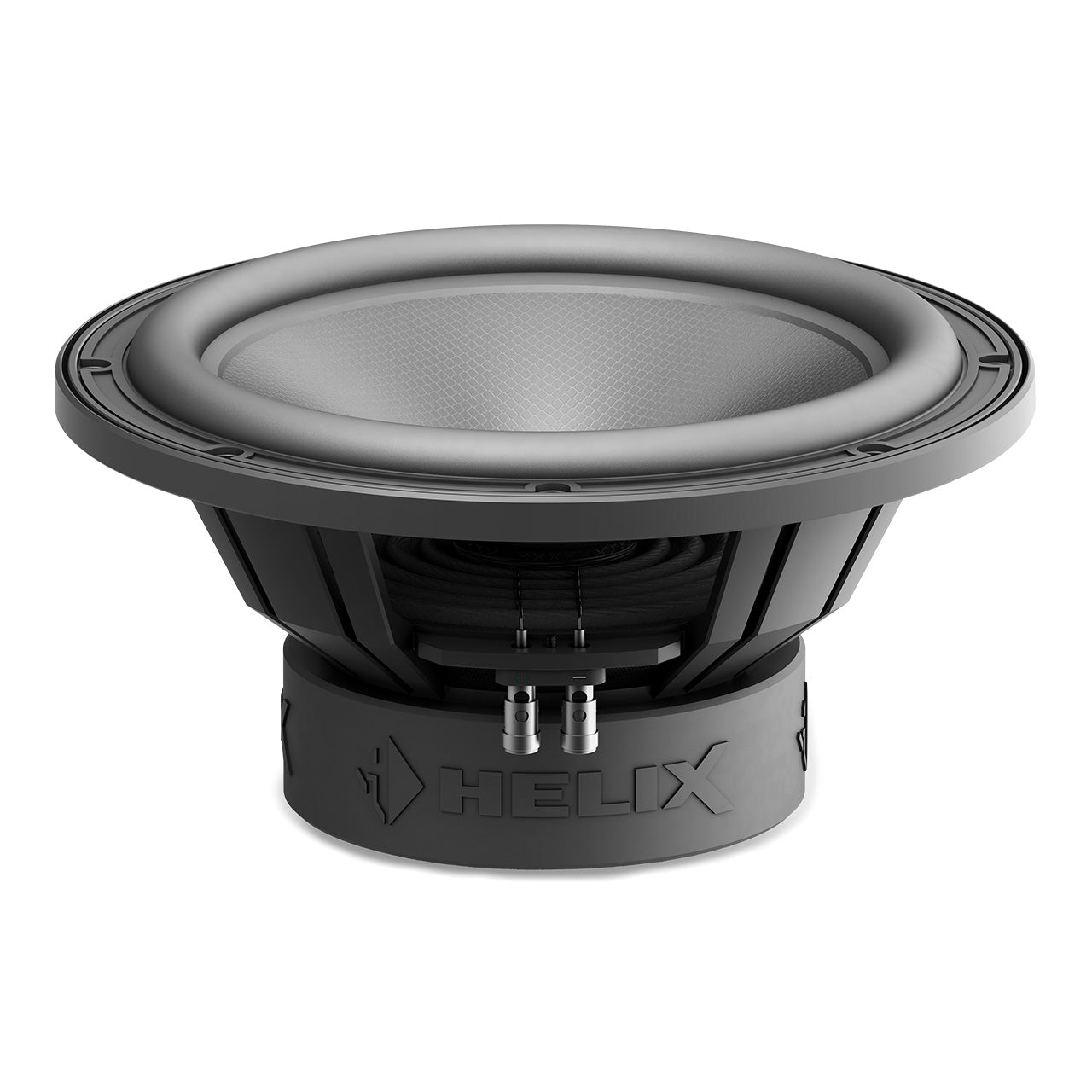

Helix IQ W12-DVC2 High-Performance Subwoofer 300mm
£434.00
Sale price
£434.00
Regular price
Skip to product information

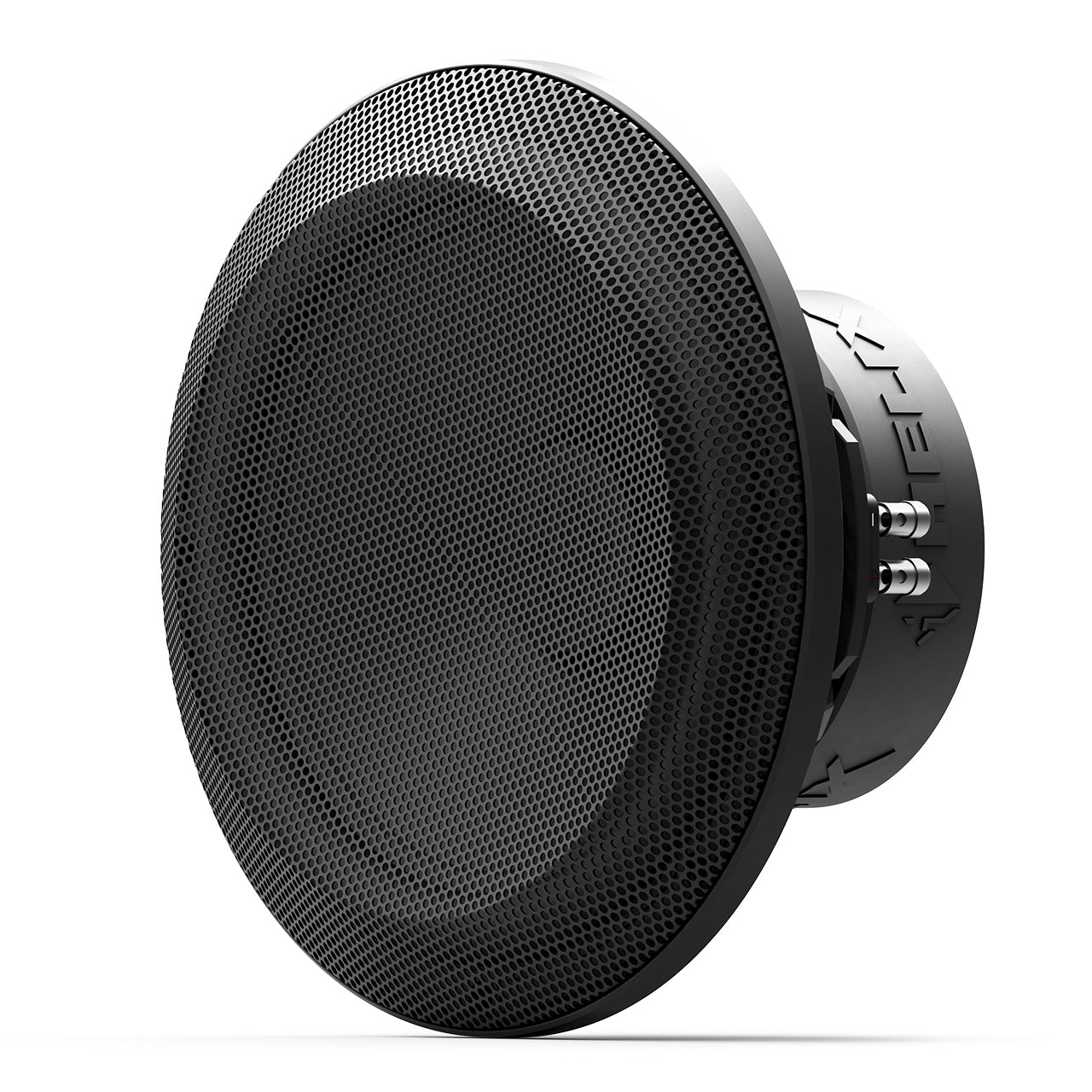

A 300mm high-performance subwoofer built for audiophiles craving powerful, precise bass. Its innovative Tuneable Mass System lets you fine-tune the moving mass, adjusting the resonant frequency and overall character of the sound. A triple-layer glass-fibre, Mylar and honeycomb diaphragm combines extreme rigidity with excellent internal damping for controlled, dynamic output. The dual 2-ohm voice coil offers flexible wiring configurations, suiting a wide range of amplifiers. A robust aluminium die-cast basket with integrated protective grille ensures lasting, resonance-free performance.
Type: Single chassis subwoofer
Diameter: 300 mm
Impedance: 2 x 2 Ohm
RMS Power Handling: 750 Watt
Max Power Handling: 1500 Watt
Recommended Amplifier Power (RMS): From 300 Watt
Voice Coil Diameter: 63 mm
Voice Coil Winding Width: 34 mm
Max Linear Cone Excursion (Xmax): +/- 12 mm
Cone Material: Glass-fibre Mylar honeycomb
Basket Material: Aluminium die-cast
DC Resistance (Re): 2 x 1.9 Ohm
Resonant Frequency (Fs): 36 Hz (no TM), 32 Hz (+1 TM), 29 Hz (+2 TM), 27 Hz (+3 TM)
Mechanical Q Factor (Qms): 5.37
Electrical Q Factor (Qes): 0.53 (no TM), 0.59 (+1 TM), 0.64 (+2 TM), 0.69 (+3 TM)
Total Q Factor (Qts): 0.48 (no TM), 0.53 (+1 TM), 0.57 (+2 TM), 0.62 (+3 TM)
Compliance (Cms): 96 μm/N
Equivalent Volume (Vas): 35 L
Force Factor (B*I): 18.1 Tm
Sensitivity (SPL): 90 dB @ 2.83 V / 1 m, 87 dB @ 1 W / 1 m
Cone Area (Sd): 515 cm²
Moving Mass (Mms): 199 g (no TM), 252 g (+1 TM), 305 g (+2 TM), 358 g (+3 TM)
Mechanical Resistance (Rms): 8.5 kg/s
External Diameter: 327.1 mm
Mounting Diameter: 281 mm
Mounting Depth: 144.7 mm
Recommended Sealed Enclosure Volume: 33 L (no TM), 47 L (+1 TM), 65 L (+2 TM), 115 L (+3 TM)
Recommended Ported Enclosure Volume: 70 L (no TM), 90 L (+1 TM), 110 L (+2 TM), 140 L (+3 TM)
