Helix DSP Pro Mk3 10 Channel
Helix DSP Pro Mk3 10 Channel
The next evolutionary stage of the DSP PRO
Familiar looks with the (r)evolution inside. The successor of the DSP PRO comes in the renowned, elegant HELIX design, but is equipped with the latest technology: Unrivalled High-Res sound quality thanks to twice as much processing power compared to its predecessor, ACO Platform for an extended feature set as well as VCP (Virtual Channel Processing) for easy configuration of highly complex sound systems. Additionally, there are the revised highlevel inputs with three-stage input sensitivity adjustment and extended voltage range up to max. 32 Volts as well as our extremely compact and solid Smart Control Port. One thing´s for sure: Due to featuring all these state-of-the-art technologies, the DSP PRO MK3 without a doubt belongs to the A-list of signal processors.
State-of-the-art Technology and TwinDSP power for the ultimate High-Res sound experience
The DSP PRO MK3 is equipped with two of the most powerful 64-Bit audio signal processors from Analog Devices. The incredible processing power of 2.4 billion MAC operations per second, combined with the high sampling rate of 96 kHz (resulting in an audio bandwidth of over 40 kHz) and AKM Velvet Sound A/D and D/A signal converters, ensure outstanding sound in High-Res quality
Technical data

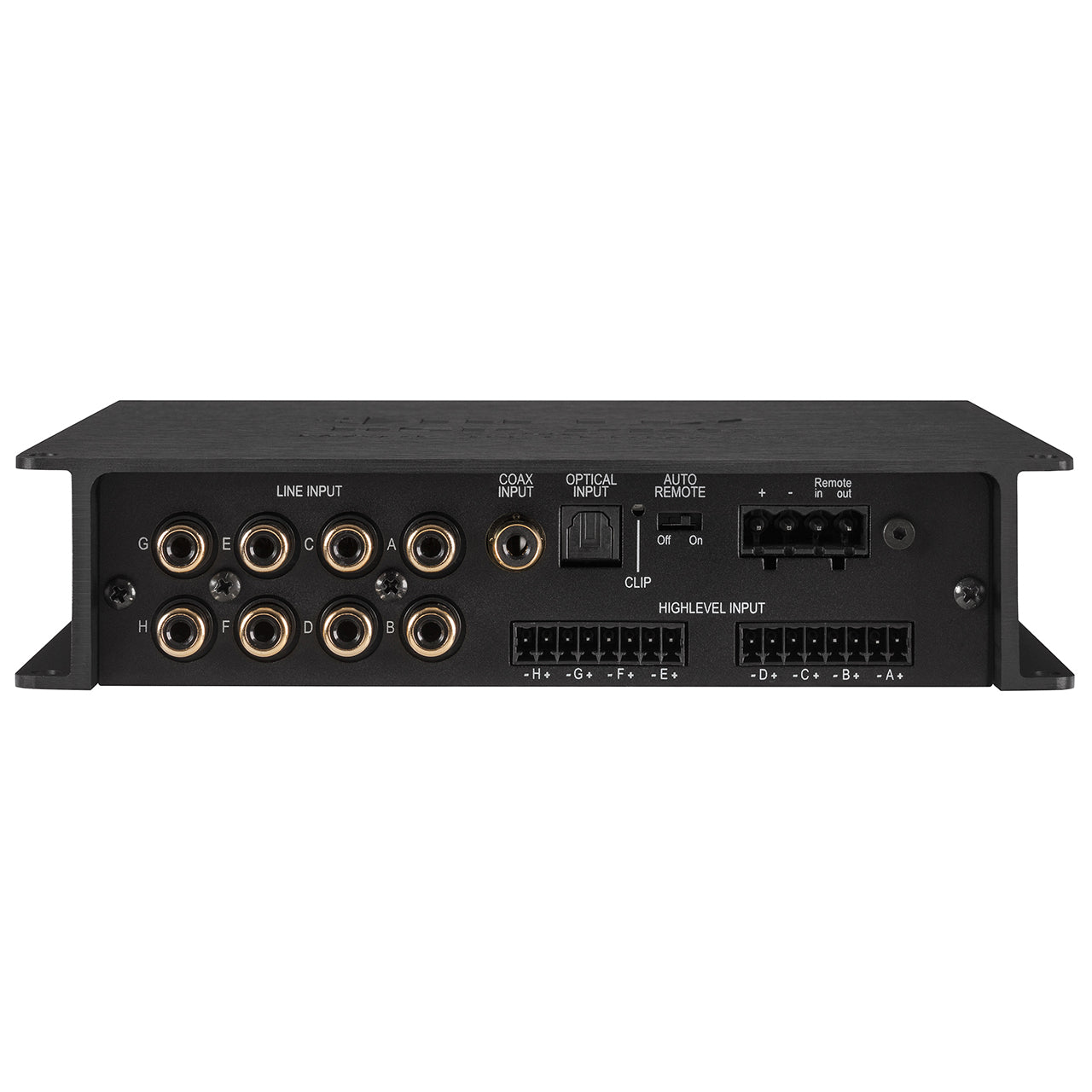

| Inputs | 8 x RCA / Cinch 8 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Coax SPDIF (12 - 192 kHz) 1 x Remote In |
| Input sensitivity | RCA / Cinch 2 / 3 / 4 Volts Highlevel 4 / 7 / 11 or 12 / 22 / 32 Volts |

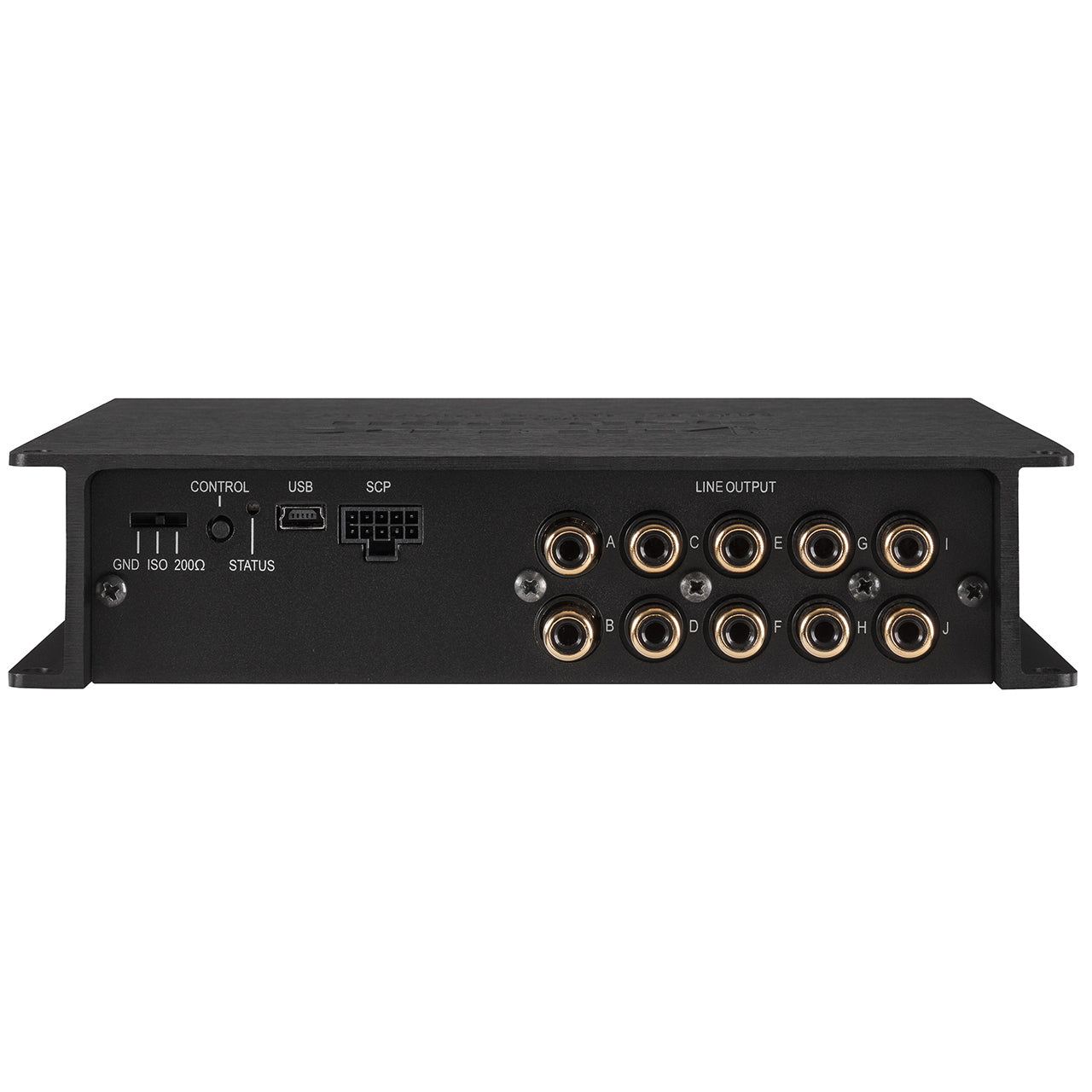

| Outputs | 10 x RCA / Cinch 1 x Remote Out |
| Output voltage | 8 Volts |
| Frequency response | 10 Hz - 44,000 Hz |
| DSP resolution | 64 Bit |
| DSP power | 2 x 295 MHz (2.4 billion MAC operations/second) |
| Sampling rate | 96 kHz |
| DSP type | 2 x Audio signal processor |
| Signal converters | A/D: AKM Velvet Sound 32 Bit D/A: AKM Velvet Sound 32 Bit |
| Signal-to-noise ratio digital input | 116 dB (A-weighted) |
| Signal-to-noise ratio analog input | 111 dB (A-weighted) |
| Total harmonic distortion (THD+N) digital input | < 0.0005 % |
| Total harmonic distortion (THD+N) analog input | < 0.001 % |
| IM distortion (IMD) digital input | < 0.002 % |
| IM distortion (IMD) analog input | < 0.004 % |
| Crosstalk | > 90 dB |
| Operating voltage | 9.6 - 17 Volts (max. 5 sec. down to 6 Volts) |
| Power rating | DC 12 V ⎓ 3 A max. |
| Current draw | 650 mA |
| Max. remote output current | 500 mA |
| Additional features | HEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch |
| Dimensions (H x W x D) | 40 x 177 x 150 mm / 1.58 x 6.97 x 5.91“ |
