HELIX DSP PRO MK3 10-Channel Digital Signal Processor 96kHz
£799.00
Sale price
£799.00
Regular price
Skip to product information
This 10-channel signal processor packs twin 64-bit DSPs with 2.4 billion MAC operations per second for high-resolution audio up to 40kHz bandwidth. Its ACO coprocessor platform handles automated equalisation via TuneEQ, augmented bass processing, and RealCenter for a spacious soundstage. The unit offers extensive connectivity with 8 high-level, 8 RCA, optical, coaxial, and HEC expansion inputs, plus 10 line outputs. Configuration is straightforward through the intuitive DSP PC-Tool 5 software, making it a serious upgrade for any car audio system.

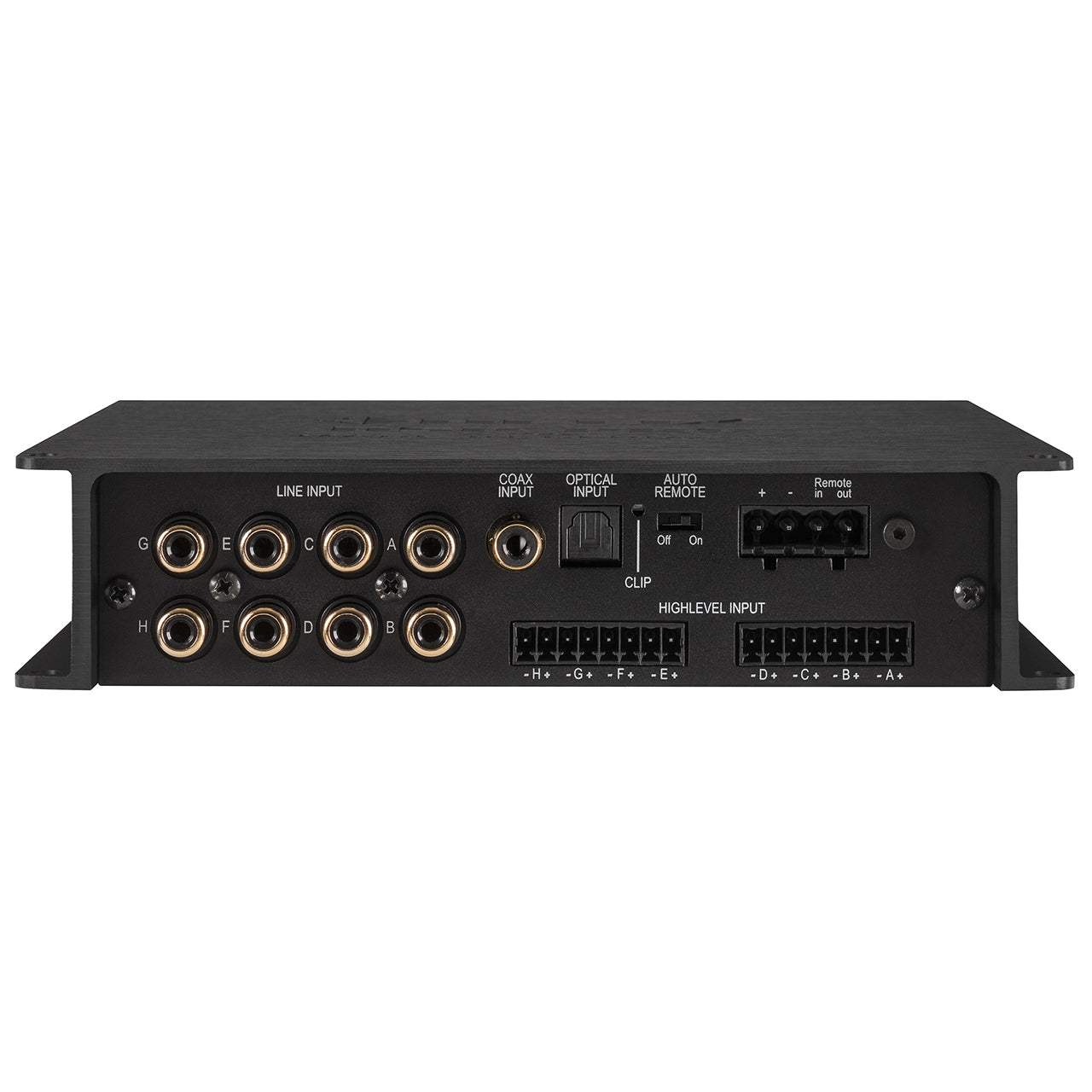

Number of Inputs: 8 x RCA, 8 x High-Level, 1 x Optical SPDIF, 1 x Coaxial SPDIF, 1 x HEC Slot, 1 x Remote In

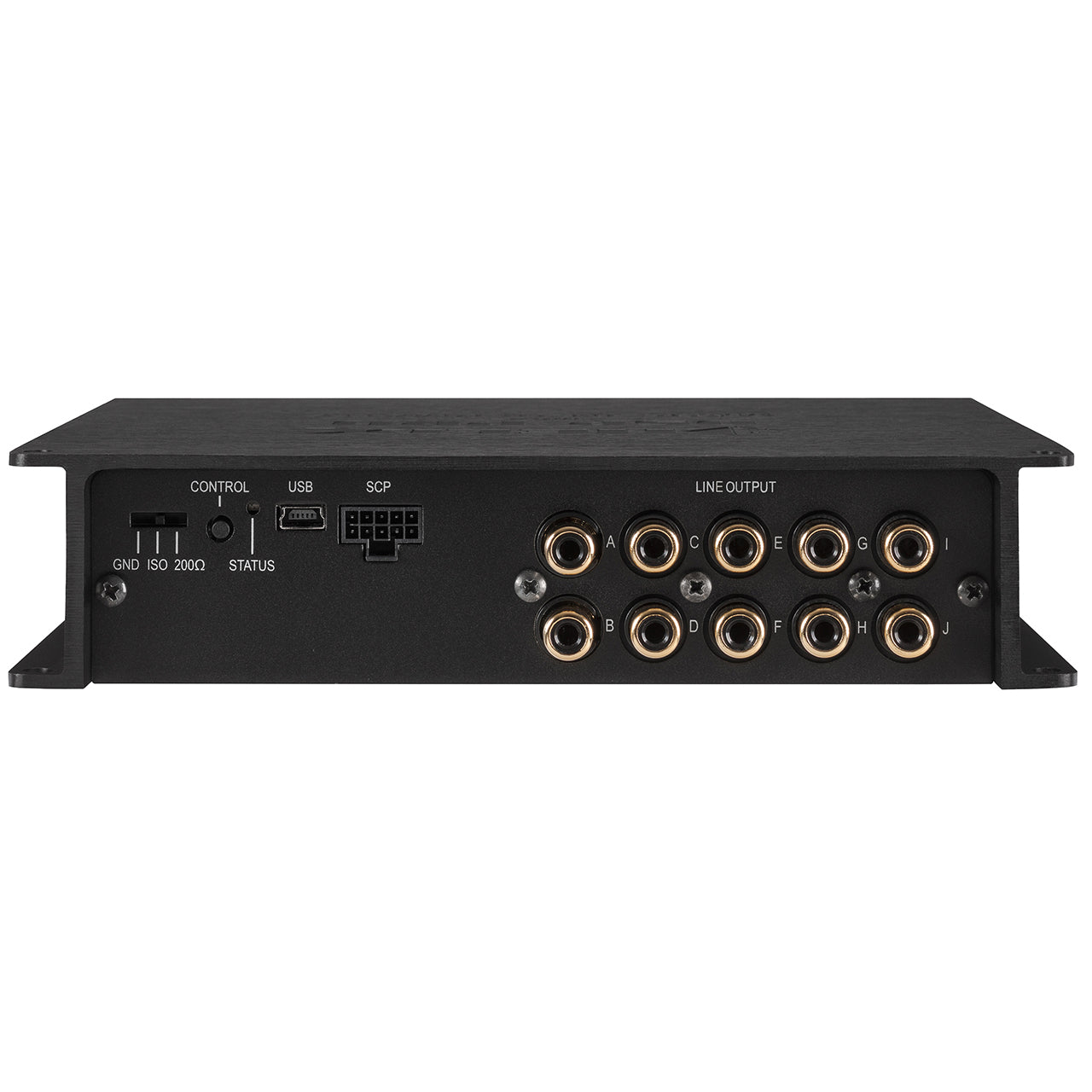

Number of Outputs: 10 x RCA, 1 x Remote Out
Signal Path Resolution: 96 kHz / 32 Bit
DSP Resolution: 64 Bit
DSP Processing Power: 2 x 295 MHz (2.4 billion MAC operations/second)
Output Voltage: 8 V
Frequency Response: 10 Hz - 44,000 Hz
Sample Rate: 96 kHz
Signal-to-Noise Ratio (Digital Input): 116 dB (A-weighted)
Signal-to-Noise Ratio (Analog Input): 111 dB (A-weighted)
THD+N (Digital Input): < 0.0005%
THD+N (Analog Input): < 0.001%
Operating Voltage: 9.6 - 17 V (down to 6 V for 5 seconds)
Power Consumption: 12 V ⎓ 3 A max
Current Draw: 650 mA
Max Remote Output Current: 500 mA
Dimensions (H x W x D): 40 x 177 x 150 mm
Weight: 0.65 kg
Input Sensitivity (RCA): 2 / 3 / 4 V
Input Sensitivity (High-Level): 4 / 7 / 11 V or 12 / 22 / 32 V
AD/DA Converter: AKM Velvet Sound 32 Bit
Advanced Features: ACO Platform, ADEP.3, Auto Remote Switch, HEC Slot, High-Res Audio, Integrated DSP, Smart Control Port, Start-Stop Capable, Power Save Mode, Ground Lift Switch
