HELIX DSP MINI MK2 6-Channel Digital Signal Processor 96kHz
£399.00
Sale price
£399.00
Regular price
Skip to product information
The DSP MINI MK2 packs a powerful 64-Bit audio DSP and BurrBrown converters into a compact chassis, delivering high-resolution sound with a bandwidth exceeding 40 kHz. Its 96 kHz sampling rate and 6-Volt output voltage provide exceptional clarity and headroom for your car audio system. Advanced features like the ACO platform with 32-Bit CoProcessor enable proprietary sound effects including Augmented Bass Processing and RealCenter for immersive staging. The Smart Control Port simplifies installation and power management, while the ADEP.3 circuit ensures seamless integration with modern factory radios.

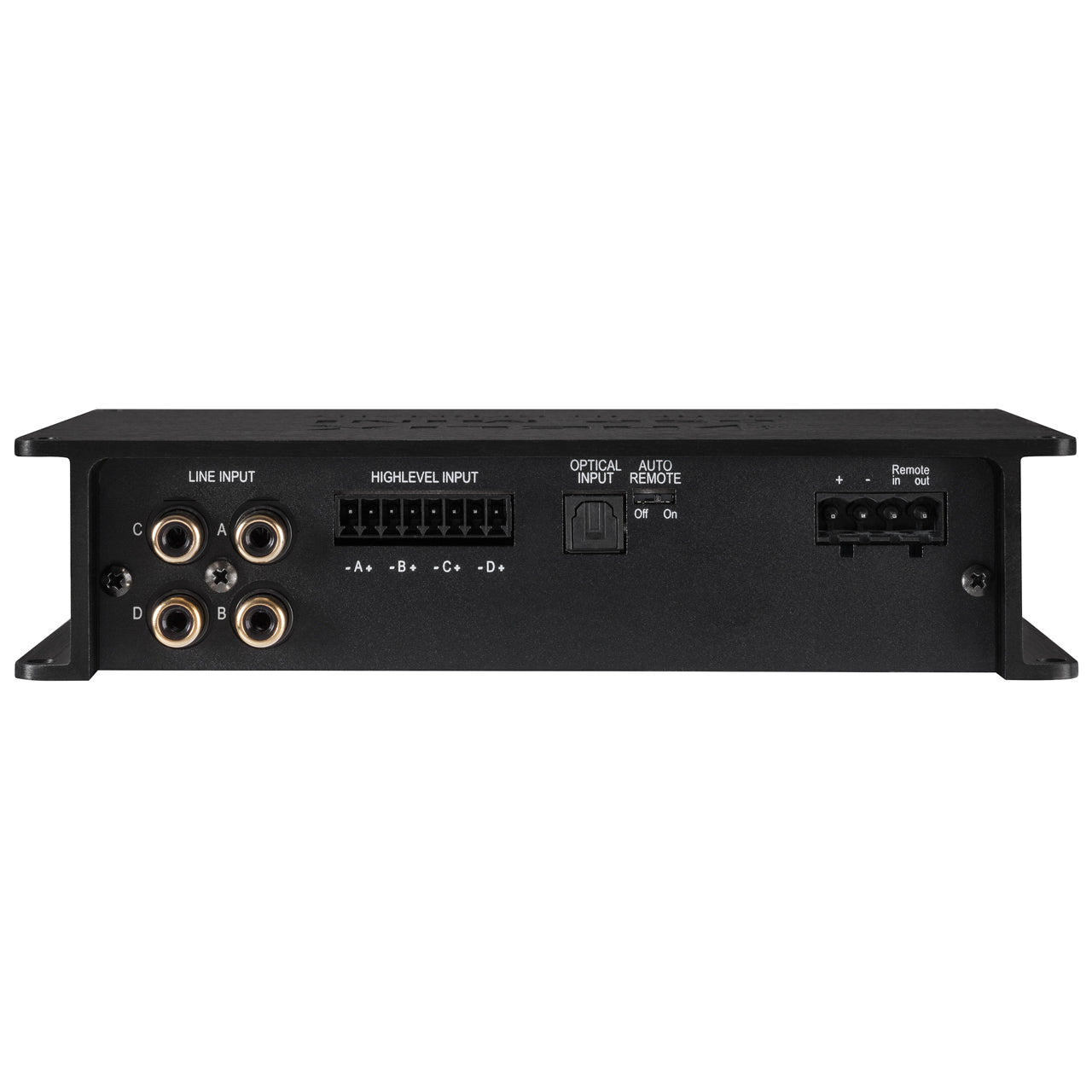

Inputs: 4 x RCA/Cinch, 4 x Highlevel speaker input, 1 x Optical SPDIF (12-96 kHz), 1 x Remote In
Outputs: 6 x RCA/Cinch, 1 x Remote Out
Output Voltage: 6 Volts
Frequency Response: 10 Hz - 44,000 Hz
DSP Resolution: 64 Bit
DSP Power: 295 MHz (1.2 billion MAC operations/second)
Sampling Rate: 96 kHz
Signal Converters: A/D: BurrBrown, D/A: BurrBrown
Signal-to-Noise Ratio (Digital Input): 112 dB (A-weighted)
Total Harmonic Distortion (Digital Input): < 0.0008 %
Operating Voltage: 9.6 - 17 Volts (max. 5 sec. down to 6 Volts)
Current Draw: < 480 mA
Dimensions (H x W x D): 40 x 177 x 104 mm
Weight: 0.86 kg
