HELIX DSP.3S 8-Channel Digital Signal Processor 64-Bit
£489.00
Sale price
£489.00
Regular price
Skip to product information
The HELIX DSP.3S redefines the standard for digital signal processors with a 64-bit audio DSP from the latest Sigma350 generation and native 96 kHz processing. Its Advanced 32-bit CoProcessor (ACO) platform enables rapid switching between up to ten sound setups and delivers effects like Augmented Bass Processing and RealCenter. The smart high-level input with ADEP.3 circuit, along with optical and coaxial digital inputs, ensures seamless integration with factory radios. Configuration is straightforward via the intuitive DSP PC-Tool software, allowing precise audio tuning for complex system setups.

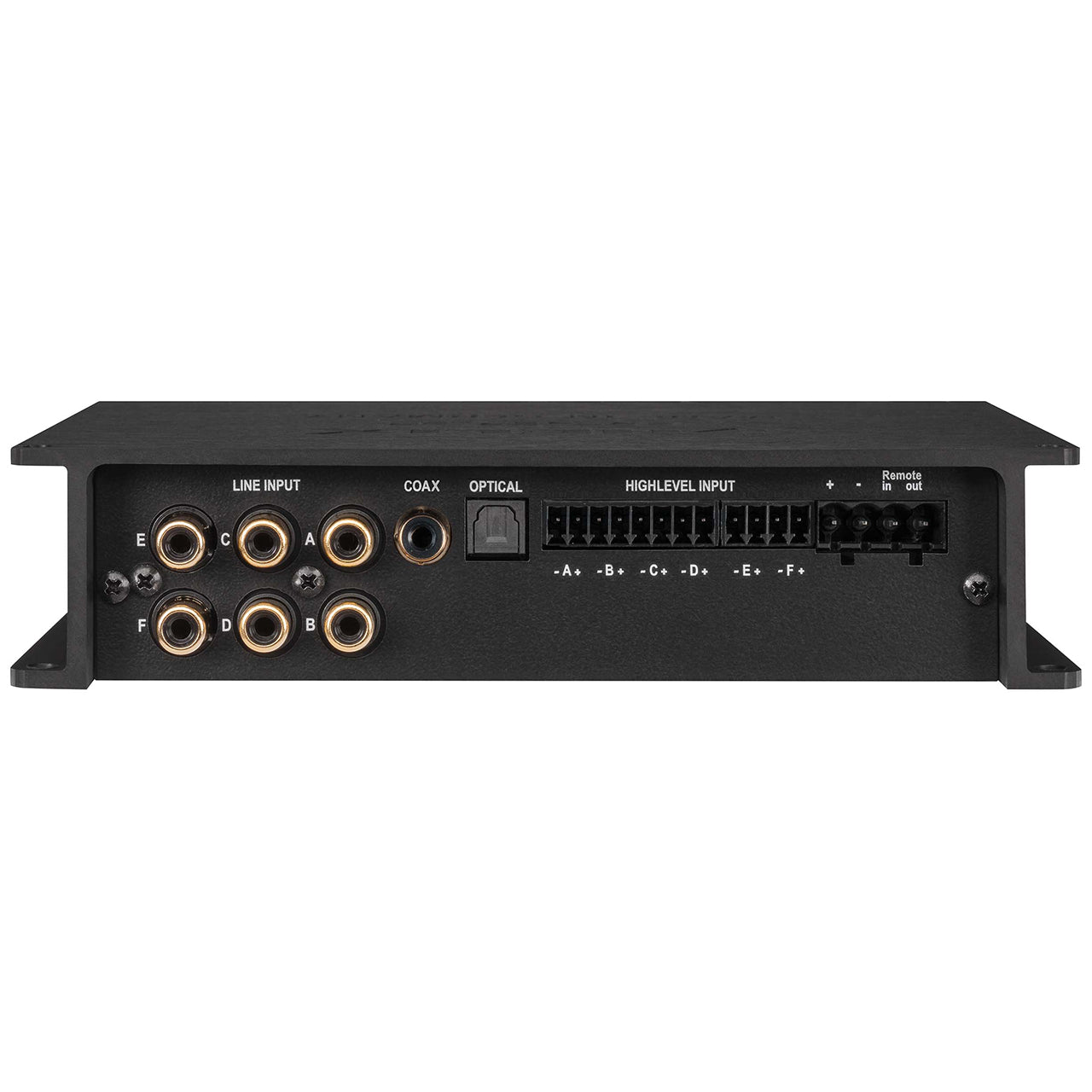

Inputs: 6 x RCA, 6 x High-Level Speaker Input, 1 x Optical SPDIF (12-96 kHz), 1 x Coaxial SPDIF (12-192 kHz), 1 x Remote In
Input Sensitivity: RCA 2-4 V, High-Level 5-11 V
Outputs: 8 x RCA, 1 x Remote Out
Output Voltage: 6 V
Frequency Range: 10 Hz - 44,000 Hz
DSP Resolution: 64 Bit
DSP Processing Power: 295 MHz (1.2 Billion MAC Operations/Second)
Sampling Rate: 96 kHz
Signal-to-Noise Ratio (Digital Input): 112 dB (A-weighted)
Signal-to-Noise Ratio (Analog Input): 107 dB (A-weighted)
THD+N (Digital Input): < 0.0008%
THD+N (Analog Input): < 0.002%
Operating Voltage: 9.6 - 17 V (min. 6 V for 5 sec)
Current Consumption: < 450 mA
Max Remote Output Current: 500 mA
Dimensions (H x W x D): 40 x 177 x 120 mm
Weight: 1 kg
Signal Converters: A/D: BurrBrown, D/A: BurrBrown
HELIX DSP.3S 8-Channel Digital Signal Processor 64-Bit
£489.00
Sale price
£489.00
Regular price
Inputs: 6 x RCA, 6 x High-Level Speaker Input, 1 x Optical SPDIF (12-96 kHz), 1 x Coaxial SPDIF (12-192 kHz), 1 x Remote In
Input Sensitivity: RCA 2-4 V, High-Level 5-11 V
Outputs: 8 x RCA, 1 x Remote Out
Output Voltage: 6 V
Frequency Range: 10 Hz - 44,000 Hz
DSP Resolution: 64 Bit
DSP Processing Power: 295 MHz (1.2 Billion MAC Operations/Second)
Sampling Rate: 96 kHz
Signal-to-Noise Ratio (Digital Input): 112 dB (A-weighted)
Signal-to-Noise Ratio (Analog Input): 107 dB (A-weighted)
THD+N (Digital Input): < 0.0008%
THD+N (Analog Input): < 0.002%
Operating Voltage: 9.6 - 17 V (min. 6 V for 5 sec)
Current Consumption: < 450 mA
Max Remote Output Current: 500 mA
Dimensions (H x W x D): 40 x 177 x 120 mm
Weight: 1 kg
Signal Converters: A/D: BurrBrown, D/A: BurrBrown
