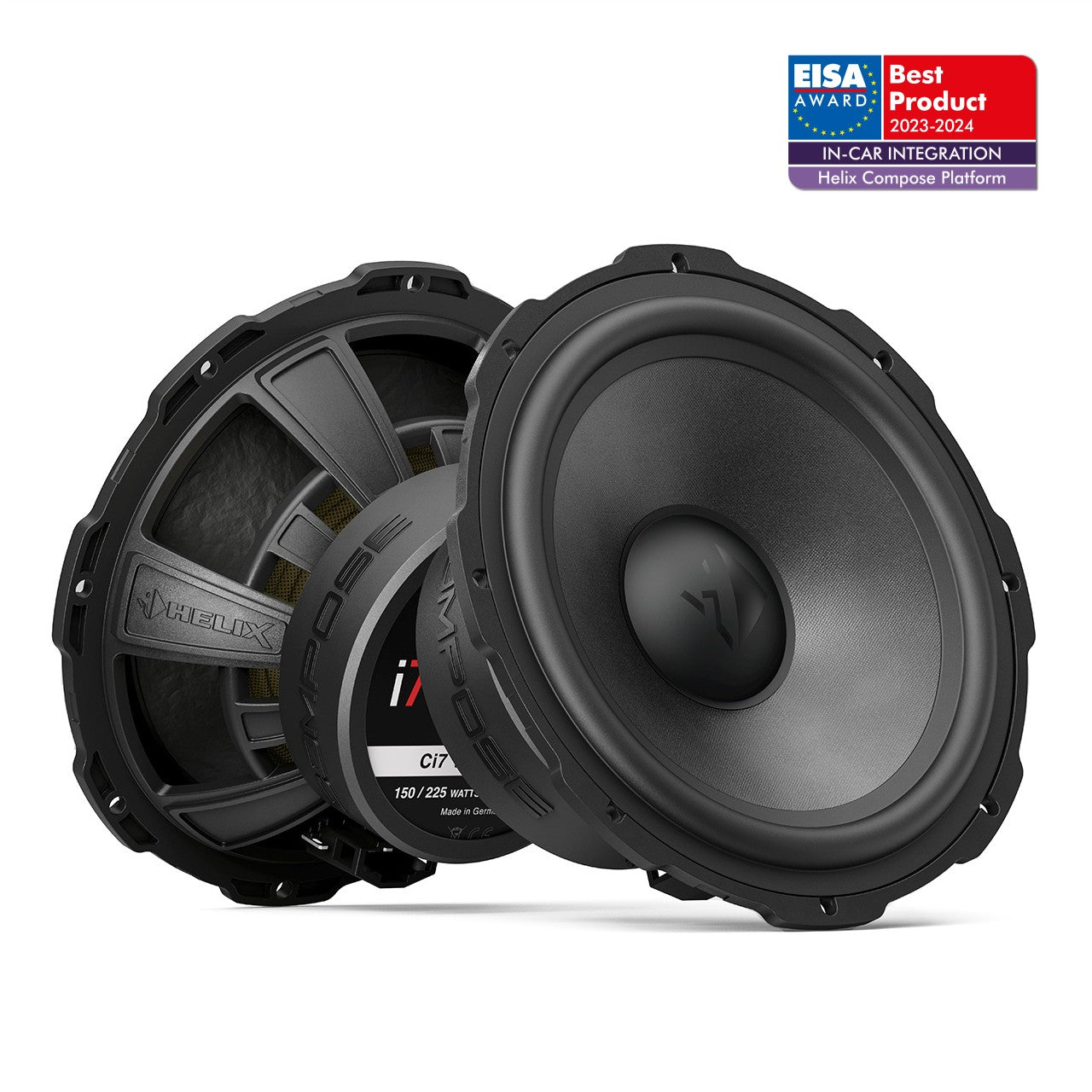

HELIX Ci7 W165FM-S3 165mm High-End Midbass Speaker 3 Ohm
£349.00
Sale price
£349.00
Regular price
Skip to product information
This high-end 165mm midbass driver from the HELIX COMPOSE i7 series delivers exceptional sound quality with its handcrafted UHD paper membrane. The 3-ohm impedance maximises amplifier efficiency, while the glass-bead-reinforced polymer composite basket minimises resonance for clean, dynamic audio. ProConnect terminals ensure a secure, polarity-protected connection, and FlexMount165 compatibility allows seamless integration into a wide range of vehicles. Made in Germany, it brings premium BRAX-influenced engineering to your car audio system.
Speaker Type: Midbass Driver
Size: 165 mm
Impedance: 3 Ohm
RMS Power Handling: 150 Watts
Max Power Handling: 225 Watts
Frequency Response: 50 Hz - 3,500 Hz
Sensitivity: 92 dB @ 2.83V/1m
DC Resistance (Re): 2.9 Ohm
Resonant Frequency (Fs): 60 Hz
Voice Coil Diameter: 37 mm
Cone Material: UHD (Ultra High Damping) Paper
Basket Material: Glass-Bead Reinforced Polymer Composite
Surround Material: Rubber
Mounting Diameter: 142 mm
Mounting Depth: 65.8 mm
Overall Diameter: 165 mm
Terminal Type: ProConnect
FlexMount Compatible: Yes (FlexMount165)
Origin: Made in Germany
