HELIX Ci7 T20FM-SC Silk Dome Tweeter 20mm 4 Ohm
£349.00
Sale price
£349.00
Regular price
Skip to product information

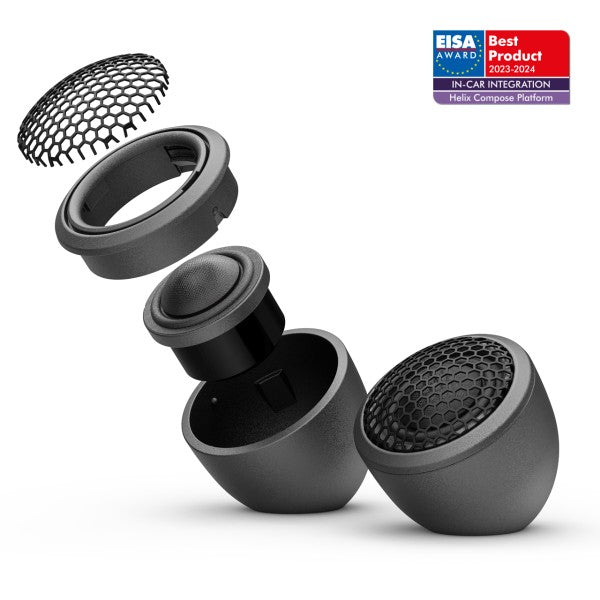

This high-end 20mm silk dome tweeter from the HELIX COMPOSE i7 series delivers a brilliantly smooth treble response thanks to its fine-meshed dome with visco-elastic Acronal coating. The integrated dampened coupling volume and pure lamb's wool enable a low resonance frequency for deep acoustic coupling. Its sturdy aluminium housing and compact design make it versatile for various installation demands, with flush mount and angle mount pods included. The FlexMount20 system allows for car-specific installation in the original mounting position, while optional WireKits provide plug-and-play connectivity to the original wiring harness.
Type: Tweeter
Diameter: 20 mm
Impedance: 4 Ohm
DC Resistance: 3.4 Ohm
Frequency Response: 1,500 Hz - 30,000 Hz
Resonance Frequency: 950 Hz
Sensitivity: 91.0 dB @ 2.83V/1m
Voice Coil Diameter: 20 mm
Cone Material: Silk dome with coupling volume
Outer Diameter: 32 mm
Installation Diameter: 27.2 mm
Installation Depth: 19 mm
Housing Material: Aluminium
Magnet Type: Neodymium
Mounting System: FlexMount20
Compatibility: FlexMount20, WireKits
Country of Origin: Germany
