HELIX Ci5 M80FM-S3 80mm Advanced Midrange Speaker
£174.00
Sale price
£174.00
Regular price
Skip to product information
The HELIX COMPOSE Ci5 M80FM-S3 is an 80mm audiophile midrange driver designed for high-quality three-way car audio systems. Its silicon-coated paper cone delivers exceptionally natural and accurate midband reproduction, while the powerful push-pull neodymium magnet system ensures high efficiency and low distortion. The compact polymer basket and FlexMount technology allow for flexible installation even in tight OEM spaces, and the FlexConnect terminal provides a secure, fail-safe connection.
Speaker Type: Midrange
Diameter: 80 mm
Power Handling RMS / Max: 90 / 135 Watts
Impedance: 3 Ohm
DC Resistance (Re): 3.1 Ohm
Frequency Response: 200 Hz - 6,000 Hz
Resonance Frequency (Fs): 156 Hz
Sensitivity (SPL): 92 dB @ 2.83 V / 1m
Cone Material: Silicon coated paper
Voice Coil Diameter: 20 mm
Max Linear Excursion (Xlin): +/- 2.5 mm
Outer Diameter: 78.5 mm
Installation Diameter: 69.5 mm
Installation Depth: 30.2 mm

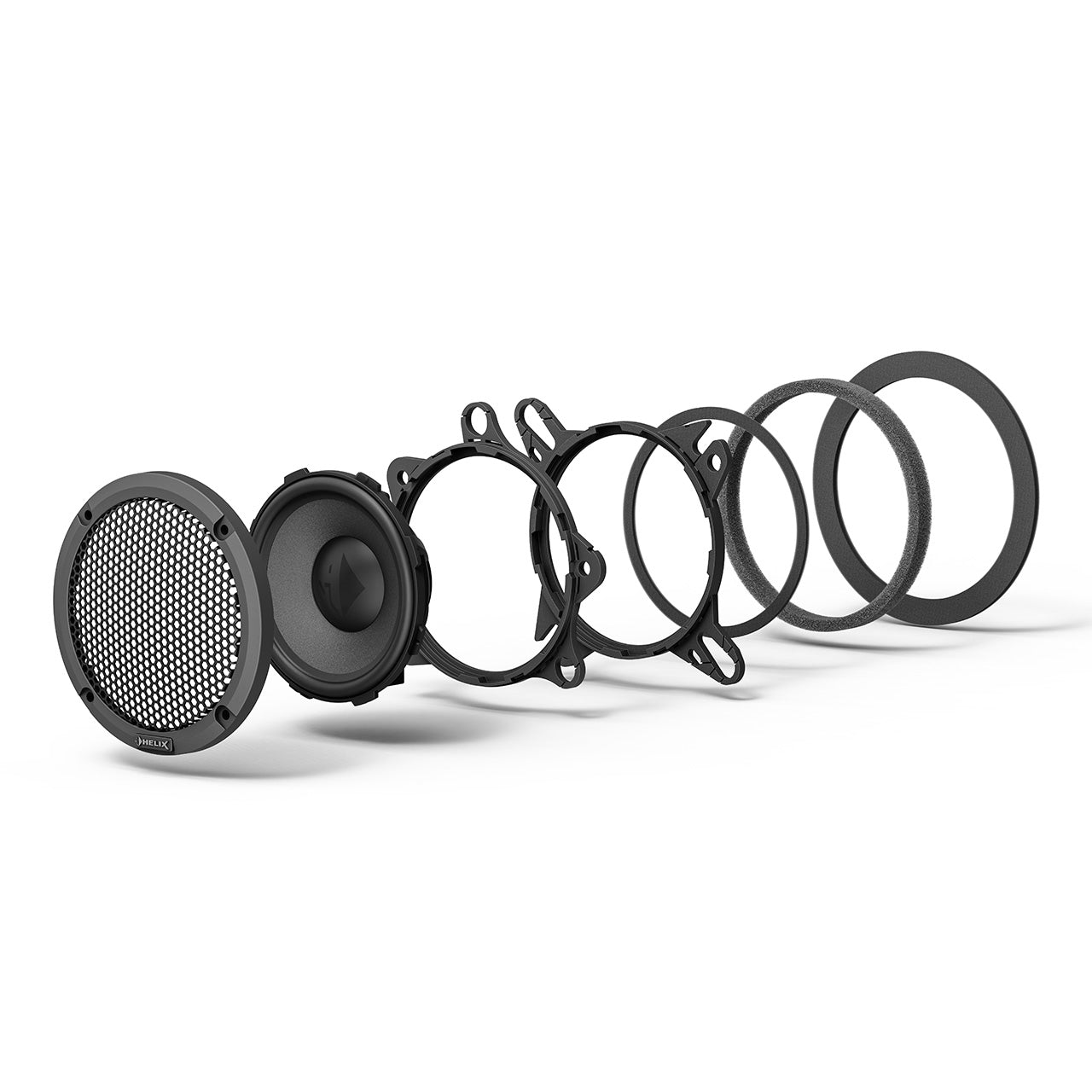

Mounting System: FlexMount80

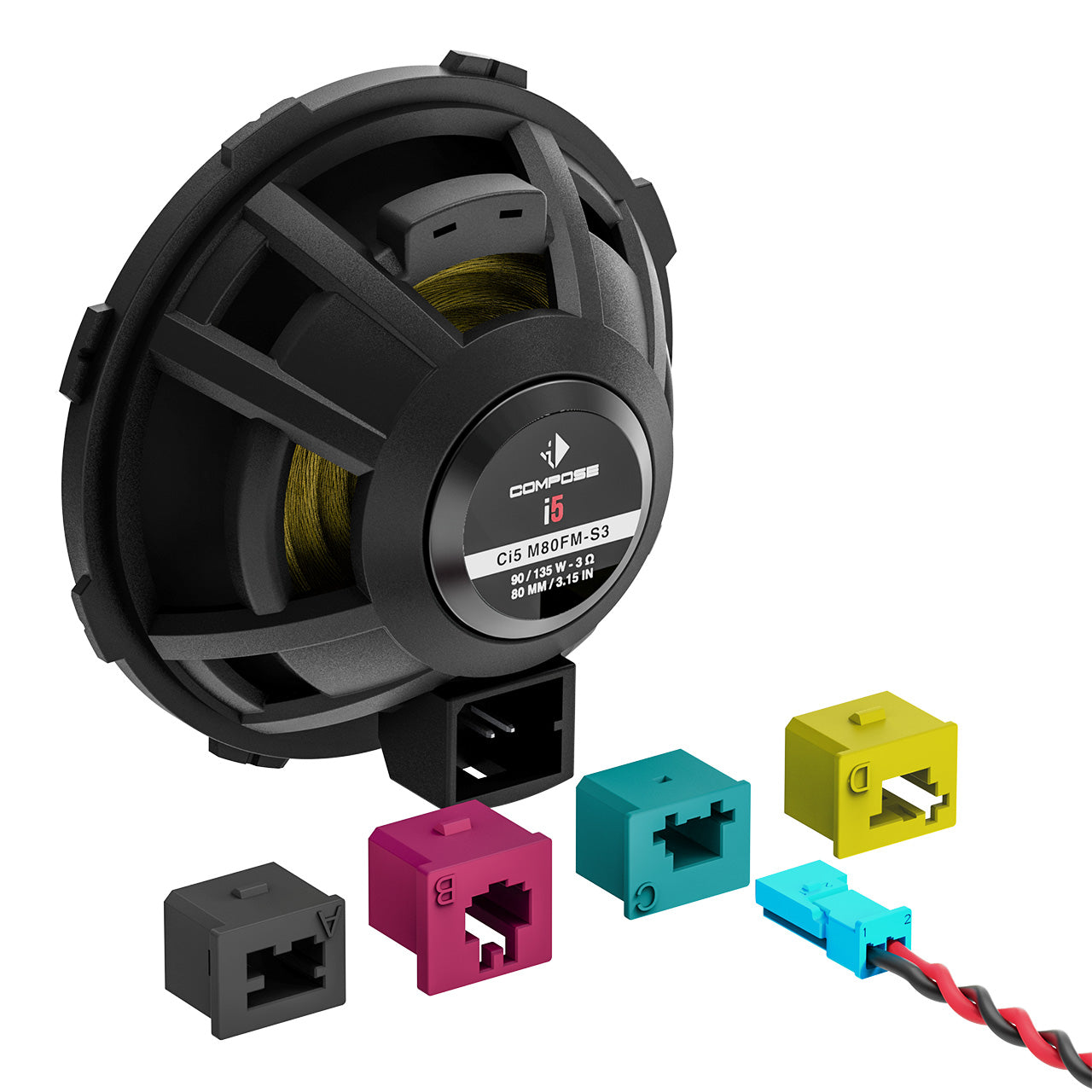

Terminal: FlexConnect
