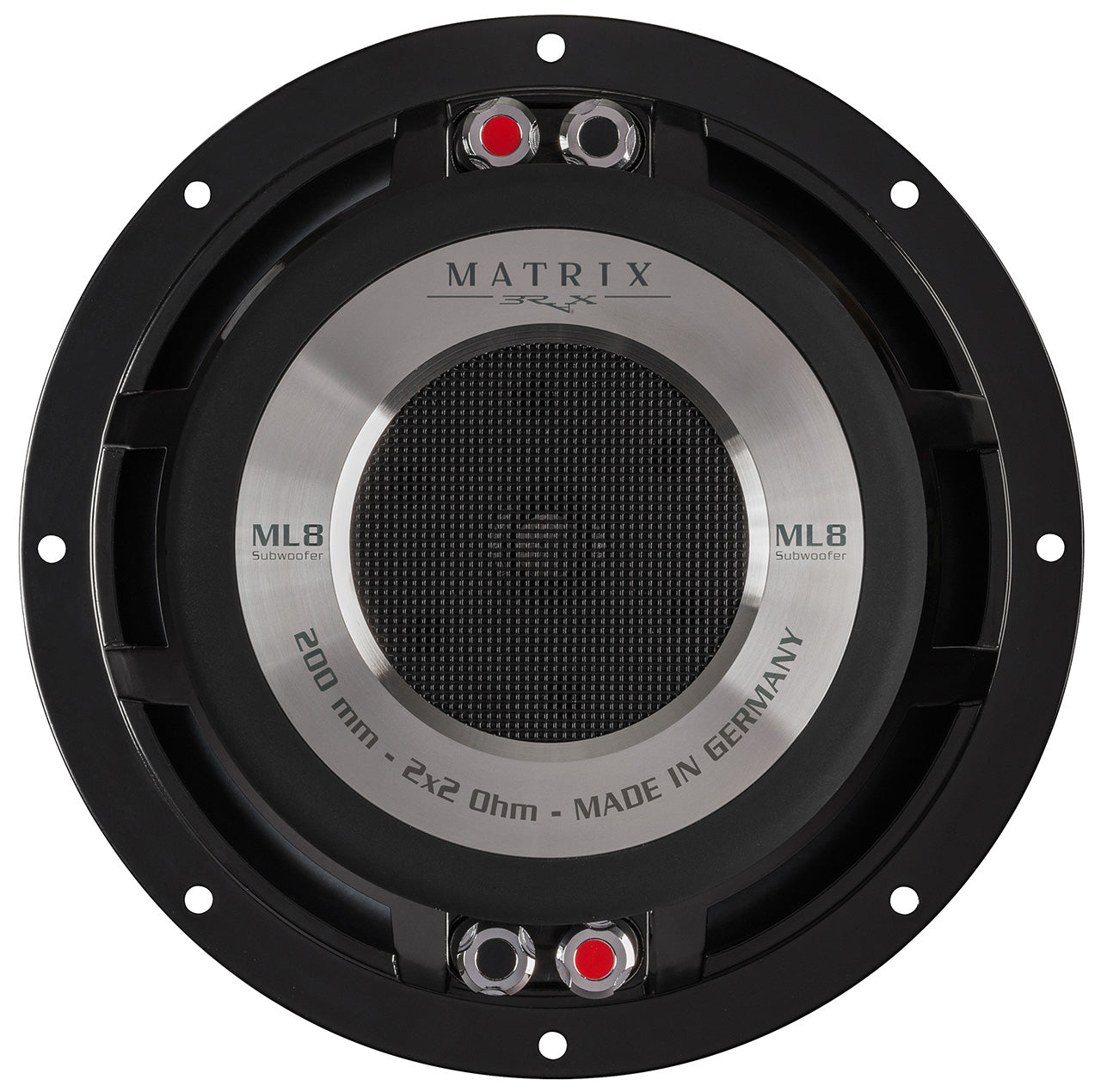

BRAX MATRIX ML8 SUB 200mm High-End Subwoofer 400W
£969.00
Sale price
£969.00
Regular price
Skip to product information
The BRAX MATRIX ML8 SUB is a 200mm high-end subwoofer engineered for uncompromising bass precision, even in the smallest enclosures. Its hand-crafted paper cone features a unique MicroSphere coating of ceramic micro hollow spheres for exceptional stiffness and damping. The dual 2-ohm voice coil with a wide winding delivers maximum linear cone excursion with minimal distortion. An aerodynamically optimised aluminium die-cast basket and a powerful magnet system ensure controlled, compression-free sound pressure at high amplifier outputs.
Power Handling RMS / Max: 400 / 800 W
Impedance: 2 x 2 Ω
DC Resistance (Re): 2 x 1.9 Ω
Resonant Frequency (Fs): 32 Hz
Mechanical Q Factor (Qms): 9.63
Electrical Q Factor (Qes): 0.60
Total Q Factor (Qts): 0.56
Compliance (Cms): 323 µm/N
Equivalent Volume (Vas): 22 L
Force Factor (B*I): 10.3 Tm
Efficiency 1W/1m (SPL): 85 dB
Cone Area (Sd): 219 cm²
Moving Mass (Mms): 83 g
Cone Material: Paper cone with MicroSphere ceramic micro hollow sphere coating
Voice Coil Diameter: 50 mm
Voice Coil Winding Width: 26.4 mm
Max Linear Cone Excursion (Xmax): +/- 9.2 mm
Outer Diameter: 222 mm
Cut-out Diameter: 191 mm
Mounting Depth: 95.6 mm
Recommended Sealed Enclosure Volume (Optimal): 17 L
Recommended Sealed Enclosure Volume (Minimum): 10 L
Weight: 10.1 kg
