BRAX MATRIX ML165 PRO 165mm Carbon Fibre Midbass Speaker 4 Ohm
£1,299.00
Sale price
£1,299.00
Regular price
Skip to product information

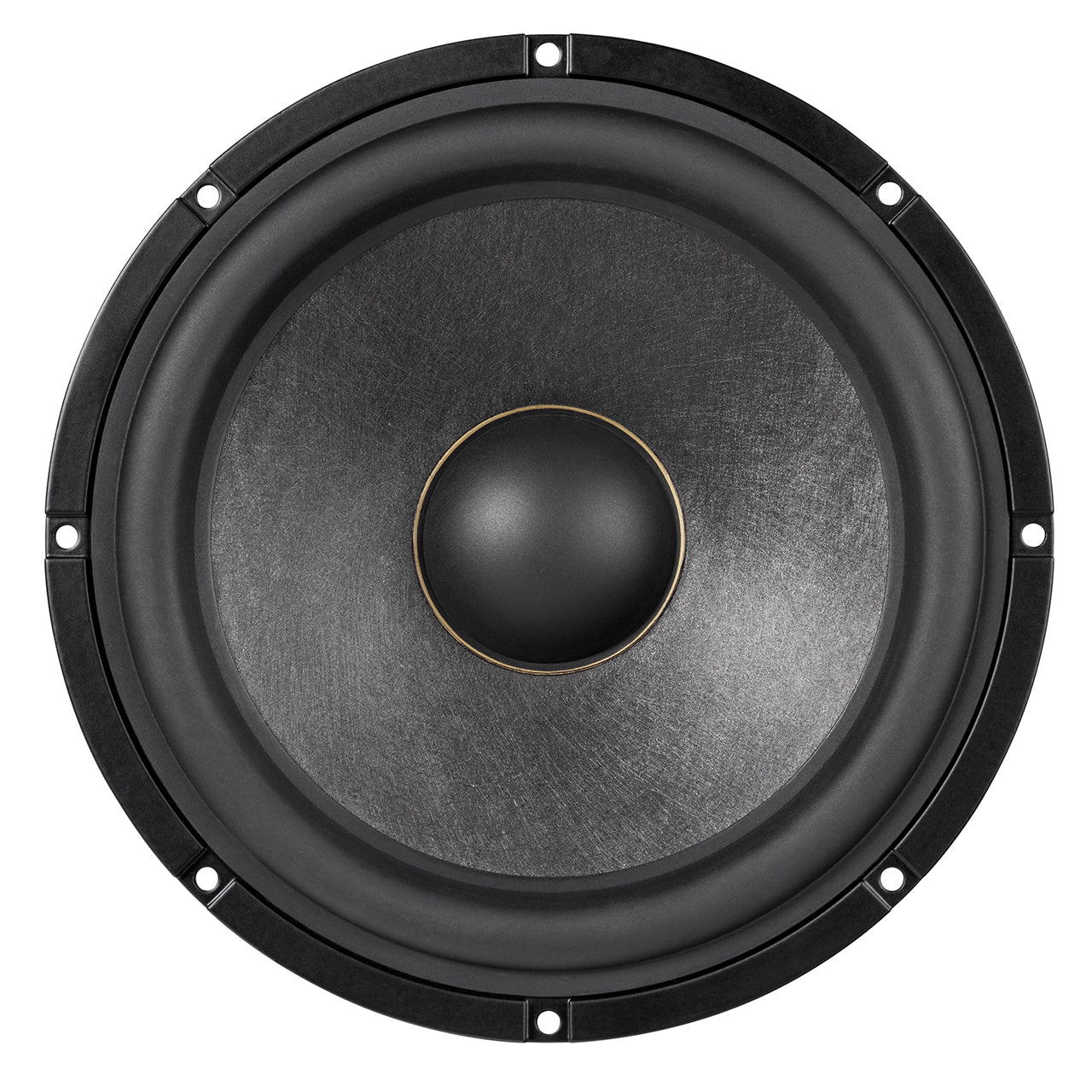

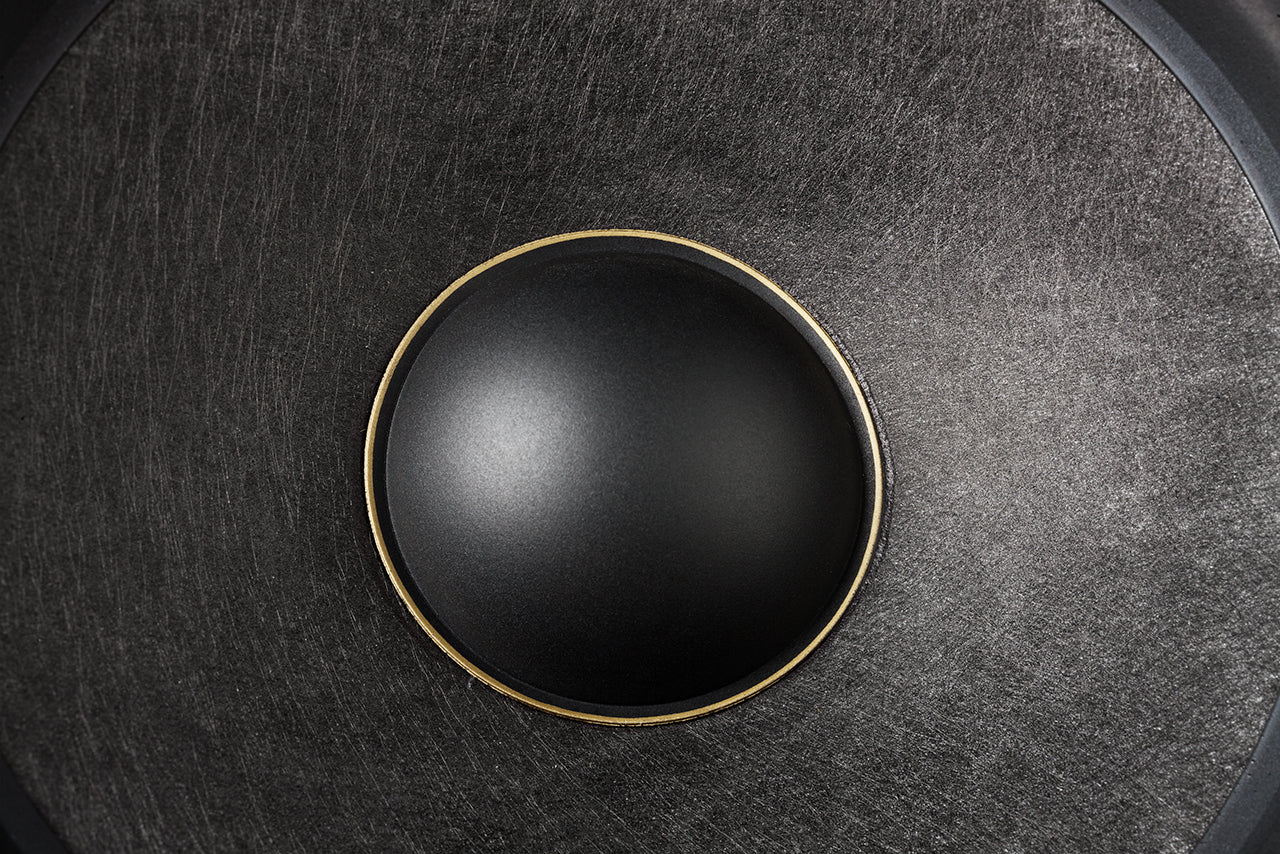

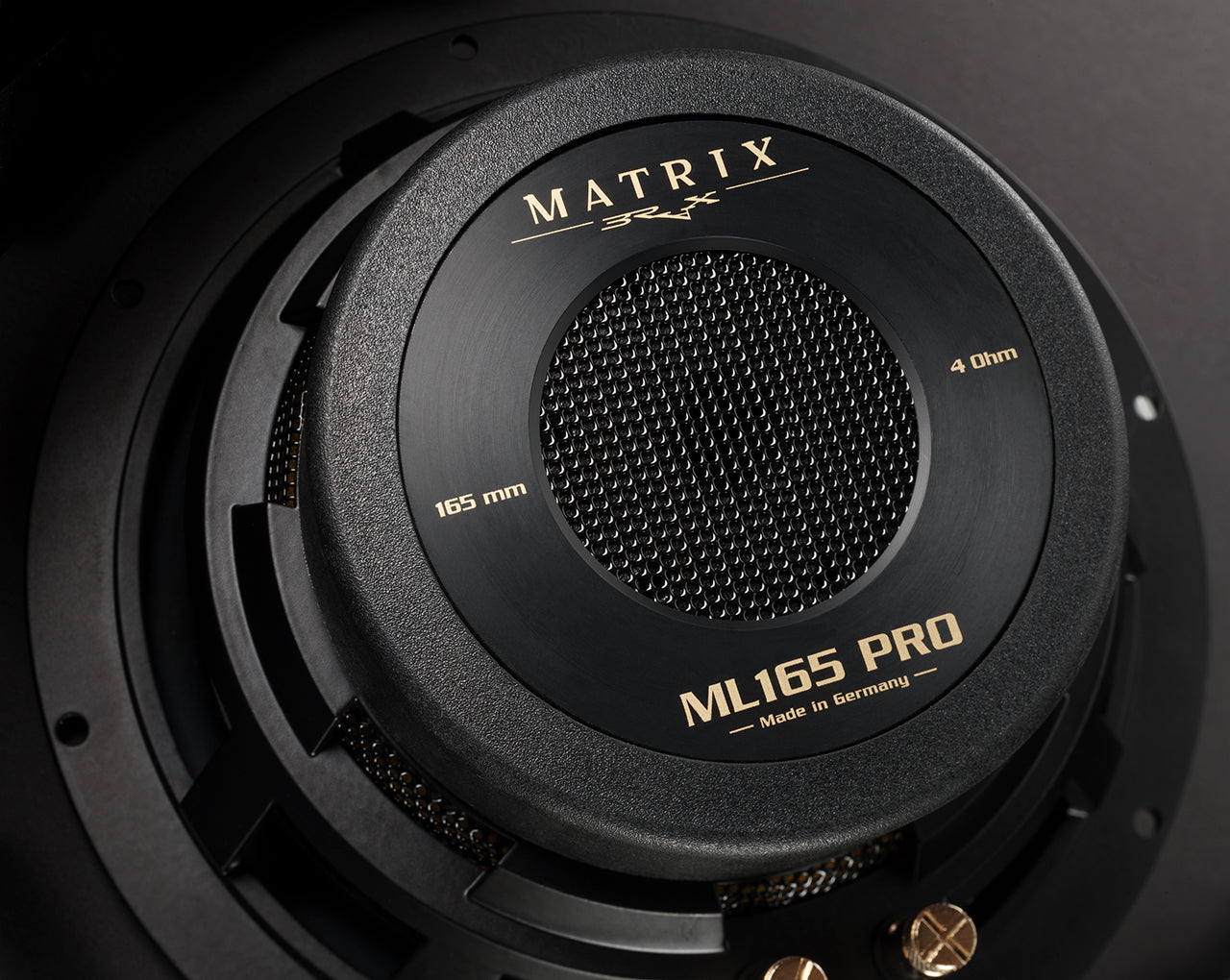

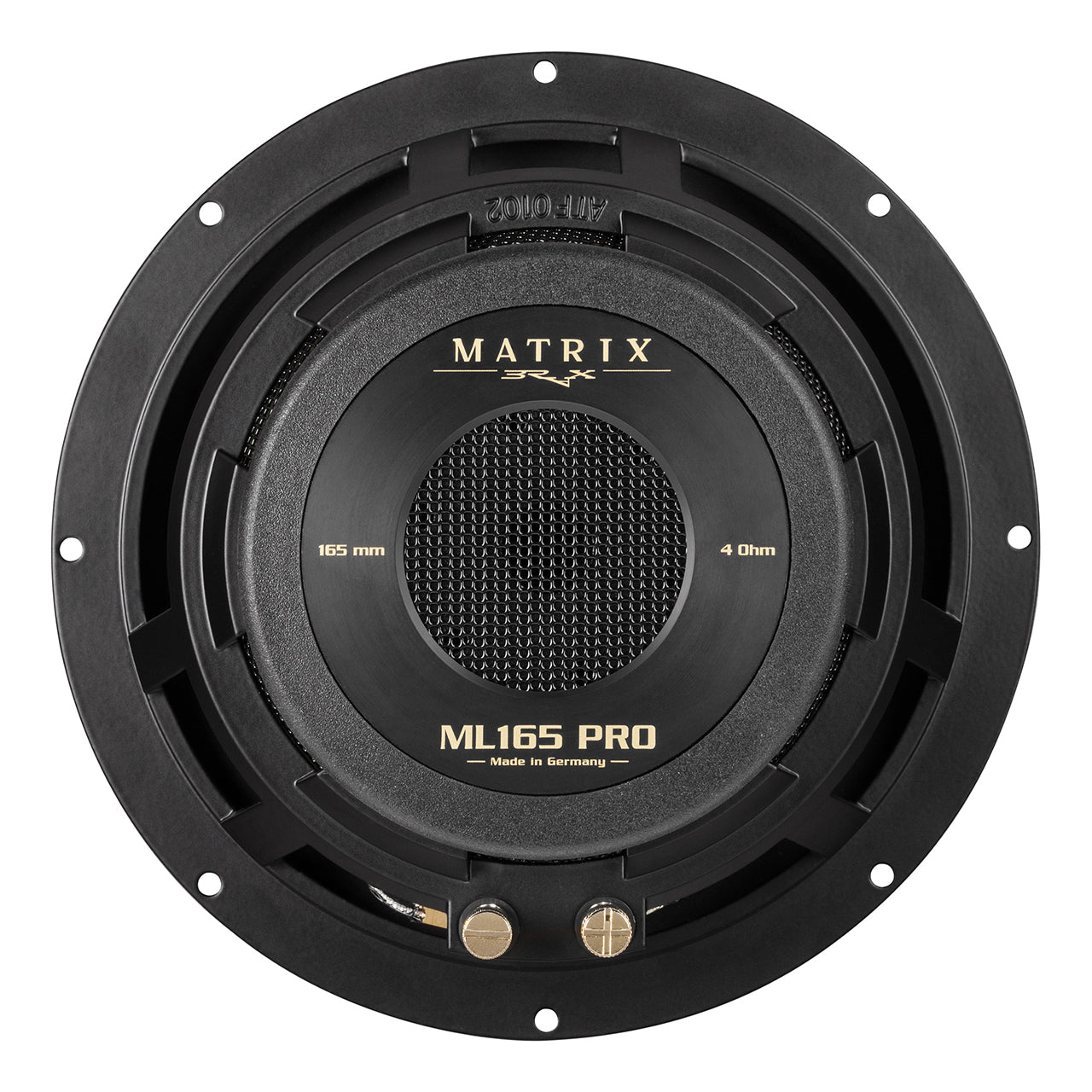

Handcrafted in Germany, the MATRIX ML165 PRO midbass driver represents the next evolution in high-end car audio. An ultra-lightweight carbon fleece multilayer cone delivers exceptional stiffness and low resonance for precise, dynamic sound. A copper cap on the pole piece linearises impedance and reduces distortion, while the precision-engineered magnet system ensures powerful, controlled bass. Finished with a silk-matte membrane, matt black aluminium basket, and 24-karat gold-plated terminals, it blends audiophile performance with elegant design.
Type: Midbass Driver
Size (Diameter): 165 mm
Impedance: 4 Ohm
RMS Power Handling: 120 Watts
Max Power Handling: 170 Watts
Frequency Response: 40 Hz - 4,000 Hz
Sensitivity: 91 dB @ 2.83V/1m
DC Resistance (Re): 3.4 Ohm
Resonance Frequency (Fs): 48 Hz
Mechanical Q (Qms): 6.80
Electrical Q (Qes): 0.50
Total Q (Qts): 0.47
Equivalent Volume (Vas): 14.6 L
Force Factor (B*l): 6.3 Tm
Moving Mass (Mms): 19.1 g
Cone Material: Carbon Fleece Multilayer
Voice Coil Diameter: 37 mm
Max Linear Excursion (Xlin): +/- 4.0 mm
Max Mechanical Excursion (Xmax): +/- 8.0 mm
Outer Diameter: 167 mm
Cutout Diameter: 143 mm
Mounting Depth: 64 mm
Cone Area (Sd): 137 cm²
Basket Material: Aluminium Die-Cast
Surround Material: Butyl Rubber
Terminals: 24k Gold-Plated
Country of Origin: Germany
