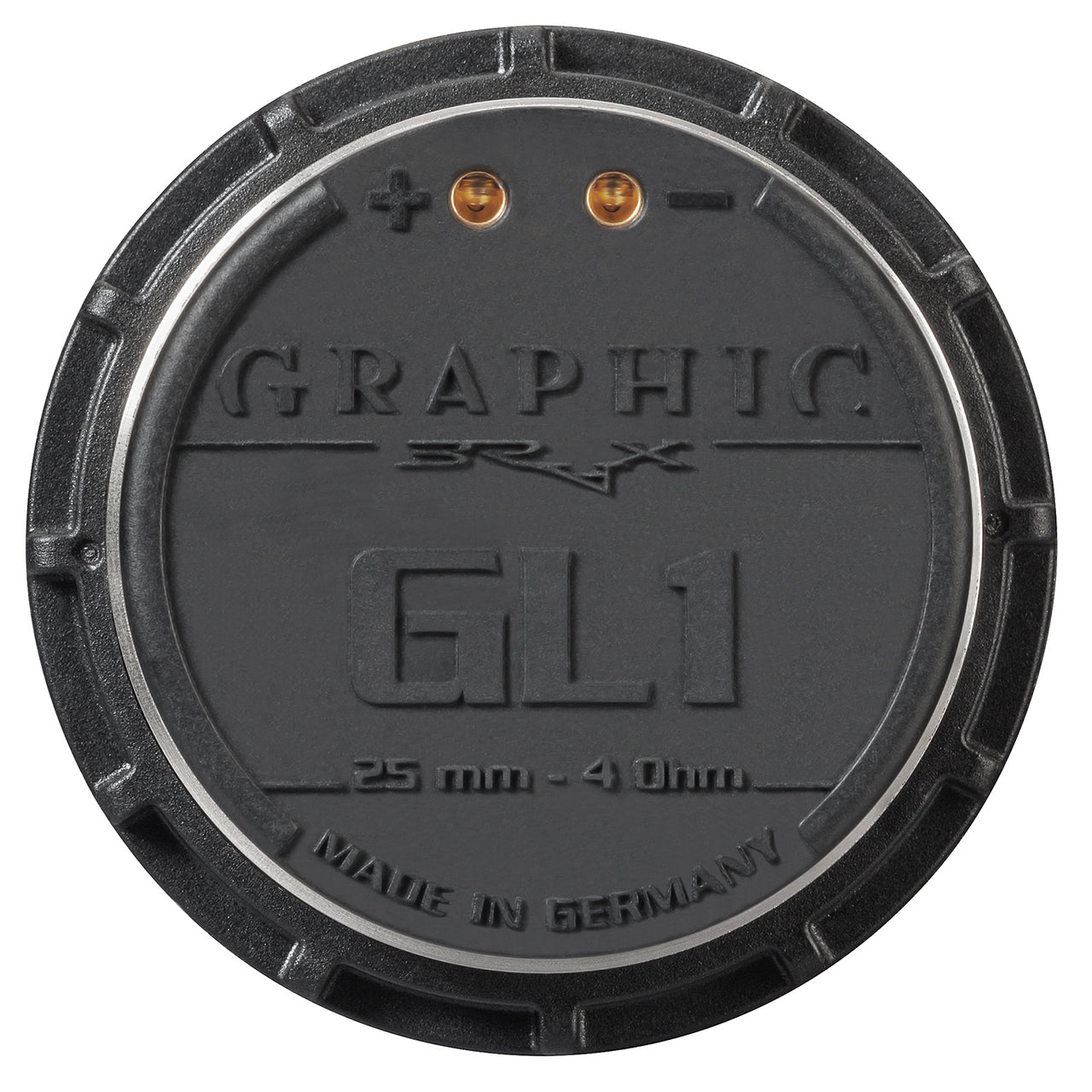

BRAX GRAPHIC GL1 MK2 25mm Ceramic-Aluminium Tweeter 4 Ohm
£539.00
Sale price
£539.00
Regular price
Skip to product information

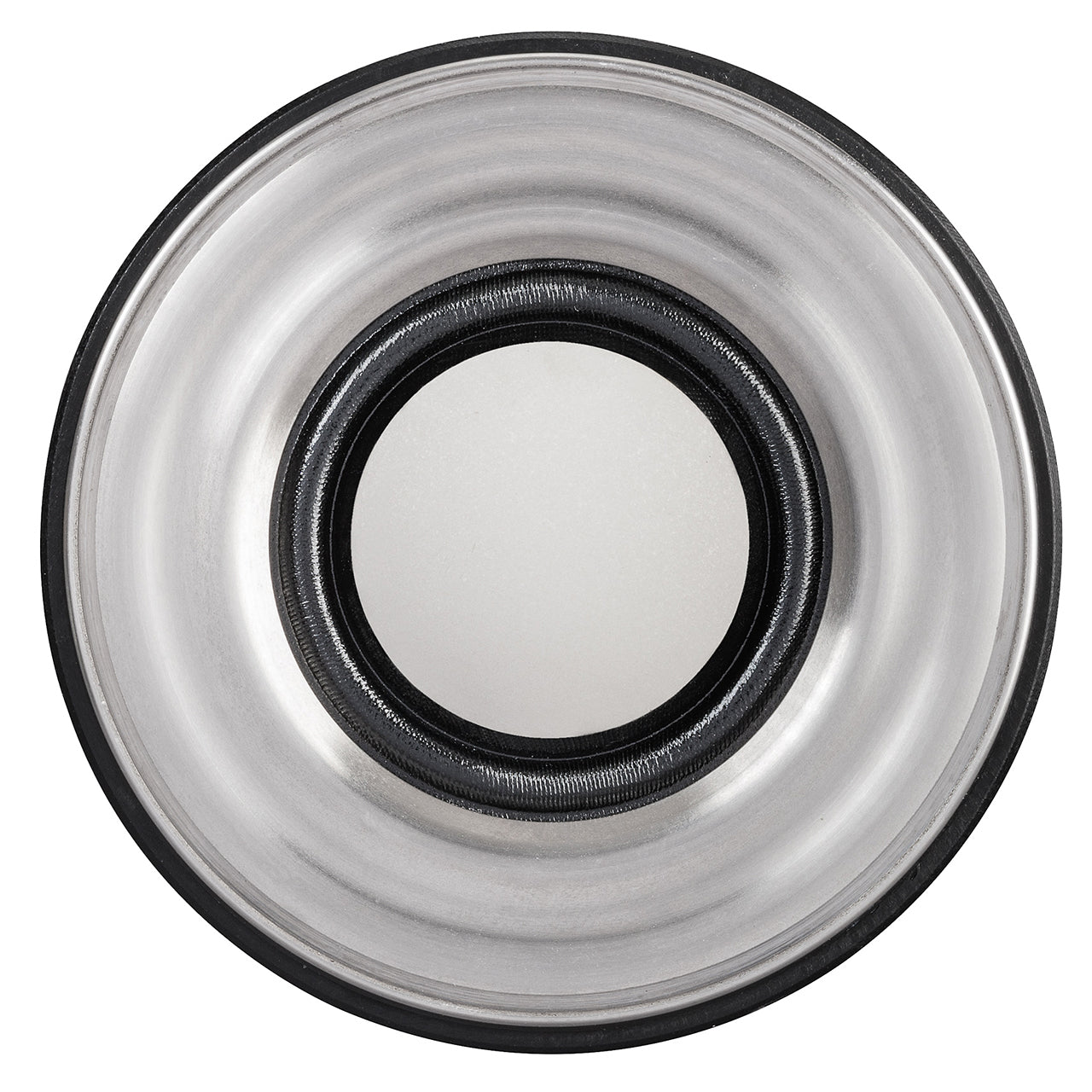

This high-end tweeter features a 25mm ceramic-aluminium dome, plasma-fused for extreme rigidity and low moving mass. The stainless steel housing ensures optimal heat dissipation, while the integrated merino wool-damped coupling volume delivers a low resonance frequency. Each pair comes with a unique serial number and is presented in a wooden box. Made in Germany.
Type: Tweeter
Dome Material: Ceramic-Aluminium
Diameter: 25 mm
Power Handling RMS: 100 W
Power Handling Max: 150 W
Impedance: 4 Ohm
DC Resistance: 3.4 Ohm
Frequency Range: 2000 Hz - 25000 Hz
Resonance Frequency: 900 Hz
Sensitivity: 93 dB @ 2.83V/1m
Voice Coil Diameter: 25 mm
Diaphragm Area: 4.9 cm²
Moving Mass: 0.36 g
Outer Diameter: 60 mm
Mounting Diameter: 52 mm
Mounting Depth: 21.5 mm
Magnet Type: 12-vented Neodymium
Housing Material: Stainless Steel
Connector Type: 24-Karat Gold-Plated
