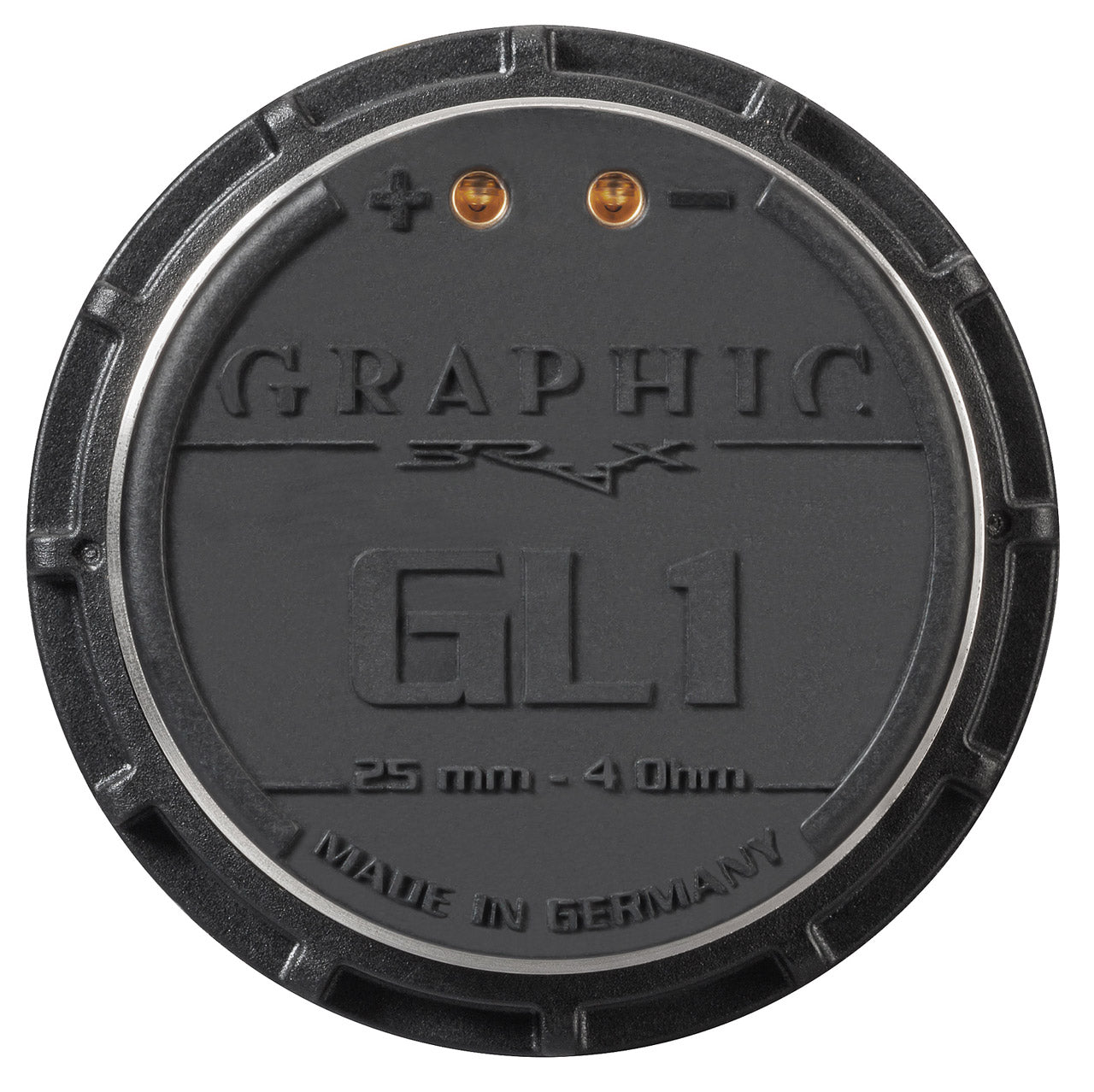

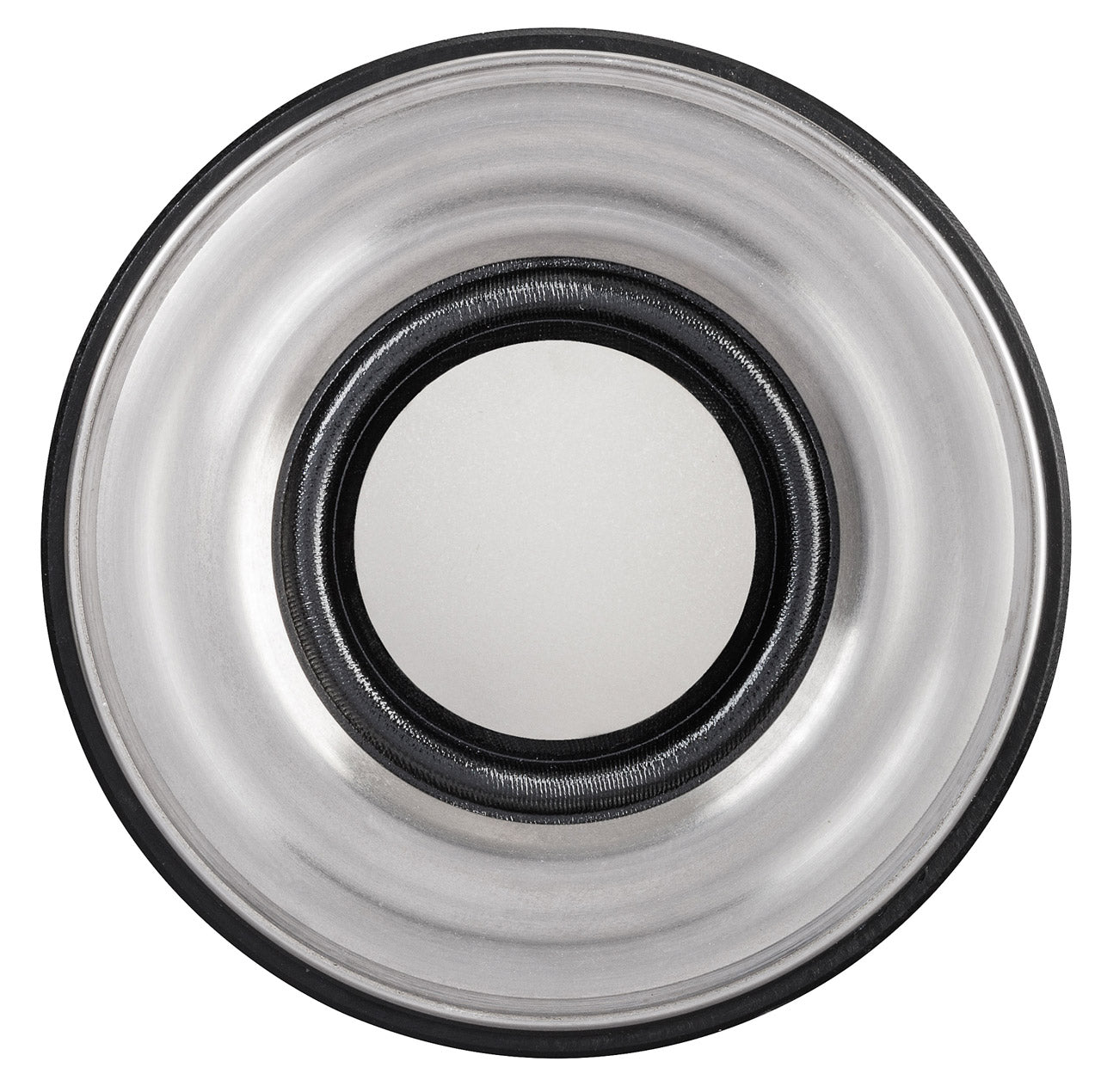

BRAX GRAPHIC GL1 High-End Car-Hifi Tweeter Ceramic Aluminium Dome
£539.00
Sale price
£539.00
Regular price
Skip to product information
The 25mm high-end tweeter features an innovative ceramic aluminium dome, crafted by melting ceramic powder onto an aluminium substrate with a plasma flame. This process delivers outstanding stability, low moving mass, and high inner damping for compression-free treble. The CNC machined stainless steel housing ensures efficient heat dissipation, while the integrated merino wool-damped coupling volume lowers the resonance frequency for seamless crossover integration. A 12x ventilated neodymium magnet maximises magnetic flux linearity, and the recessed 24-carat gold-plated terminal nearly eliminates contact resistance. Each pair comes with its own serial number and is presented in a premium wooden box.
Type: Tweeter
Diameter: 25 mm
Power RMS / Max: 100 / 150 Watts
Impedance: 4 Ohm
DC Resistance: 3.4 Ohm
Frequency Response: 2,000 Hz - 25,000 Hz
Resonance Frequency: 900 Hz
Efficiency (1W/1m): 90 dB
Voice Coil Diameter: 25 mm
Cone Area: 4.9 cm²
Moving Mass: 0.36 g
Cone Material: Ceramic Aluminium Hard Dome
Outer Diameter: 59 mm
Installation Diameter: 52 mm
Installation Depth: 24 mm
Housing Material: CNC Machined Stainless Steel
Magnet Type: 12x Ventilated Neodymium
Terminal: 24-Carat Gold Plated
