Ampire WFS400-LIN CAN/LIN-Bus Immobilizer Code-Disarming
Supplied
£249.00
Sale price
£249.00
Regular price
Skip to product information

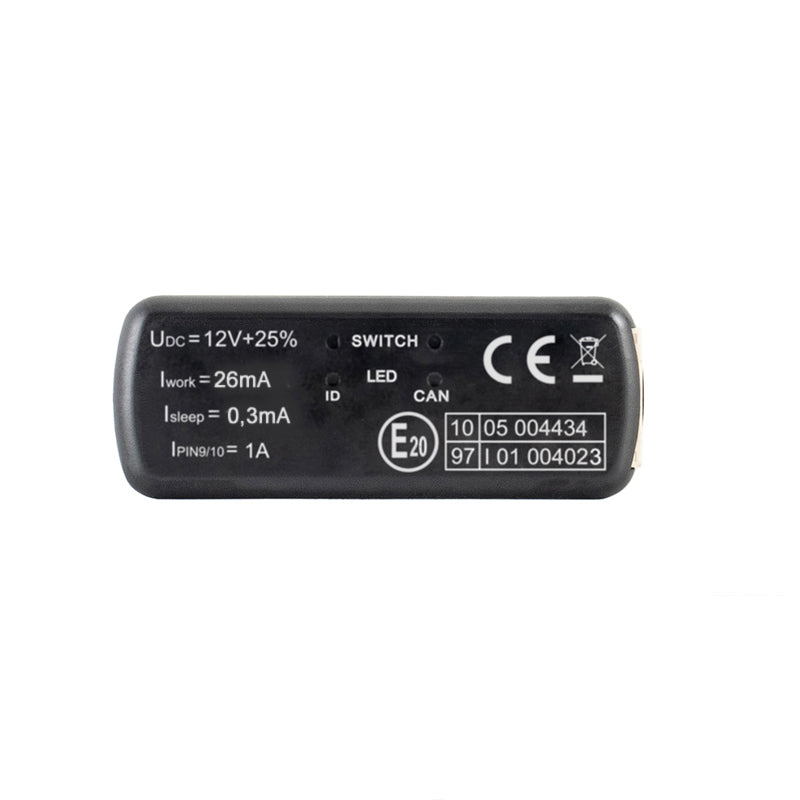

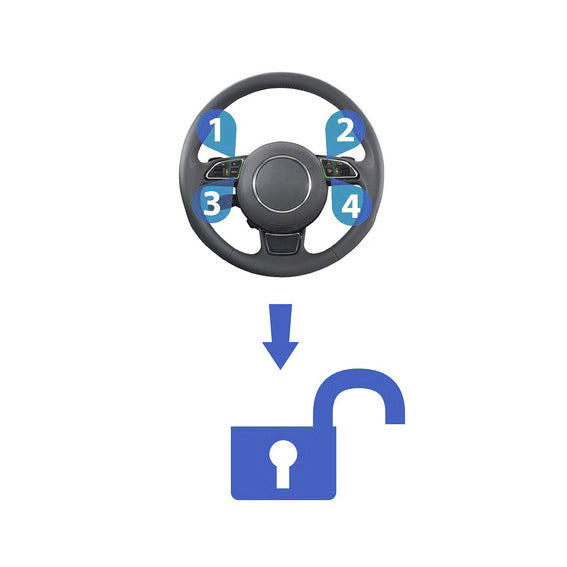

This third-generation CAN Bus Firewall protects your vehicle from theft, key cloning and keyless range extension. The WFS400-LIN communicates bi-directionally over up to 2 CAN and 1 LIN bus, requiring no additional remote controls or transponders. A user-defined 1–15 digit PIN code, entered via existing steering wheel or dashboard buttons, arms and disarms the system silently. The compact 25x20x7mm module hides covertly within the vehicle wiring; automatic arming occurs when the ignition is off. A service mode for garages and a blocking input for optional GSM modules add flexibility.
Operating Voltage: 9-15 VDC
Sleep Current: < 0.3 mA
Working Current: < 26 mA
Dimensions: 25 x 20 x 7 mm
Weight: 21 g (module with wiring loom)
PIN Code Length: 1–15 digits
Communication Bus: CAN / LIN Bus
Number of CAN Buses: 2
Number of LIN Buses: 1
Approvals: E-Mark, CE, RED, ECE-R10, VdS Class II
Warranty: 12 months (36 months with professional installation)
