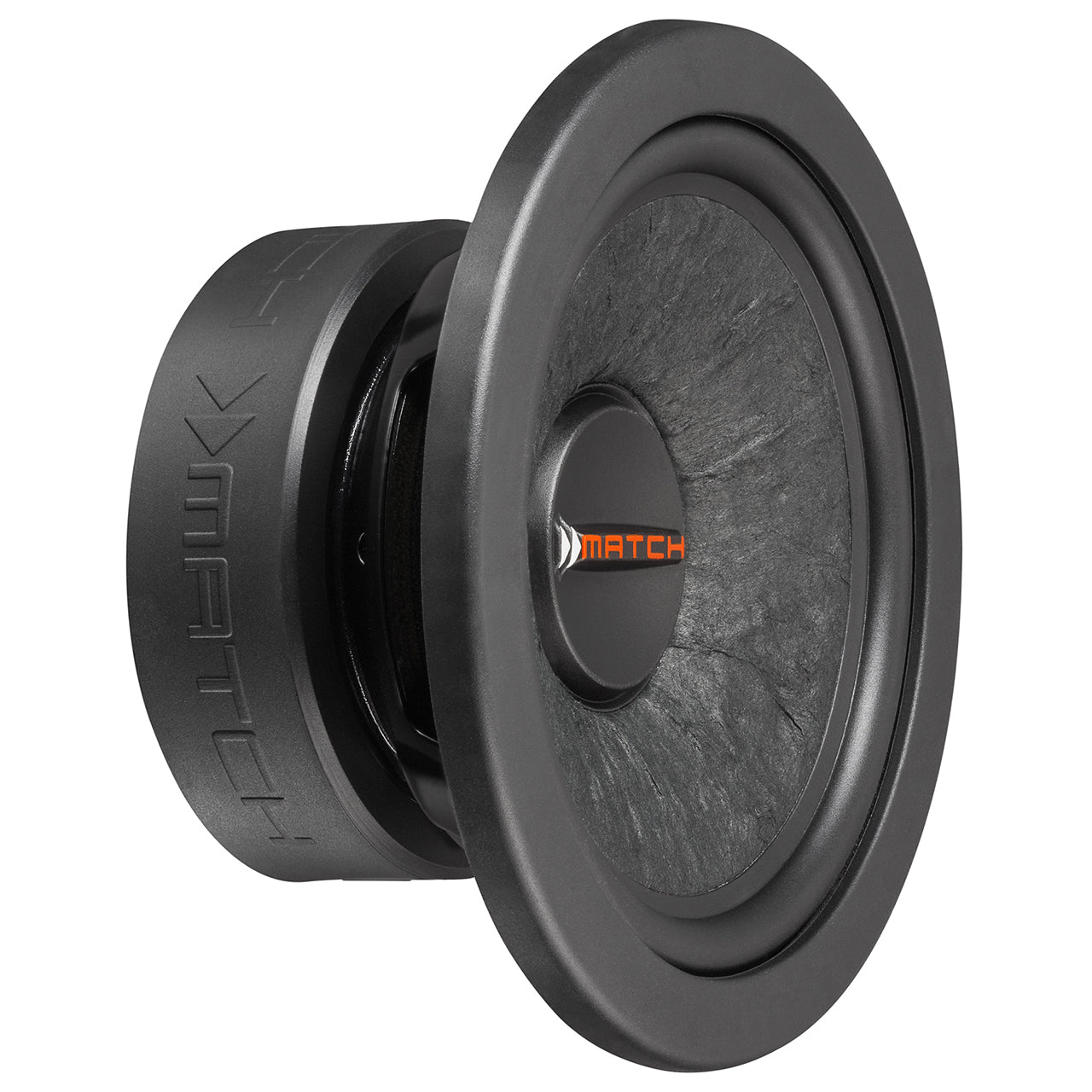

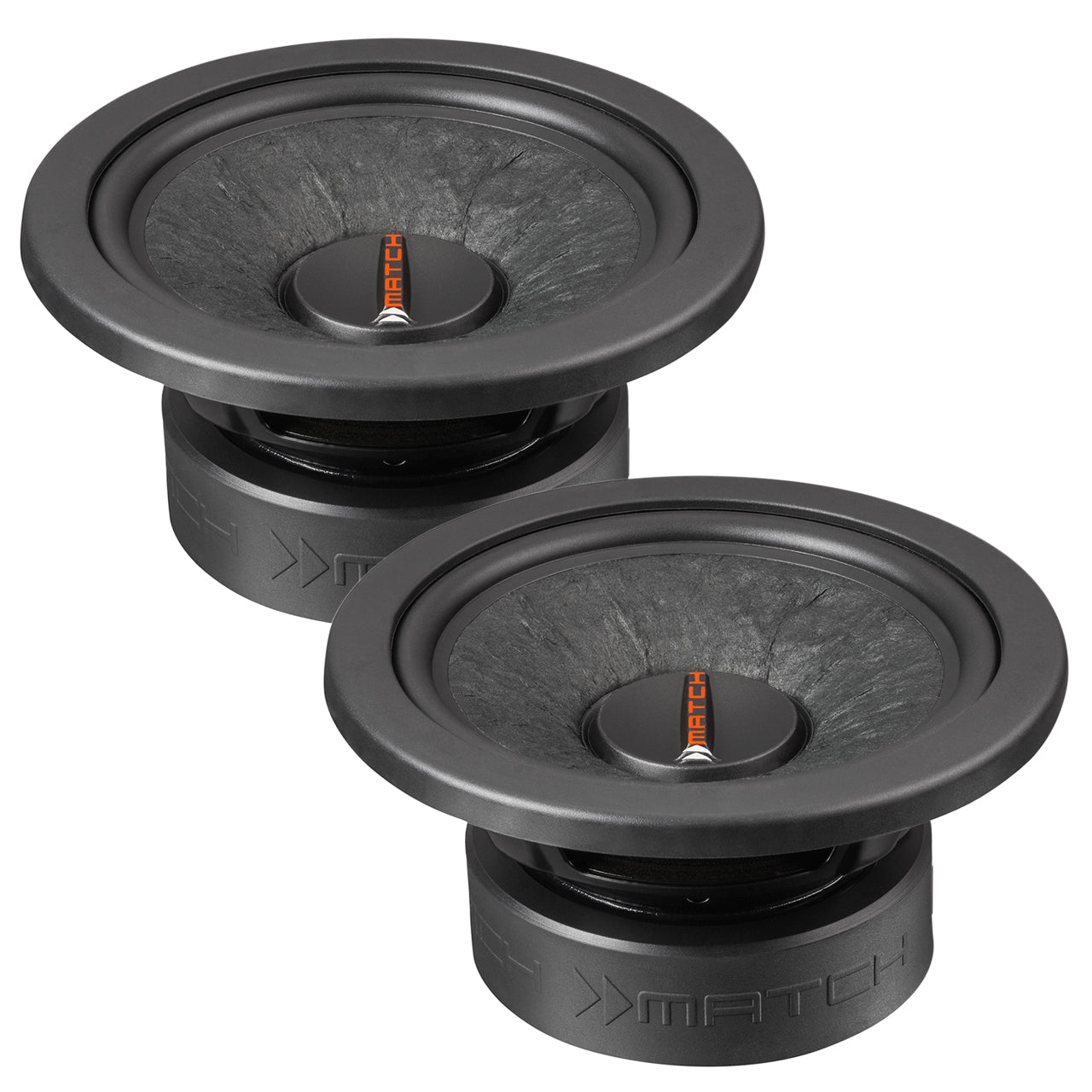

MATCH PP 72W-D 165mm Dual Voice Coil Subwoofer Pair
£99.00
Sale price
£99.00
Regular price
Skip to product information
These MATCH PP 72W-D subwoofer chassis let you build a custom subwoofer enclosure that fits your vehicle perfectly. Each unit features a handmade paper cone for excellent rigidity, a high-load voice coil with generous winding width, and dual ventilation to minimise compression effects. The powerful motor is optimised for compact bass reflex enclosures around 15 litres net volume. A Plug & Play connection terminal is included for easy integration with MATCH amplifiers. The pair delivers 100 Watts RMS / 200 Watts max power with a 2 x 2 Ohm dual voice coil configuration.
RMS Power: 100 W
Max Power: 200 W
Impedance: 2 x 2 Ω
DC Resistance: 2 x 1.6 Ω
Resonance Frequency: 53 Hz
Mechanical Q Factor: 3.30
Electrical Q Factor: 0.41
Total Q Factor: 0.37
Compliance: 350 µm/N
Equivalent Volume: 7.9 L
Force Factor: 8 Tm
Efficiency 1W/1m: 87 dB
Cone Area: 125 cm²
Moving Mass: 25 g
Cone Material: Handmade paper
Mechanical Resistance: 2.5 kg/s
Voice Coil Diameter: 38.8 mm
Voice Coil Winding Width: 16 mm
Max Linear Excursion: +/- 5.0 mm
Outer Diameter: 157.5 mm
Mounting Diameter: 133 mm
Mounting Depth: 79 mm
Recommended Enclosure: Bass reflex, 15 L net volume
Bass Reflex Port Diameter: 70 mm
Bass Reflex Port Area: 38 cm²
Bass Reflex Port Length: 20 cm
Tuning Frequency: 50 Hz
Lower Cut-off Frequency (-3dB): 48 Hz
