Hertz SPL Show SS 12 D2 Subwoofer 30cm Dual Voice Coil 2000W 2+2 Ohm
Hertz SPL Show SS 12 D2 Subwoofer 30cm Dual Voice Coil 2000W 2+2 Ohm

Hertz SPL Show SS 12 D2 Subwoofer 30cm Dual Voice Coil 2000W 2+2 Ohm
£0.00
£0.00

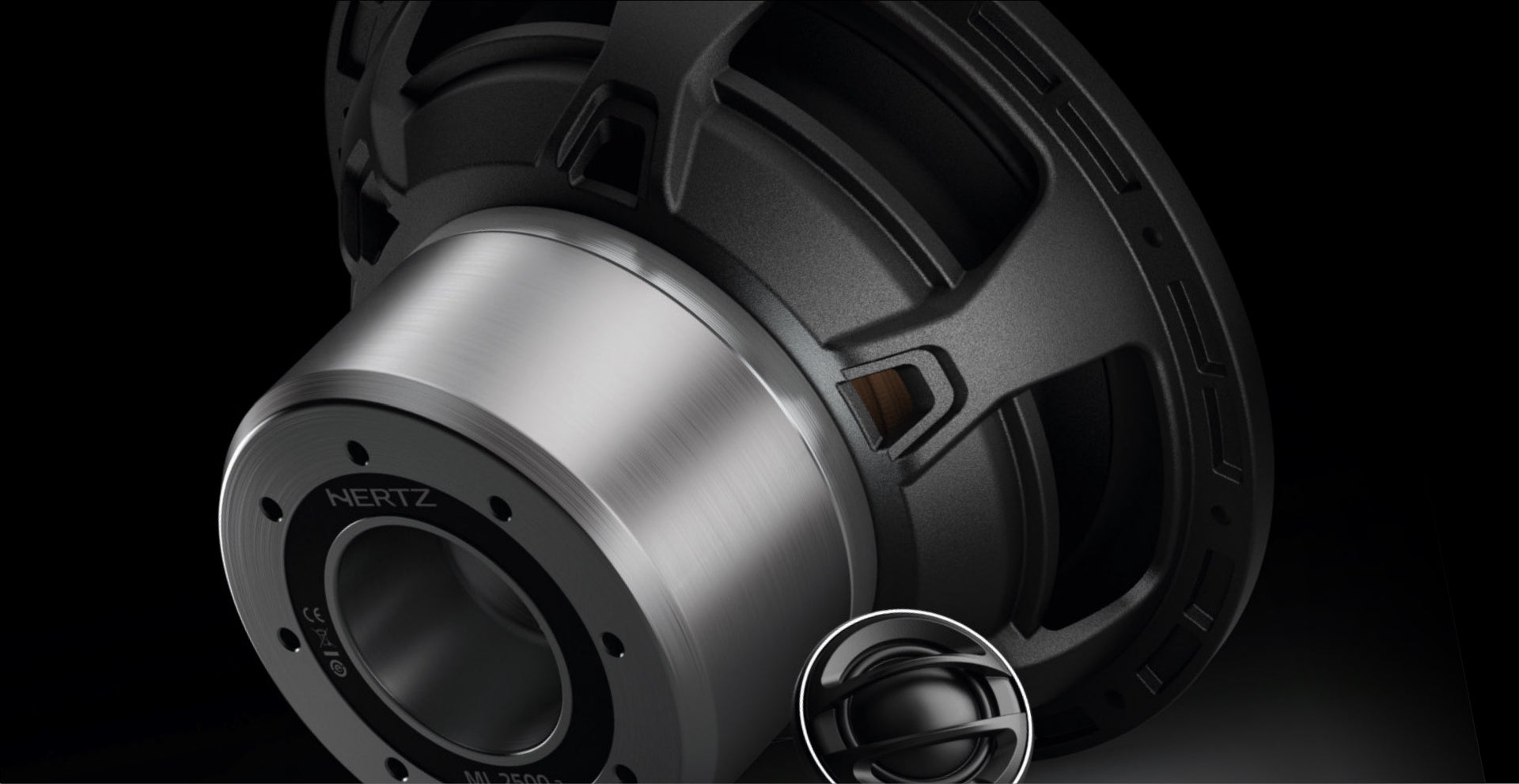

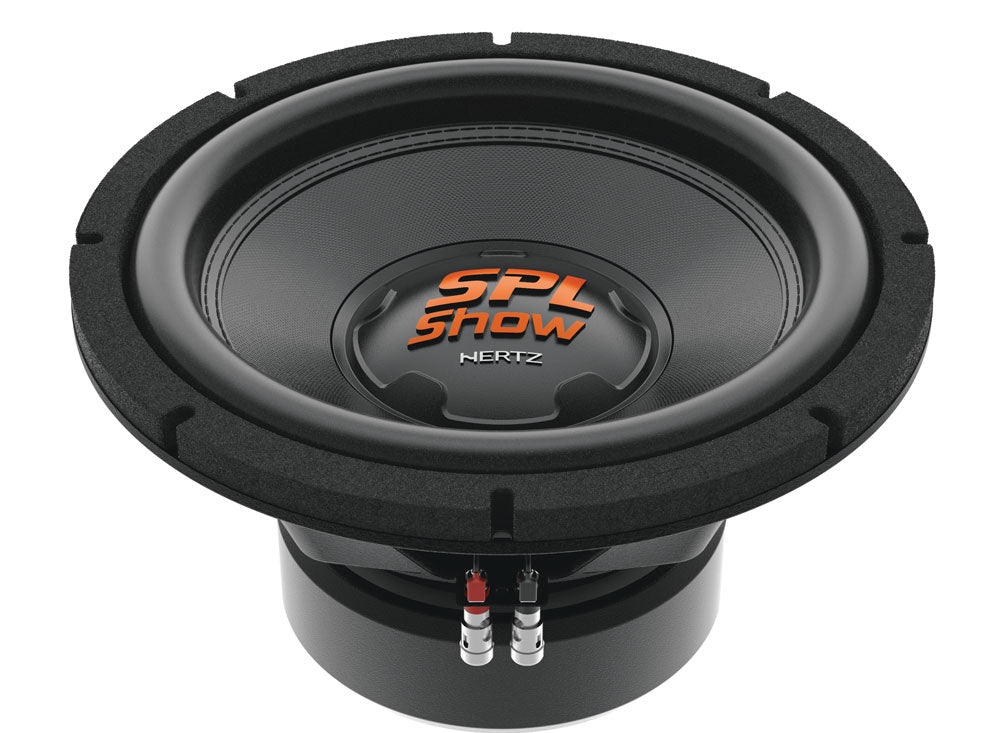

The Hertz SPL Show SS 12 D2 subwoofer packs a 30cm cone with a 2000W peak power dual voice coil, built for serious Bass Wars action. Its progressive double-layer spider suspension keeps performance consistent under heavy use. Heat dissipation is maximised through a robust design with a vented 75mm voice coil. The non-pressed paper cone with cotton fibre delivers high sensitivity. Oversized suspension and leadwires handle extreme excursions from the massive ferrite motor. Nickel-plated push connectors accept up to 12 AWG cables for secure high-current connection.

Size: 300 mm (12 in.)
Power Handling - Continuous: 1000 W
Power Handling - Peak: 2000 W
Impedance: 2+2 Ohm
Depth: 184 mm
Voice Coil Type: Dual
Voice Coil Diameter: 75 mm
Magnet Type: Ferrite
Magnet Size (D x d x h): 170 x 90 x 40 mm
Cone Material: Non-pressed paper with cotton fibre
Weight: 8.8 kg
Xmech: 20.7 mm
D (cone diameter): 253 mm
Xmax: 15.4 mm
Re (DC resistance): 0.96 Ohm
Fs (Resonant frequency): 36 Hz
Le (Inductance): 0.9 mH
Vas (Equivalent volume): 24.52 L
Mms (Moving mass): 282.8 g
Cms (Compliance): 0.07 mm/N
BL (Force factor): 9.37 T·m
Qts: 0.64
Qes: 0.70
Qms: 7.0
Sensitivity (SPL): 86 dB
Mounting Diameter (A): 320 mm
Mounting Hole Diameter (B): 283 mm
Mounting Depth (C): 184 mm
Motor Diameter (D): 161 mm
