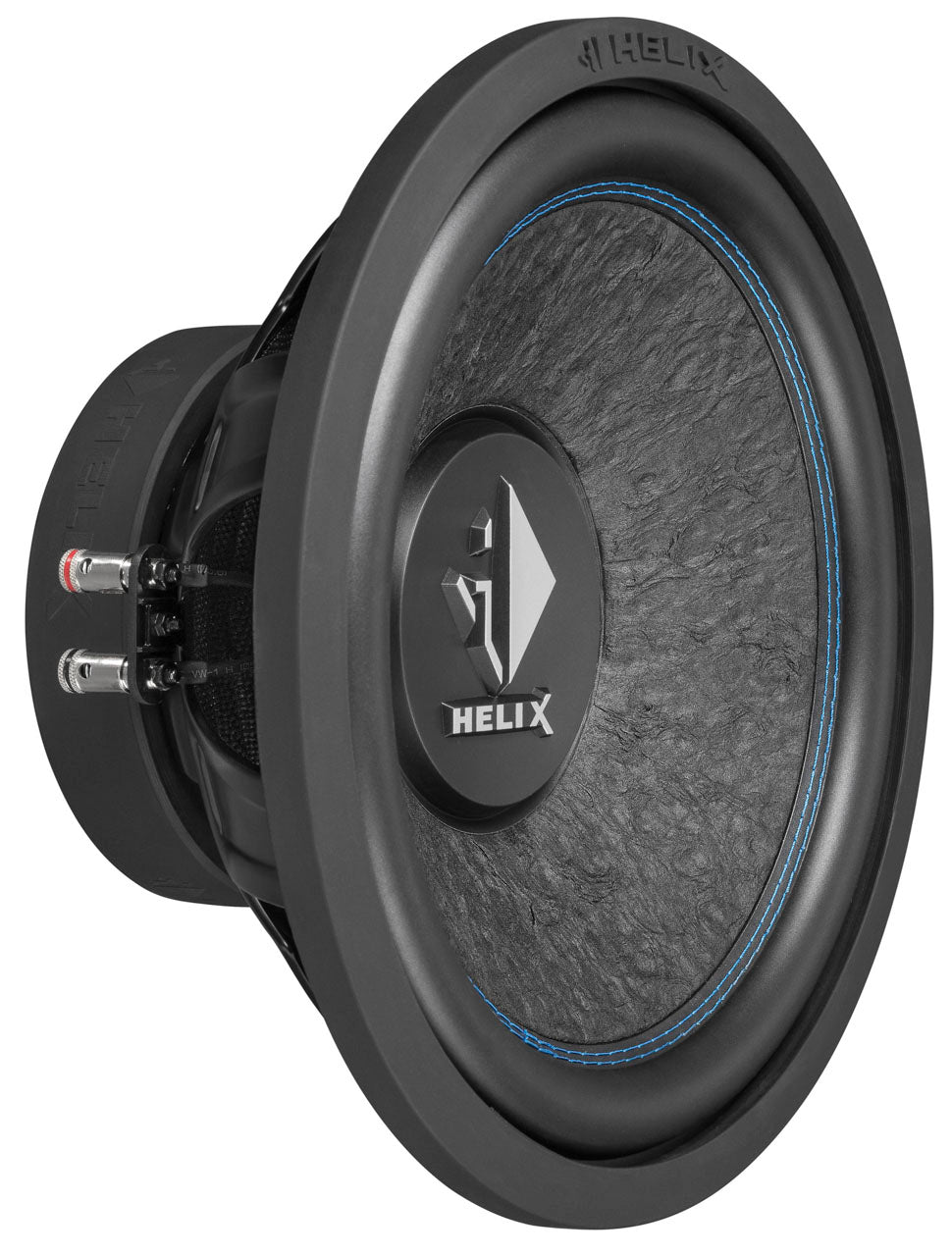

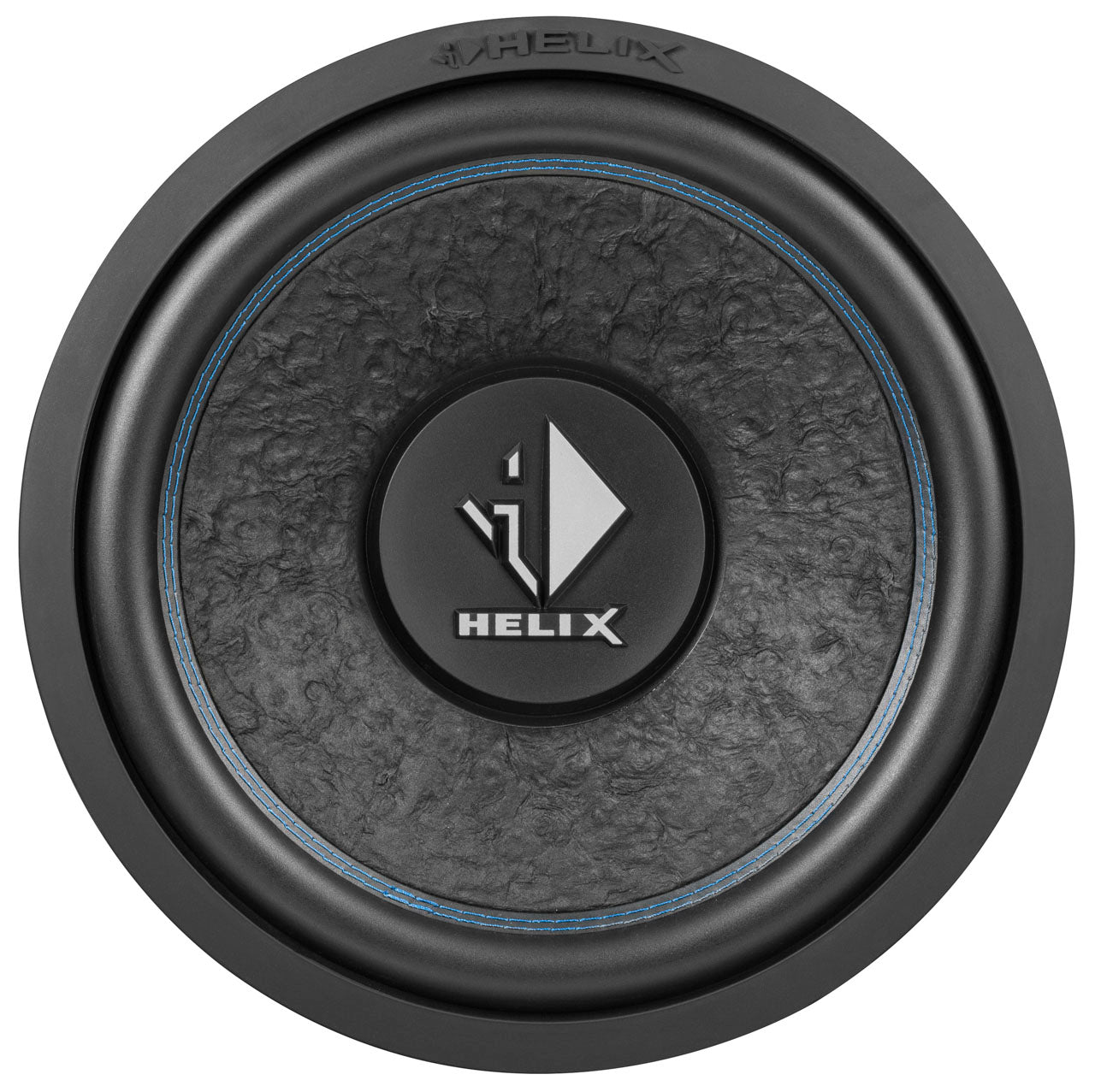

HELIX K 12W SVC2 Subwoofer Chassis 12in 300W
SVC2 – 1 x 2 Ohm
£189.00
Sale price
£189.00
Regular price
Skip to product information

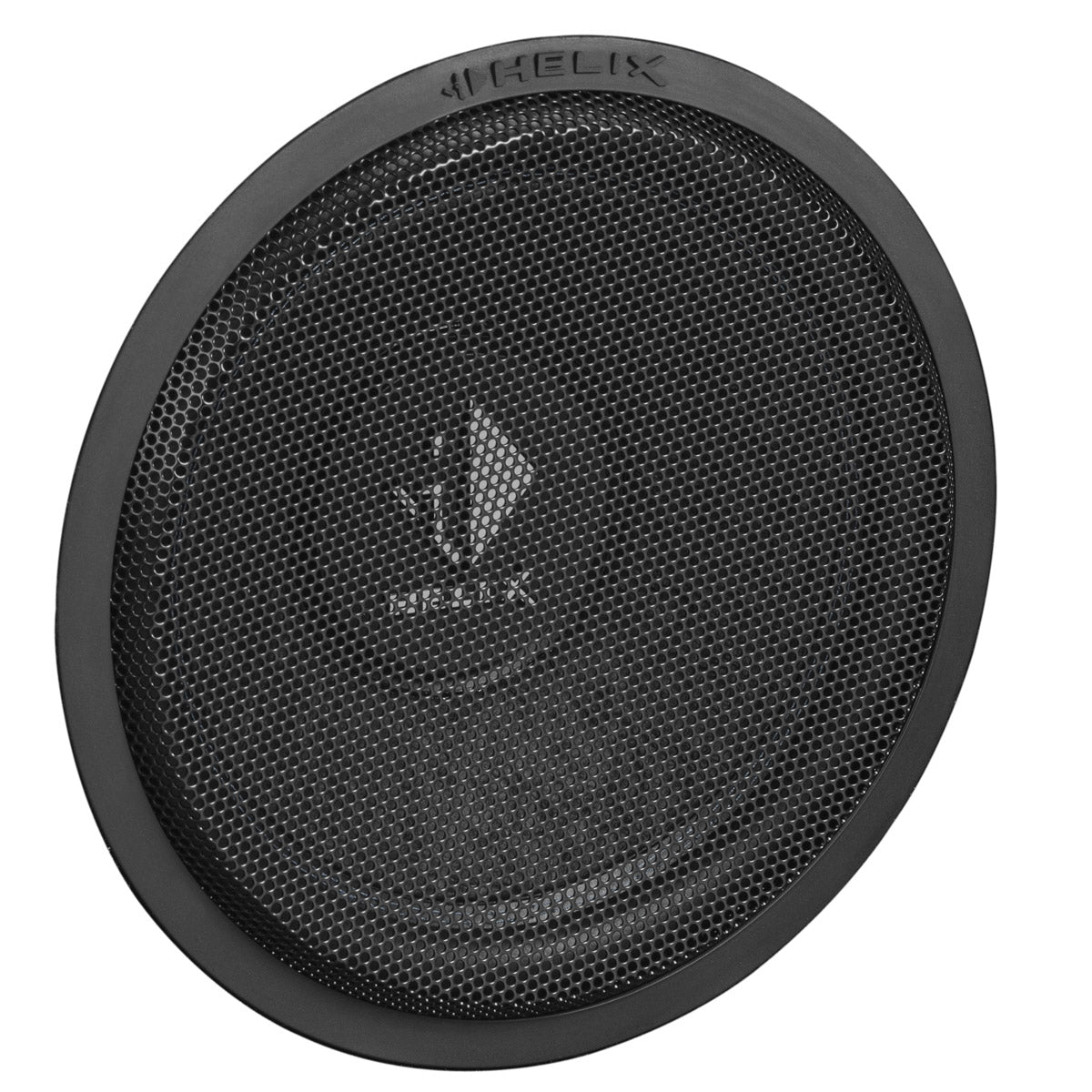

The HELIX K 12W delivers deep, powerful bass from a remarkably compact chassis. Its hand-crafted paper cone and robust motor system convert amplifier power into clean, distortion-free sound pressure. Choose between a single 2-ohm voice coil (SVC2) or dual 2-ohm voice coils (DVC2) for flexible amplifier matching. The package includes a protective grille and cover ring, plus detailed enclosure recommendations for optimal DIY performance.
Speaker Size: 12 inch (300 mm)
RMS Power: 300 W
Max Power: 600 W
Impedance (SVC2): 1 x 2 Ohm
Impedance (DVC2): 2 x 2 Ohm
Cone Material: Hand-crafted paper fibre
Surround Material: Long-throw rubber
Voice Coil Diameter: 50.8 mm
Frequency Response: 31 Hz - 500 Hz
Sensitivity: 89 dB (1W/1m)
Overall Diameter: 316 mm
Mounting Diameter: 286 mm
Mounting Depth: 144 mm
Weight: 5.68 kg
