HELIX IK EC10.1-DVC2 VW Multi-Trans Enclosure Subwoofer

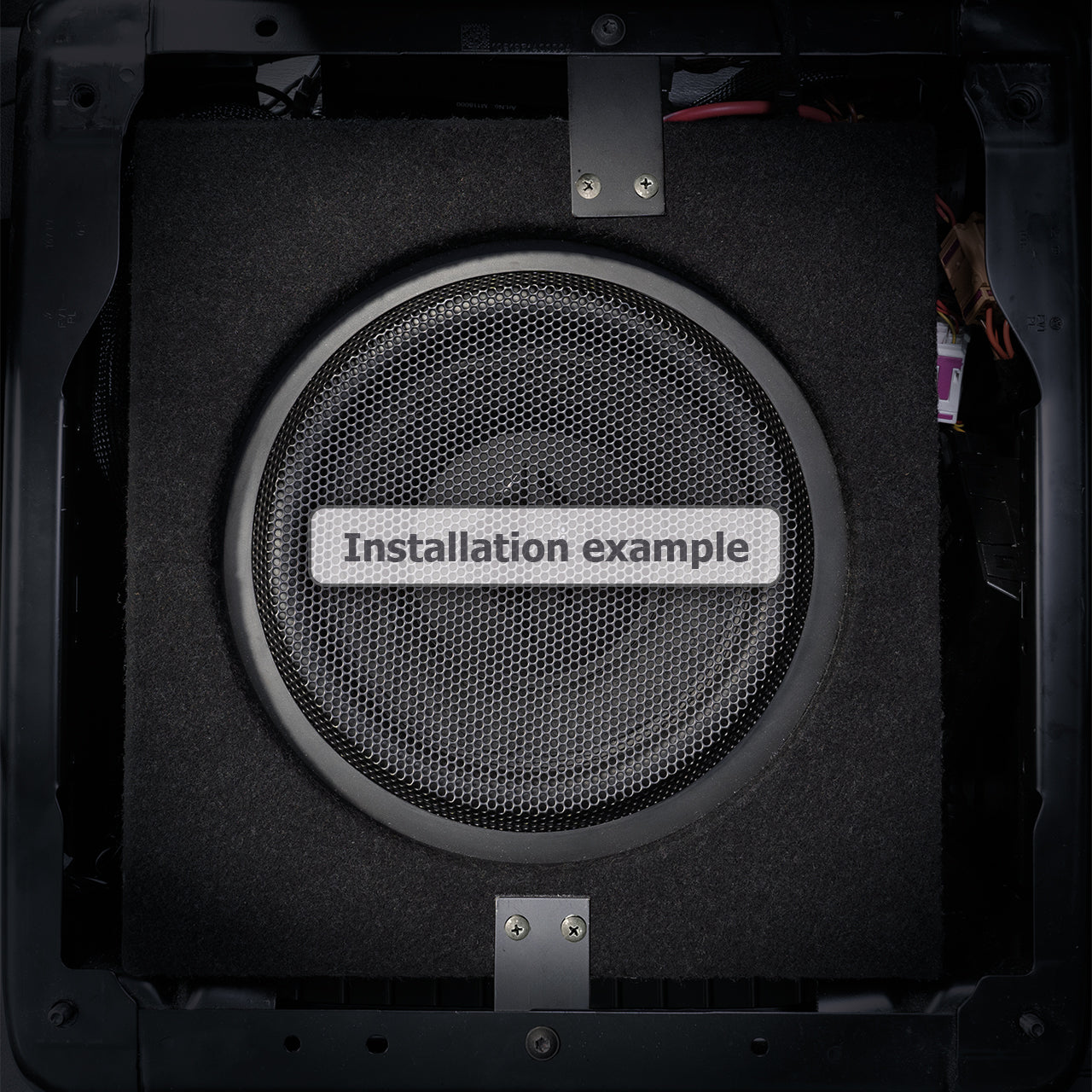

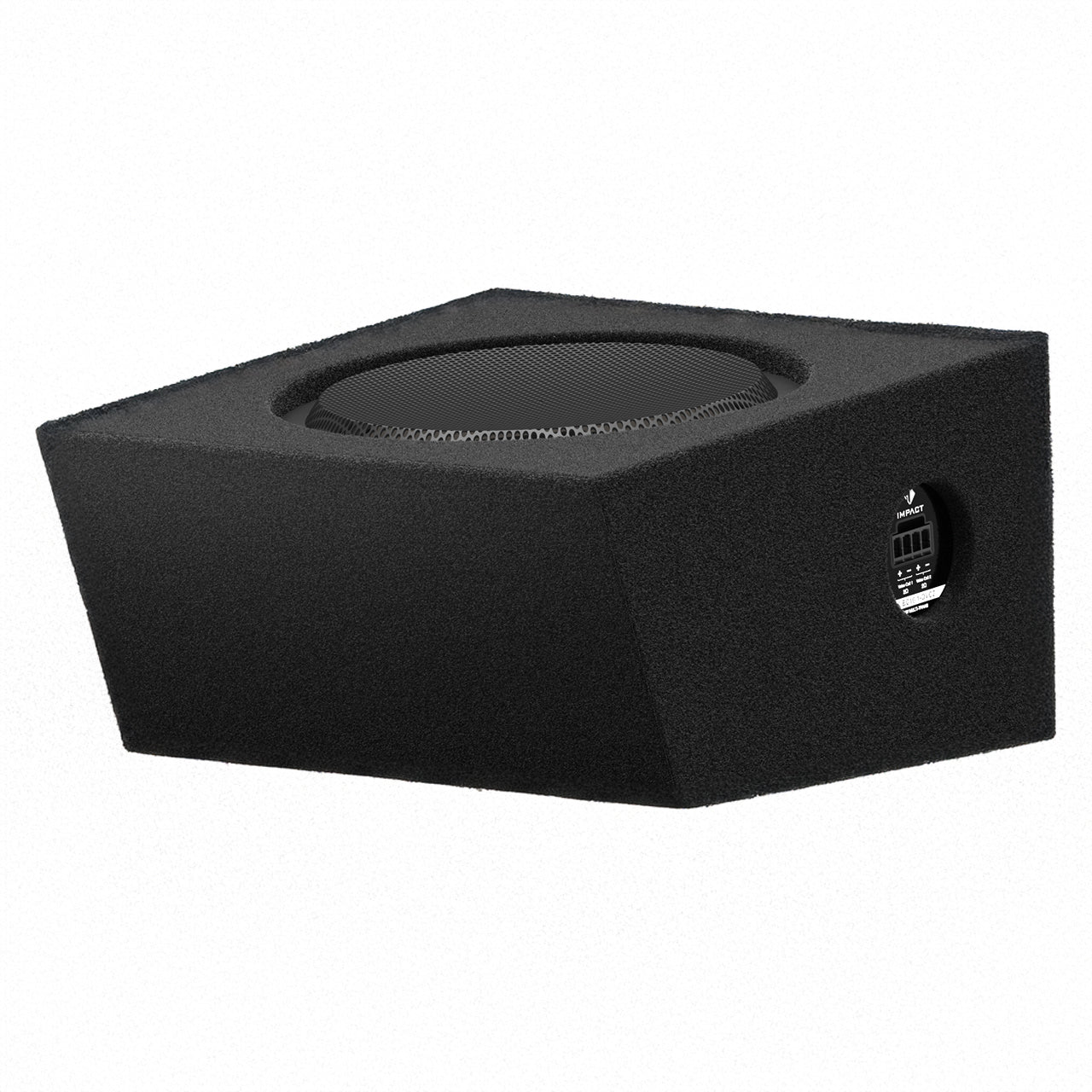

Designed to slot right into the passenger-side seat console of your VW T6.1, T6, or T5 without a swivel seat, this HELIX enclosure subwoofer delivers deep, rich bass without stealing your legroom. Its up-firing 250 mm woofer with a sandwich paper cone pushes sound upwards for an even, immersive low-end that fills the entire cabin.

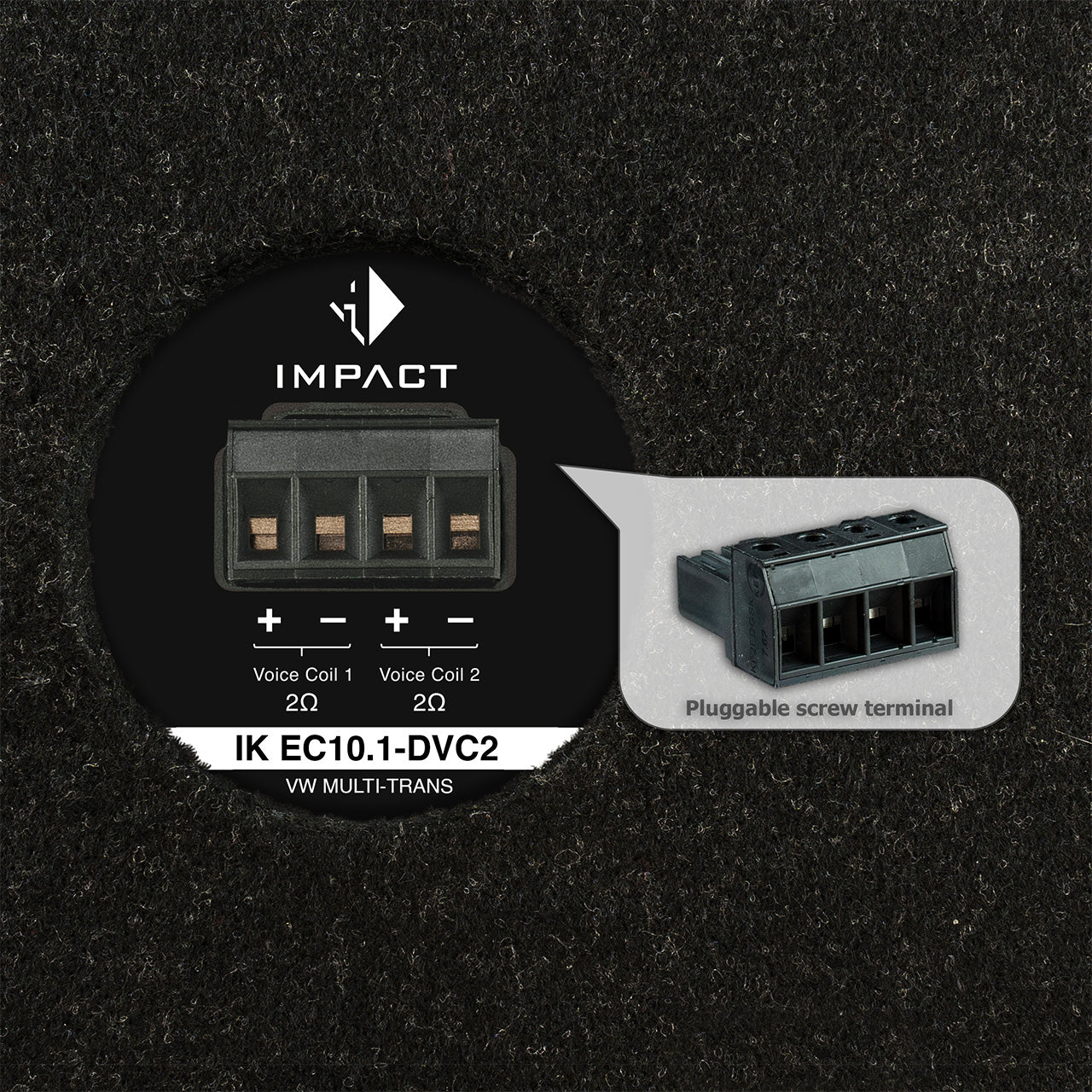

Installation is a breeze thanks to the pluggable screw terminal, and the configurable voice coil impedance lets you wire it up at 2 x 2 Ohms, 1 x 4 Ohms, or 1 x 1 Ohm to match your amplifier perfectly. Wrapped in a tough carpet finish with an embroidered HELIX logo, it looks as good as it sounds while staying protected from daily knocks.

• Type: Enclosure subwoofer
• Diameter: 250 mm
• Impedance: 1 x 1 Ohm, 1 x 4 Ohm, 2 x 2 Ohm
• Power handling RMS: 300 Watts
• Recommended amplifier power: 150 - 300 Watts
• Max. linear excursion: +/- 6.0 mm
• Sensitivity: 90 dB @ 2.83V / 1m, 87 dB @ 1W / 1m
• Dimensions (H x W x D): 193 x 350 x 330 mm
• Integrated subwoofer chassis: HELIX IK S10-DVC2
• Recommended DSP settings: "Self-define" highpass 46 Hz / Q = 1.4; EQ filter: 100 Hz / Q = 1.5 / -3 dB
• Brand: HELIX
• Manufacturer: Audiotec Fischer
• Model Number: IK EC10.1-DVC2 – VW MULTI-TRANS
• Compatibility: Volkswagen T6.1, T6, T5 without swivel seats
• Woofer Material: Sandwich paper cone
• Installation Position: Passenger seat console
• Enclosure Material: Carpet
