HELIX COMPOSE i7 Ci7 M100FM-S3 100mm Mid-Range Speaker 3 Ohm
£349.00
Sale price
£349.00
Regular price
Skip to product information

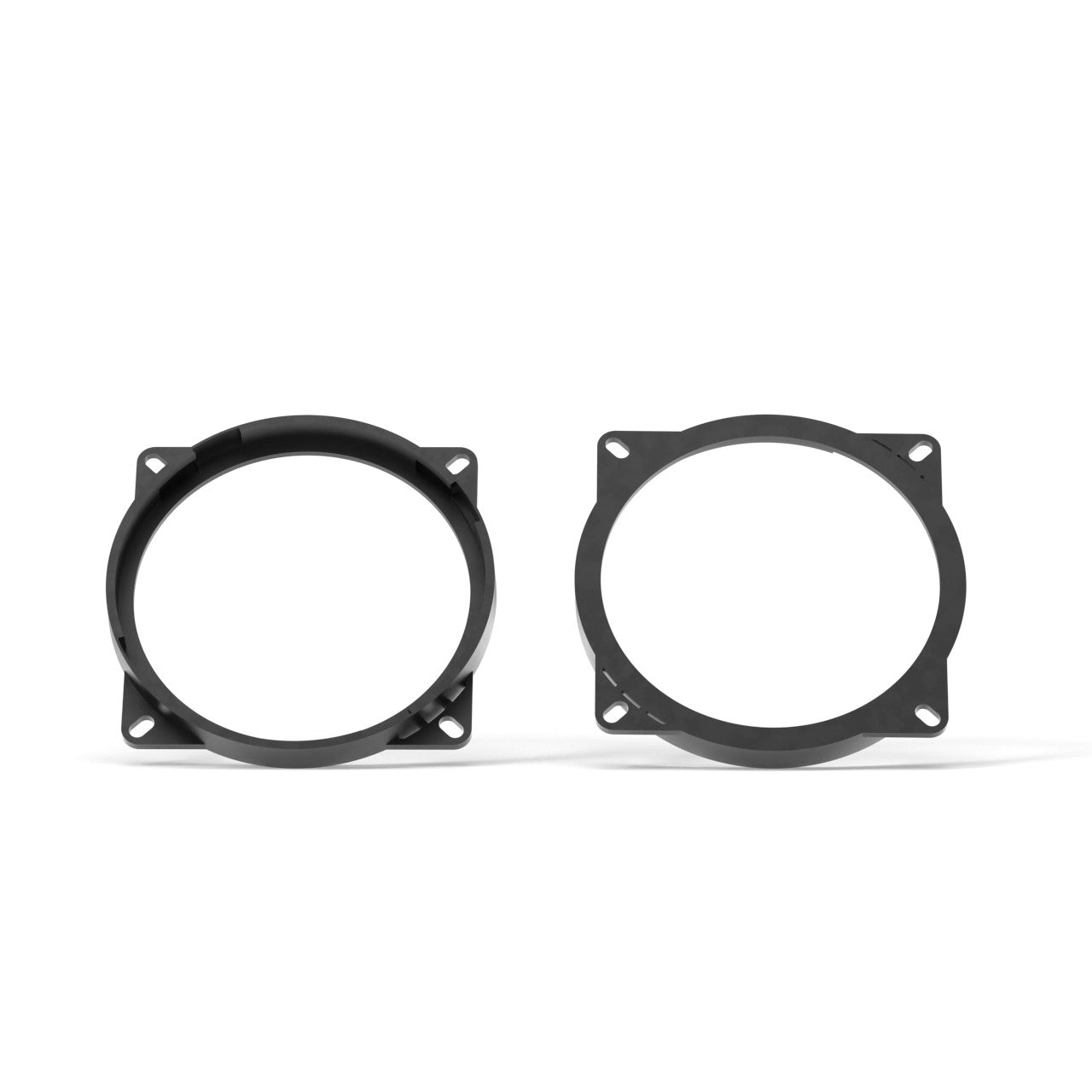

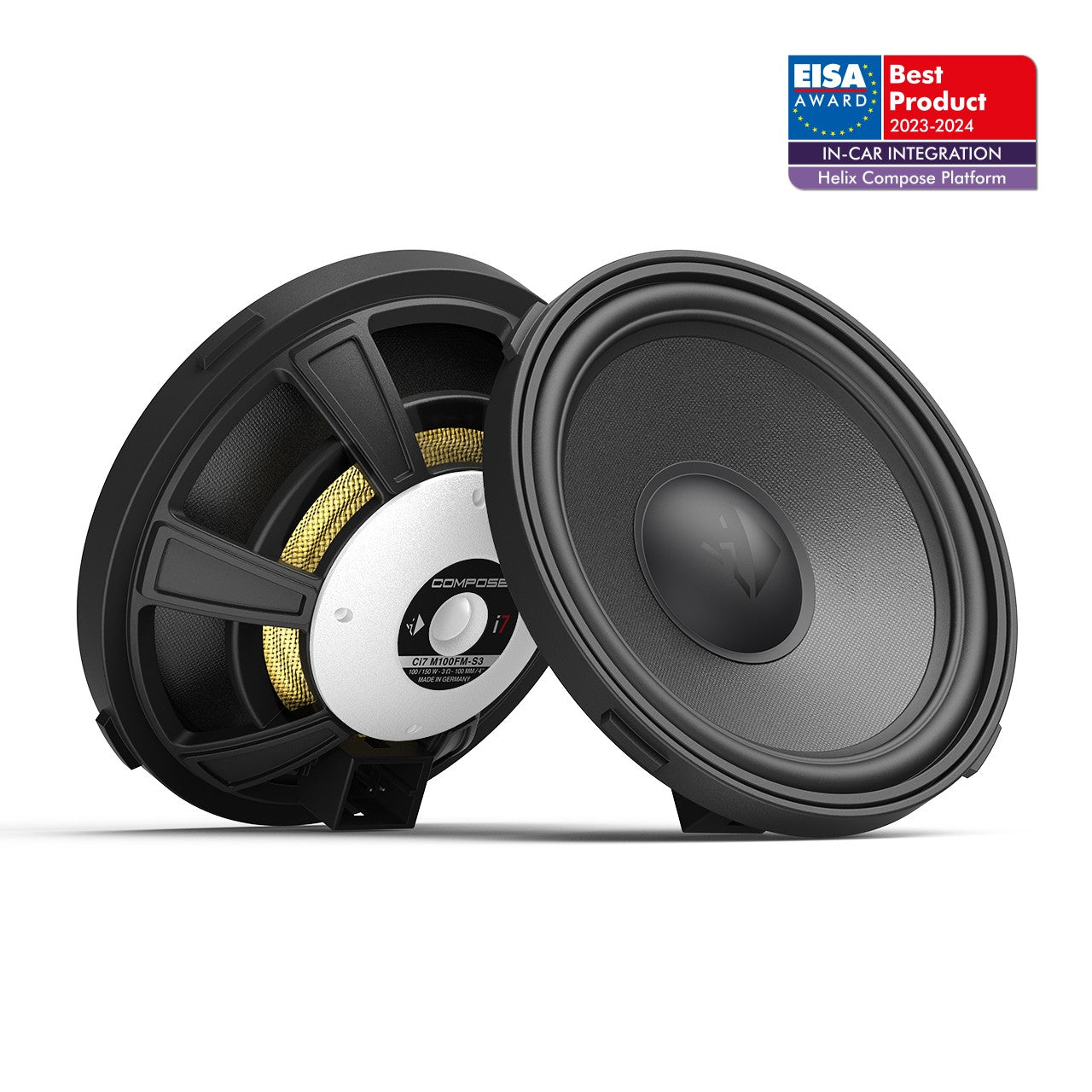

The HELIX COMPOSE i7 Ci7 M100FM-S3 is a 100mm high-end mid-range speaker designed for exceptional car audio performance. It features a proprietary hand-crafted UHD (Ultra High Damping) paper cone for optimal frequency response and impulse accuracy, delivering detailed and dynamic sound. The 3-ohm impedance is perfectly matched with HELIX and MATCH amplifiers for maximum efficiency and output. A high-tech polymer composite basket with glass bead reinforcement provides maximum stability with minimal resonance. The FlexMount100 system with included universal mounting ring and the FlexConnect terminal allow versatile and secure installation in a wide range of vehicles.
Type: Mid-range speaker
Diameter: 100 mm
Impedance: 3 Ohm
RMS Power Handling: 100 Watt
Max Power Handling: 150 Watt
Frequency Response: 110 Hz - 7,000 Hz
Sensitivity: 91 dB @ 2.83V/1m
DC Resistance (Re): 3.0 Ohm
Resonant Frequency (Fs): 85 Hz
Voice Coil Diameter: 25 mm
Magnet System: Push-pull neodymium
Cone Material: UHD paper
Basket Material: High-tech polymer composite with glass beads
Mounting System: FlexMount100
Connection: FlexConnect terminal
Overall Diameter: 98 mm
Overall Diameter with Mounting Ring: 104.5 mm
Cut-out Diameter: 89 mm
Mounting Depth: 26.9 mm
Weight: 0.56 kg
Origin: Made in Germany
