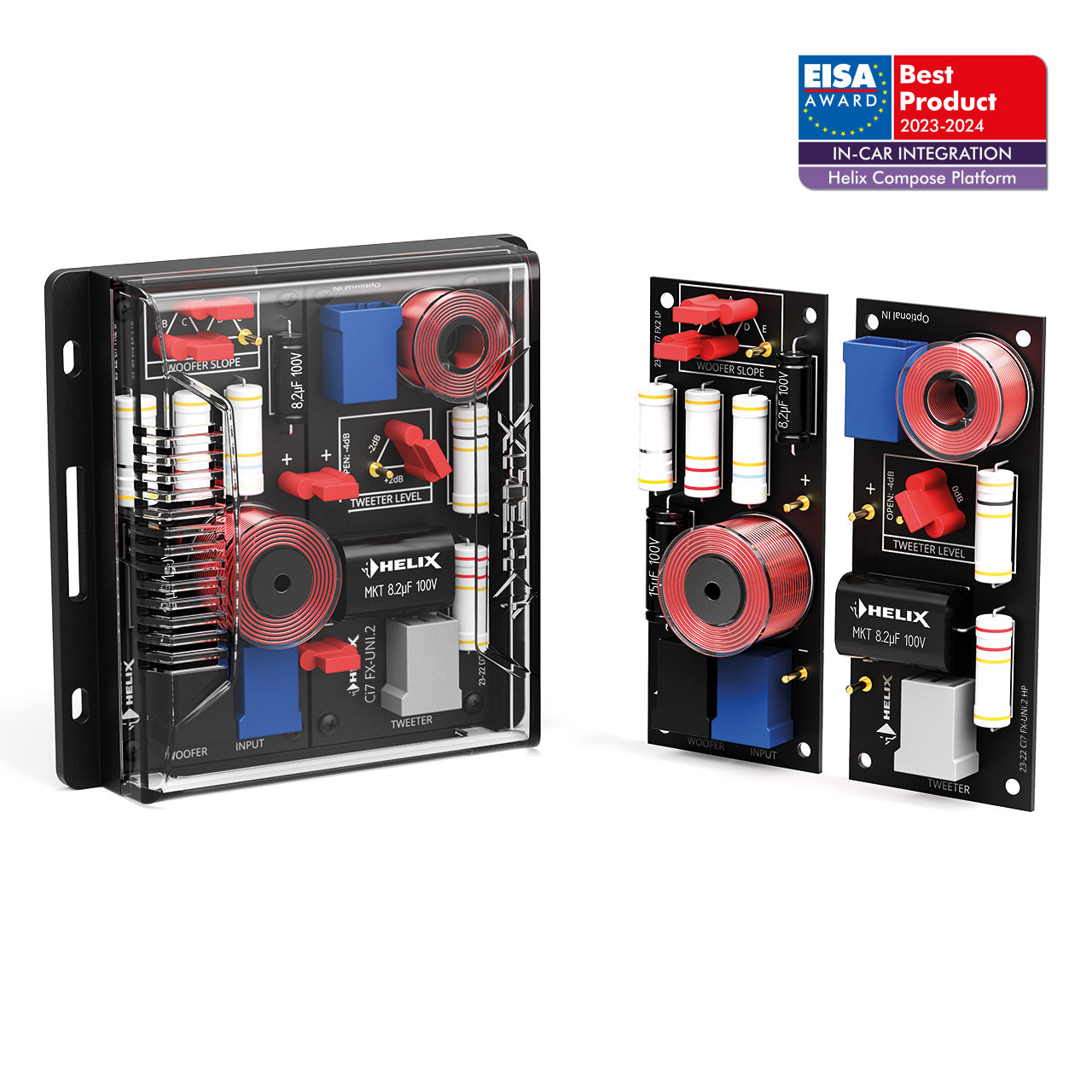

A universal 2-way high-end Flex-Crossover designed for the HELIX COMPOSE i7 speaker system. It features a 4-stage tweeter level adjustment and a 4-stage woofer lowpass filter, both with a 12 dB slope, for precise tuning to your vehicle's acoustics. The separable design allows flexible installation in cars with separate tweeter and woofer mounting positions. COMPOSE Connect technology provides a secure, automotive-grade plug-in connection that eliminates the need for soldering. High-grade components ensure clean frequency separation and a harmonious sound image.
Type: 2-Way Flex-Crossover
Slope: Tweeter: 12 dB highpass, Woofer: 12 dB lowpass
Tweeter Level Adjustment Range: -4 dB to +2 dB
Woofer Lowpass Adjustment: 4-stage
Dimensions (W x H x D): 155 cm x 50 cm x 265 cm
Weight: 0.94 kg
Compatible Tweeters: Ci7 T20FM-SC, Ci5 T25FM-CA
Compatible Midrange/Midbass/Woofers: Ci7 M100FM-S3, Ci7 W130-S3, Ci7 W165FM-S3, Ci7 W200FM-S3, Ci5 W165FM-S3
Connection Technology: COMPOSE Connect, WireKit compatible
Scope of Delivery: 2 x Ci7 FX-UNI.2, 2 x COMPOSE Connect Kit, 4 x PCB sleeves, 1 x Mounting material
