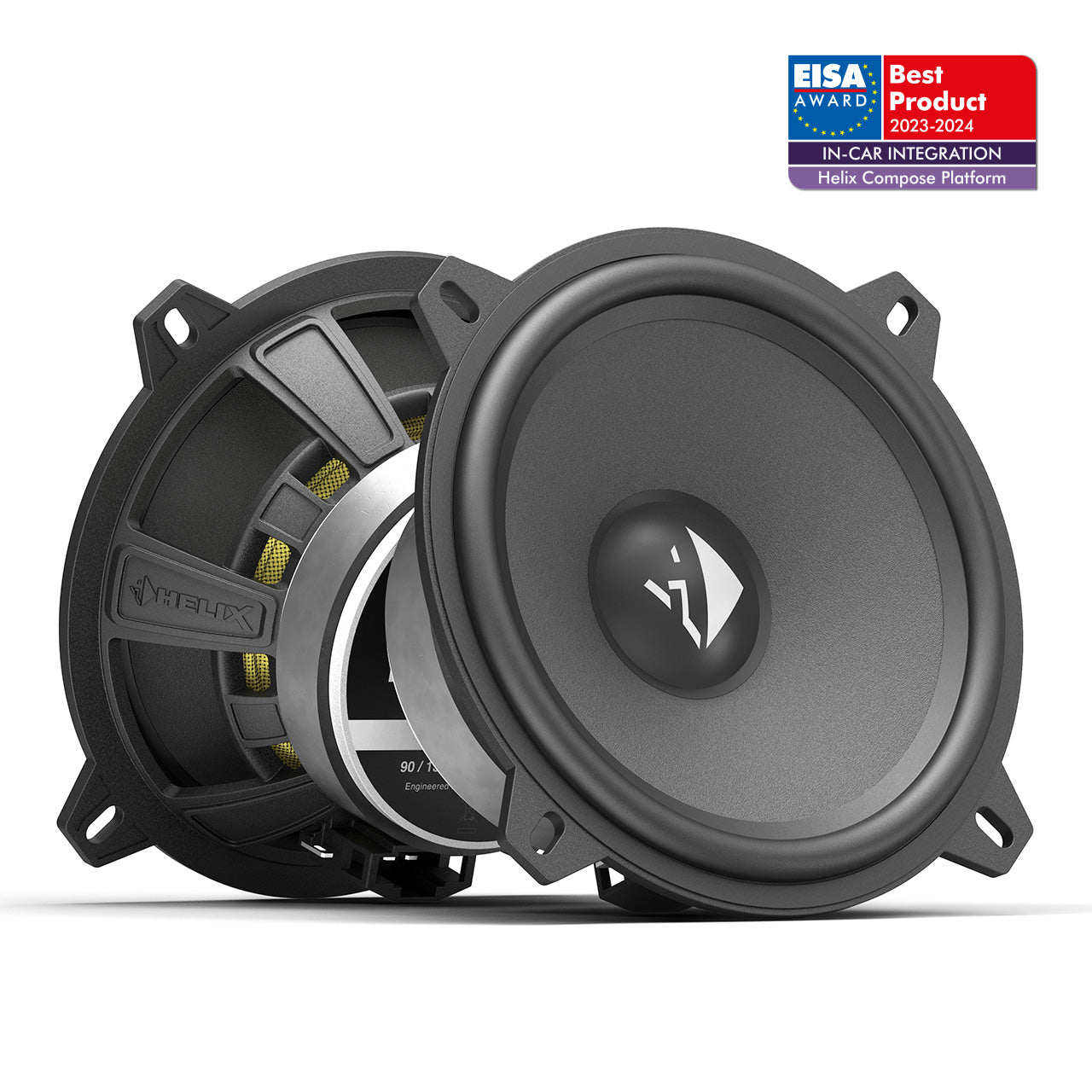

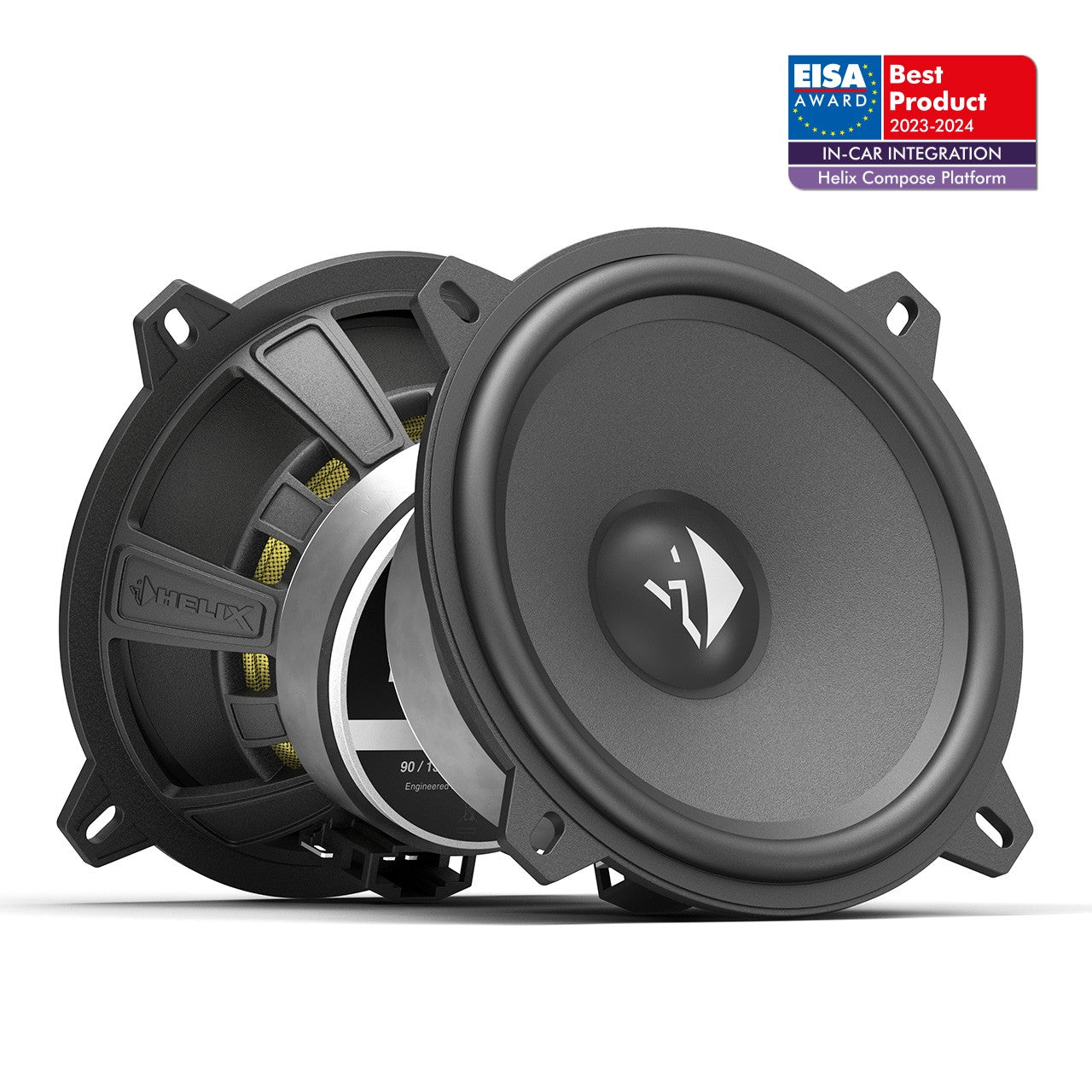

HELIX Ci3 W130-S3 130mm Performance Woofer 3 Ohm
£129.00
Sale price
£129.00
Regular price
Skip to product information
This 130mm performance midbass driver from the HELIX COMPOSE i3 series combines high efficiency with exceptional sound quality. The innovative Cenosphere-coated paper cone delivers precise and detailed audio reproduction, while the glass-bead reinforced high-tech polymer composite basket ensures maximum rigidity with minimal resonance. Perfectly matched to HELIX and MATCH amplifiers, the 3 Ohm technology provides a noticeable increase in output and maximum sound pressure. The ProConnect terminal allows for secure connections using conventional speaker cable or optional WireKits for a plug-and-play upgrade.
Type: Midbass Driver
Size: 130 mm (5.25")
Impedance: 3 Ohm
Power Handling RMS / Max: 90 / 135 Watts
Frequency Response: 80 Hz - 4,000 Hz
Sensitivity: 91 dB @ 2.83V/1m
Voice Coil Diameter: 25 mm
Cone Material: Paper with Cenosphere Coating
Basket Material: Glass-Bead Reinforced Polymer Composite
Mounting Diameter: 116.5 mm
Mounting Depth: 55.4 mm
DC Resistance (Re): 3.1 Ohm
Resonant Frequency (Fs): 89 Hz
Mechanical Q Factor (Qms): 3.11
Electrical Q Factor (Qes): 0.97
Total Q Factor (Qts): 0.74
Equivalent Volume (Vas): 4.6 L
Max Linear Cone Excursion (Xmax): +/- 3.2 mm
Connection Type: ProConnect Terminal
