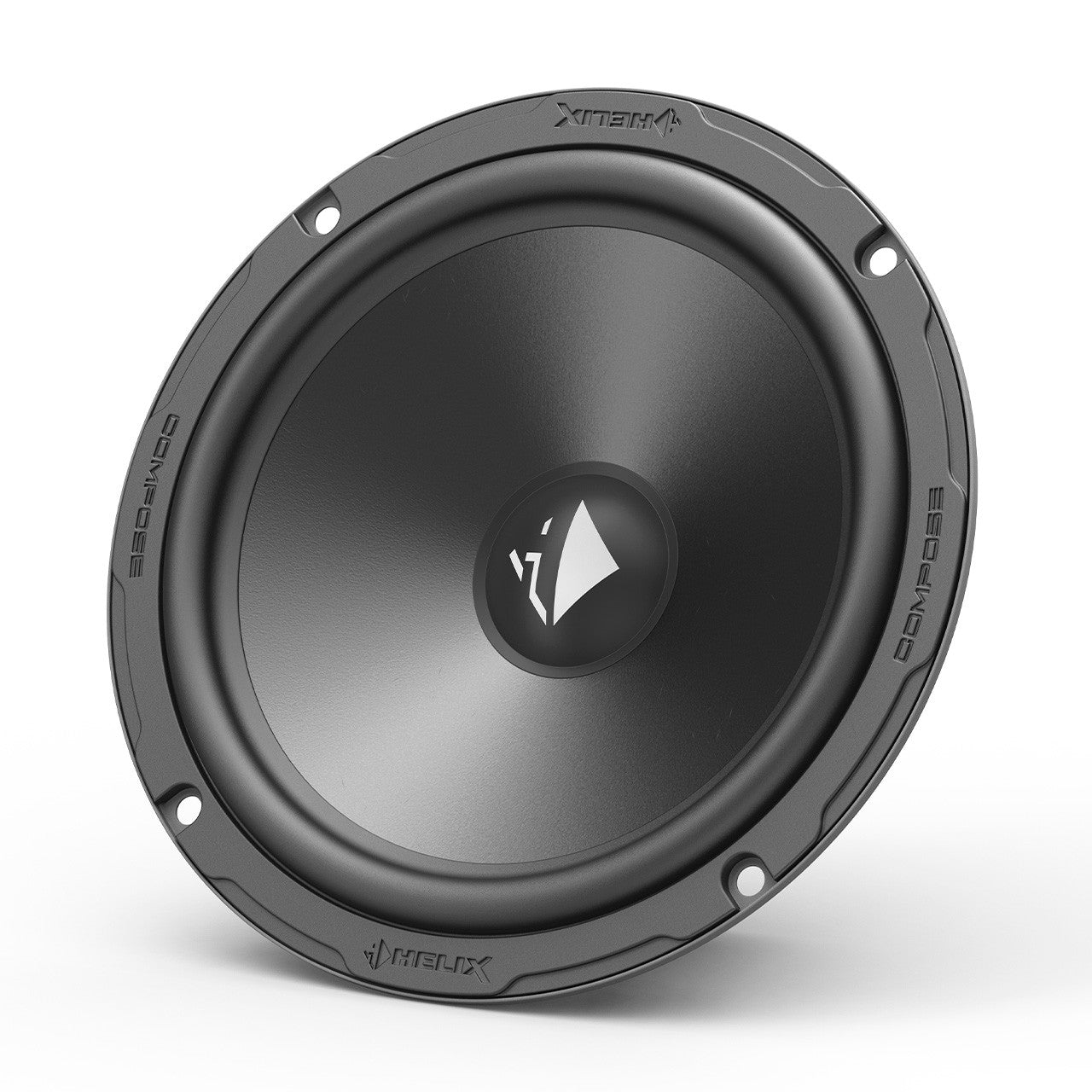

HELIX CB W165-S3 COMPOSE BASIC 165mm Midbass Speaker
£94.00
Sale price
£94.00
Regular price
Skip to product information
The HELIX COMPOSE BASIC series brings a 165mm midbass driver designed for modern vehicle integration. Its lightweight polypropylene cone delivers stiffness for detailed sound, while the 3-ohm impedance boosts amplifier efficiency. A sturdy steel basket with ventilation holes keeps the voice coil cool during demanding use. The powerful magnet system ensures tight impulse control, and the polyurethane dustcap smooths the upper midrange response. Compact enough for tight spaces, this driver pairs perfectly with HELIX and MATCH amplifiers for a dynamic audio upgrade.
Type: Midbass driver
Size: 165 mm / 6.5 inch
Impedance: 3 Ohm
Power handling RMS: 80 Watts
Power handling max: 120 Watts
Frequency response: 60 Hz - 3,500 Hz
Sensitivity: 92 dB @ 2.83 V/1m
Cone material: Injected polypropylene
Surround material: Rubber
Dustcap material: Polyurethane
Voice coil diameter: 25 mm
Magnet system: Powerful ferrite
Outer diameter: 166 mm
Installation diameter: 143 mm
Installation depth: 61.4 mm
DC resistance: 3.0 Ohm
Resonance frequency: 62 Hz
Mechanical Q factor: 4.50
Electrical Q factor: 0.90
Total Q factor: 0.75
Equivalent air volume: 14.5 L
Max. linear excursion: +/- 2.5 mm
Cone area: 141 cm²
