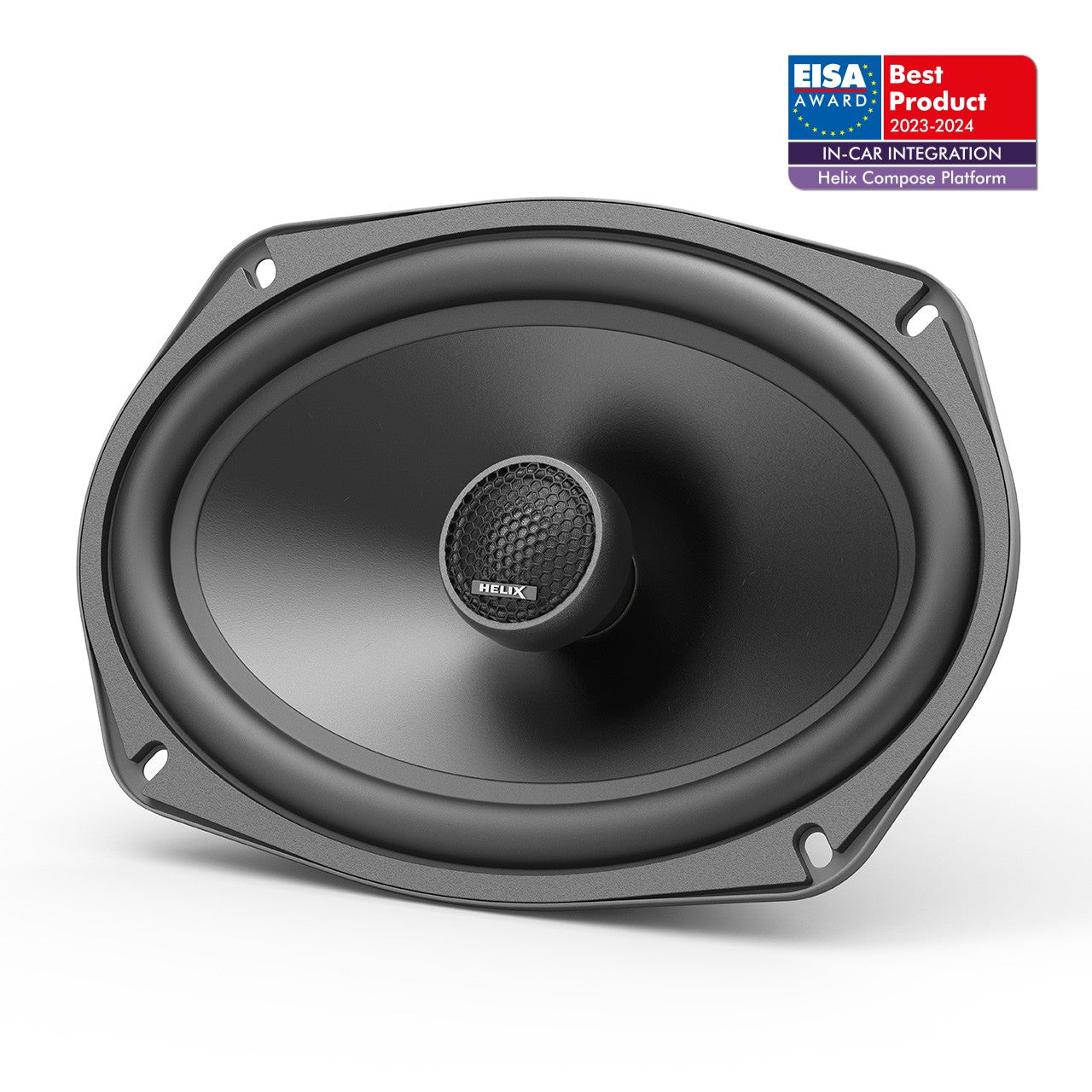

HELIX CB C690.2-S3 Compose Basic 2-Way Coaxial Speaker System 3 Ohm
£149.00
Sale price
£149.00
Regular price
Skip to product information
The HELIX CB C690.2-S3 is a 2-way coaxial speaker from the Compose Basic line, designed to deliver high efficiency and exceptional sound in any vehicle. It pairs a 6x9 inch polypropylene woofer with a 1 inch silk dome tweeter for powerful bass and crystal-clear highs. The 3 Ohm impedance technology maximises amplifier output, while the compact build makes installation straightforward even in tight spaces. This system includes two speakers, grilles, and mounting hardware for a complete upgrade.
Type: 2-way coaxial system
Woofer Size: 160 x 230 mm (6 x 9 inch)
Tweeter Size: 25 mm (1 inch)
Tweeter Type: Silk dome with neodymium magnet
Cone Material: Injected polypropylene
Power Handling RMS: 100 Watts
Power Handling Max: 150 Watts
Frequency Response: 50 Hz - 22,000 Hz
Impedance: 3 Ohm
Sensitivity: 94 dB @ 2.83V / 1m
Outer Diameter: 235.0 x 164.0 mm
Installation Diameter: 218.4 x 150.6 mm
Installation Depth: 74.8 mm
Crossover: Integrated, 6 dB highpass
Woofer Voice Coil Diameter: 25 mm
Woofer Max Linear Excursion: +/- 2.0 mm
Weight: 3.22 kg
