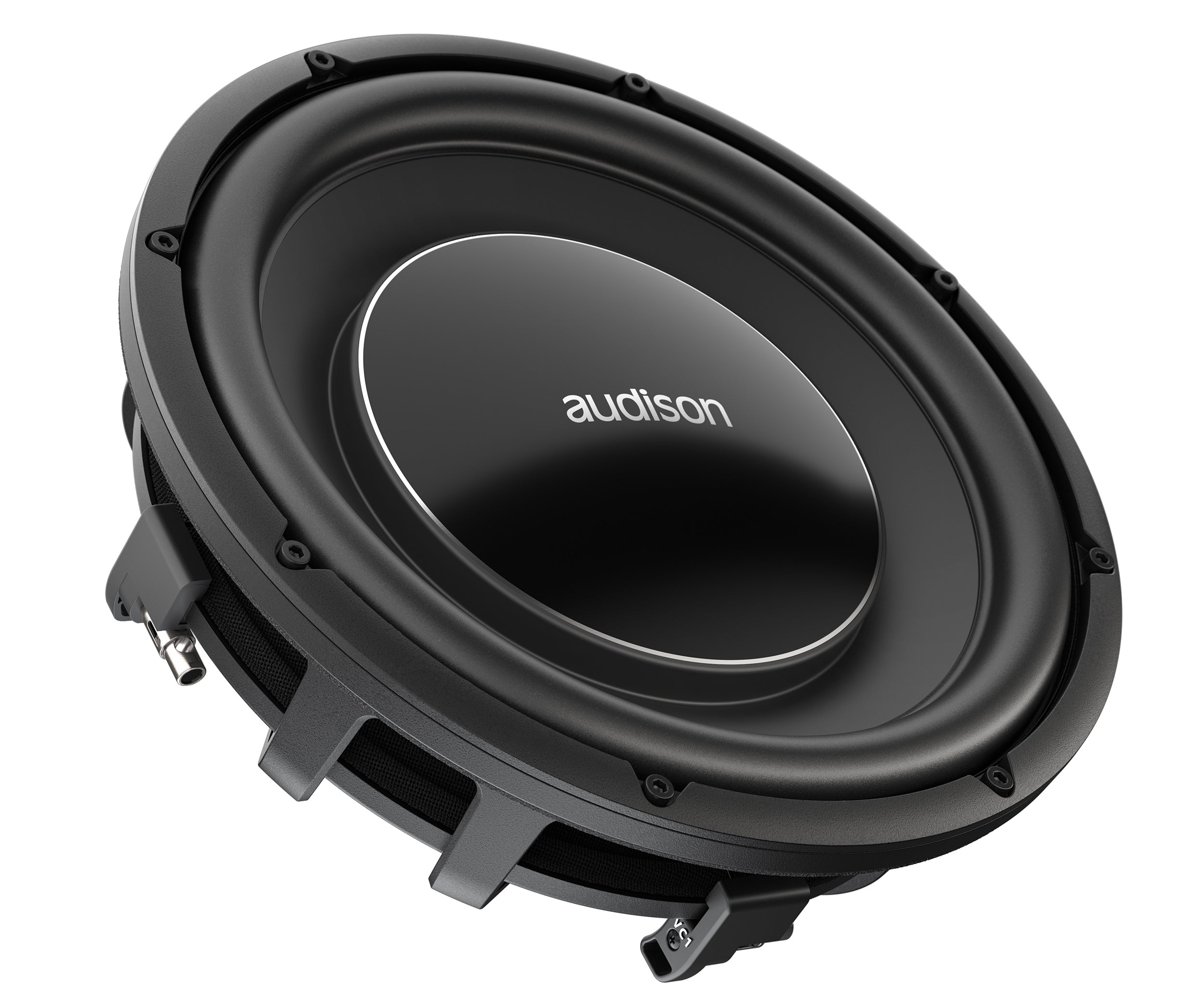

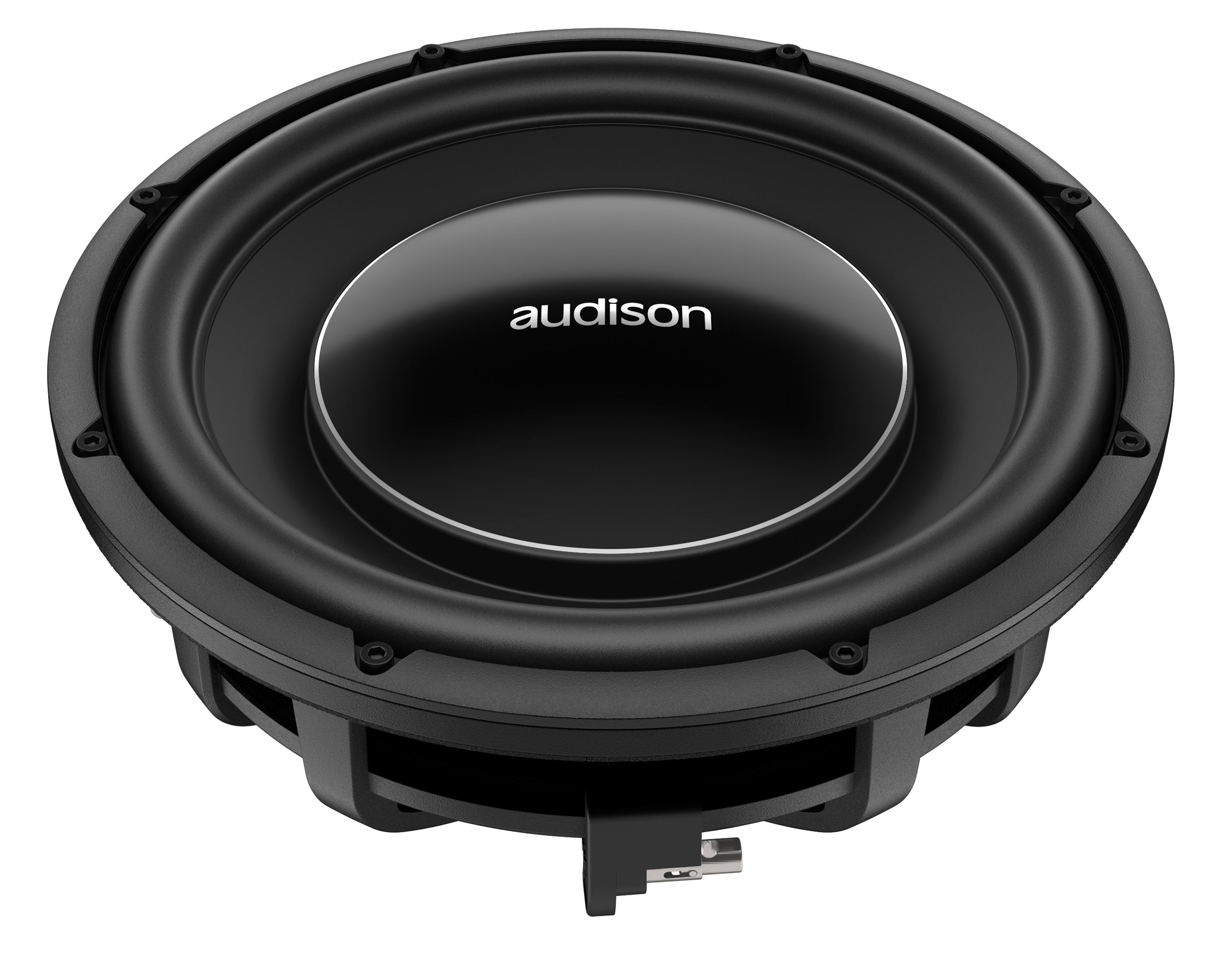

Audison VOCE II AV 12 D4 II Subwoofer Driver 300mm
£449.00
Sale price
£449.00
Regular price
Skip to product information

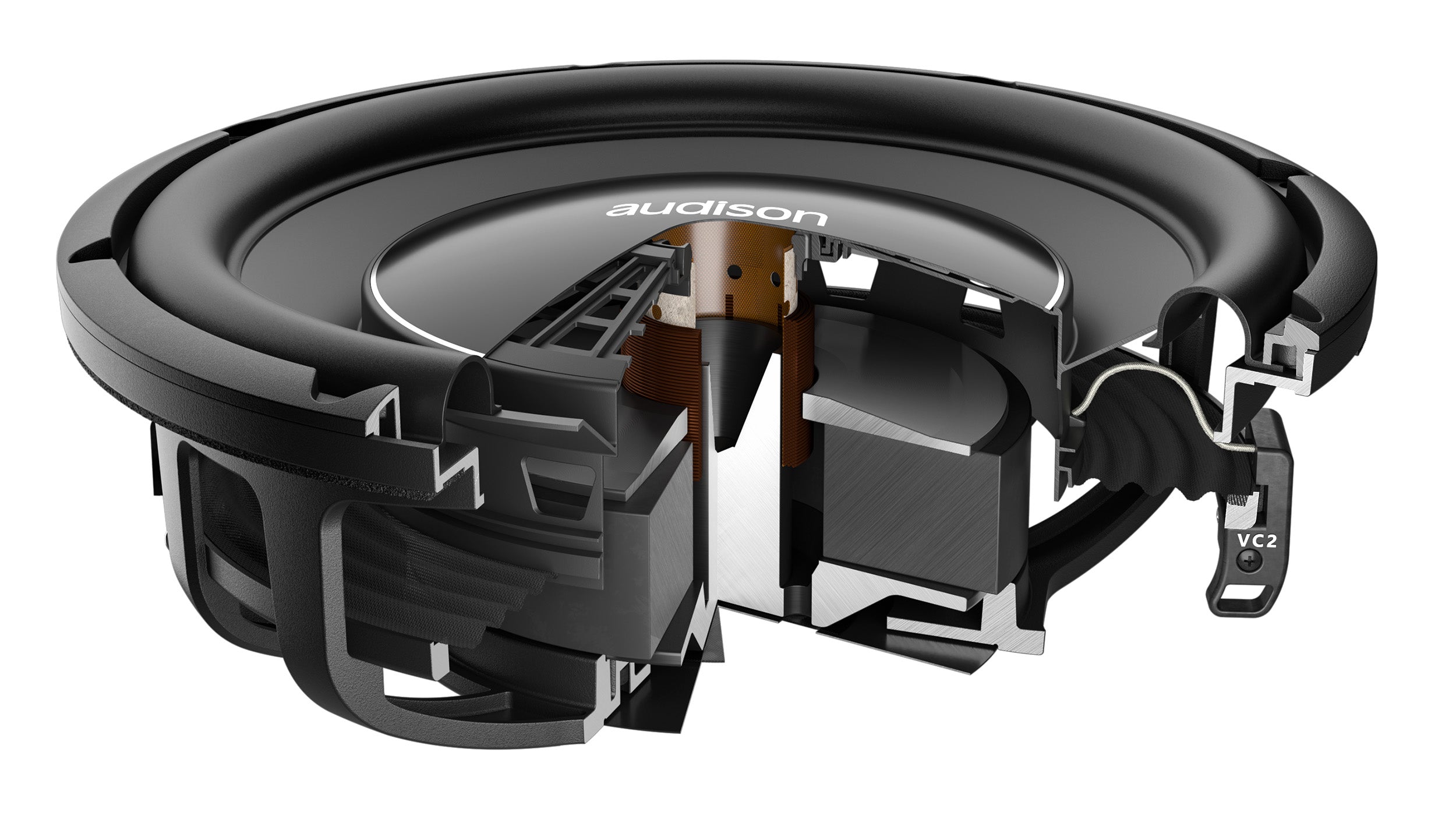

The AV 12 D4 II delivers deep, controlled bass with the unmistakable VOCE II sound signature. Designed for sealed enclosures, it features a dual 4-ohm voice coil and a 1.5-inch CCAW voice coil for efficient energy transfer. The Radial Reinforcement Framework enhances cone stability, while the die-cast aluminium basket includes cable-routing hooks. Spring-loaded terminals accept high-current 8 AWG cables, and a protective metal mesh grille is included.
Audison VOCE II AV 12 D4 II Subwoofer Driver 300mm
£449.00
Sale price
£449.00
Regular price
Nominal Diameter: 300 mm (12 in)
Impedance: 4+4 Ohm (Dual Voice Coil)
Peak Power Handling: 1100 W
Continuous Power Handling (RMS): 550 W
Sensitivity: 84.5 dB
Frequency Response: 25 - 400 Hz
Voice Coil Diameter: 38.6 mm (1.5 in)
Voice Coil Material: CCAW (Copper-Clad Aluminum Wire)
Former Material: Glass Fibre
Cone Material: Polypropylene
Surround Material: Nitrile Rubber (NBR)

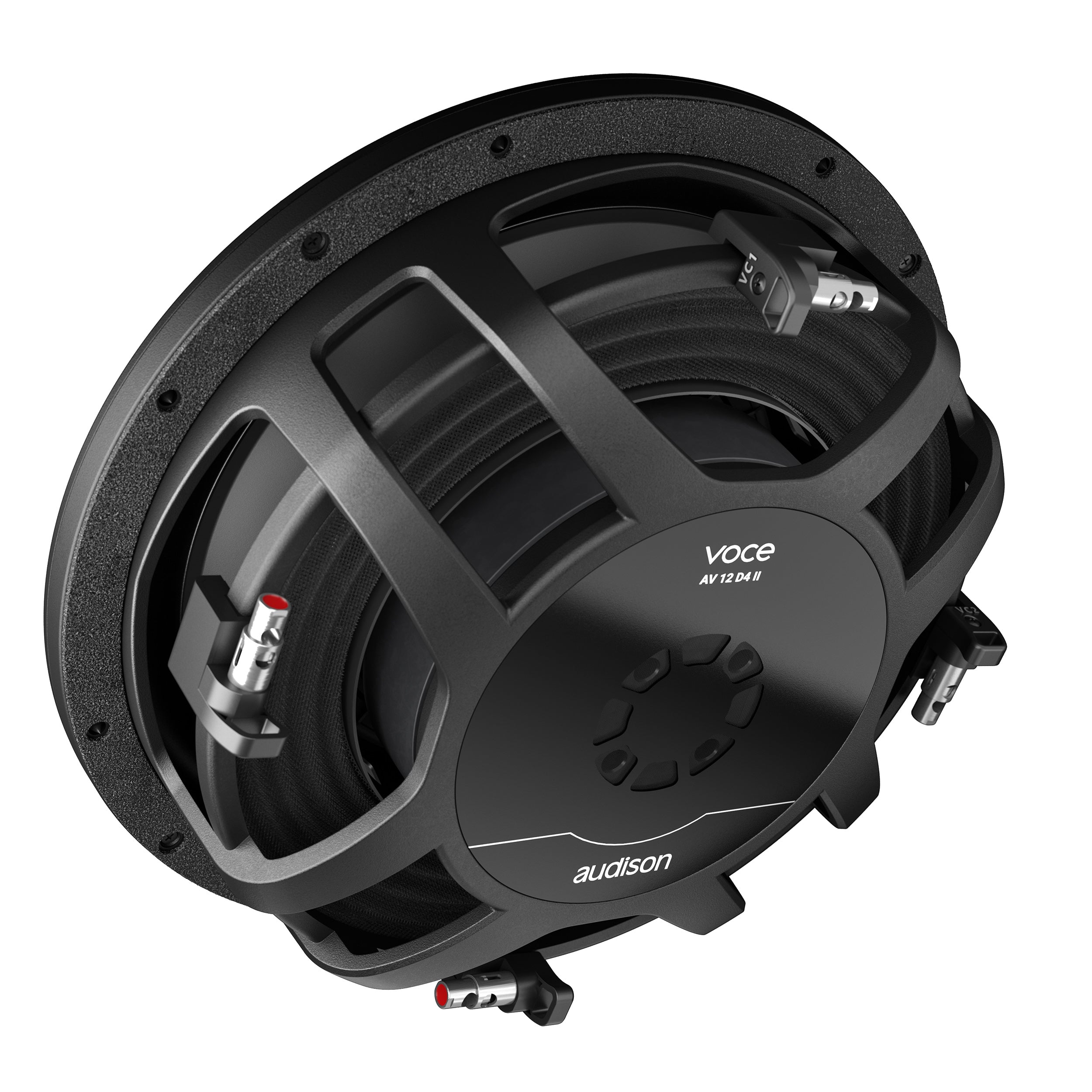

Chassis Material: Die-cast Aluminium
Magnet Material: Ferrite
Xmax (Linear Excursion): 16.8 mm
Xmech (Mechanical Excursion): 20 mm
Recommended Sealed Enclosure Volume: 21 litres
Recommended Tuning Frequency: 45 Hz
Weight: 6.6 kg

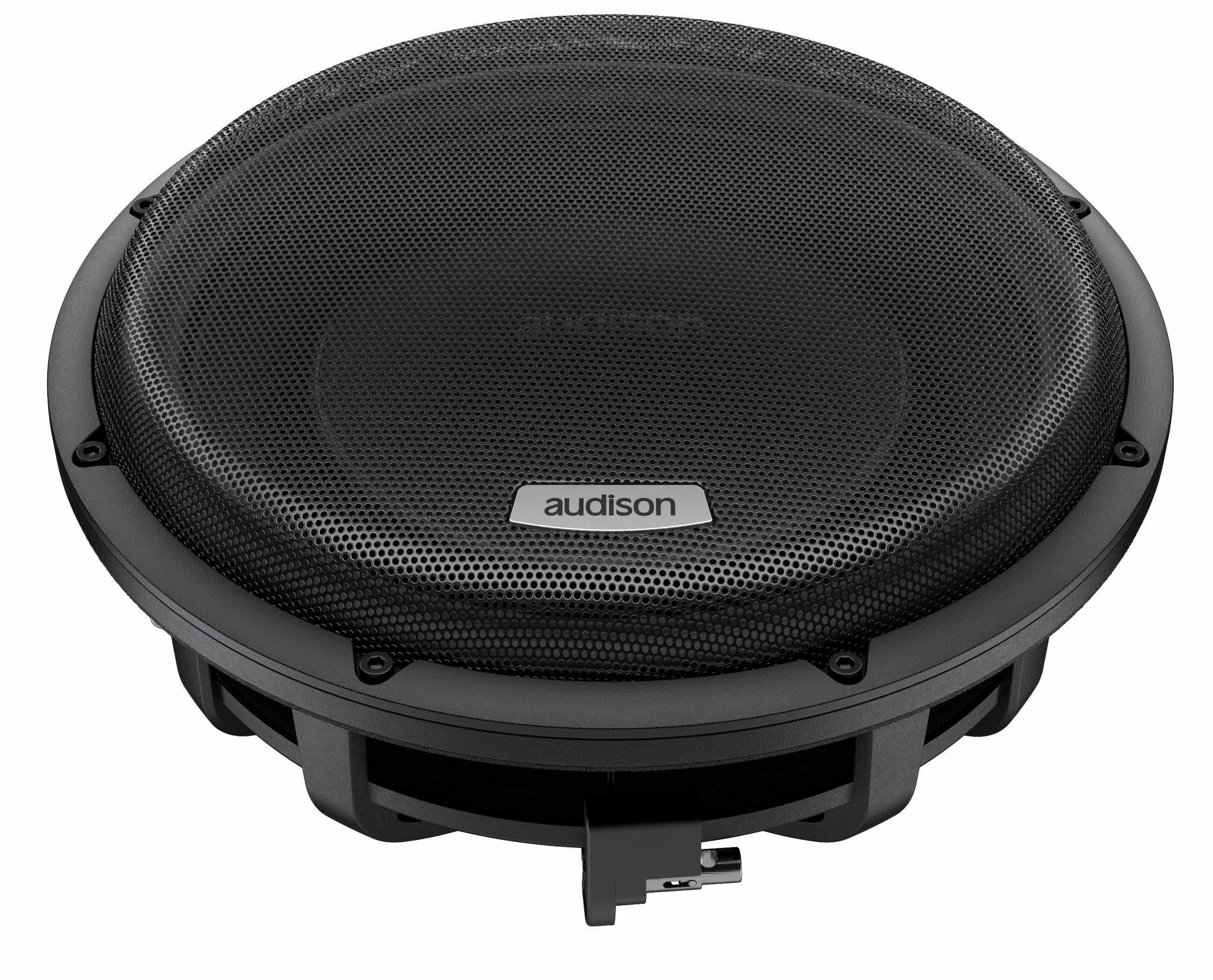

Grille Included: Yes (Black Metal Mesh)
Terminals: Spring-loaded (8 AWG compatible)
