Audison Thesis TH Quattro 4-Channel A-Class Car Amplifier 1040W

Audison Thesis TH Quattro 4-Channel A-Class Car Amplifier 1040W

£3,999.00
£3,999.00
Skip to product information
Audison Thesis TH Quattro 4-Channel A-Class Car Amplifier 1040W
Audison Thesis TH Quattro 4-Channel A-Class Car Amplifier 1040W

Audison Thesis TH Quattro 4-Channel A-Class Car Amplifier 1040W
£3,999.00
£3,999.00

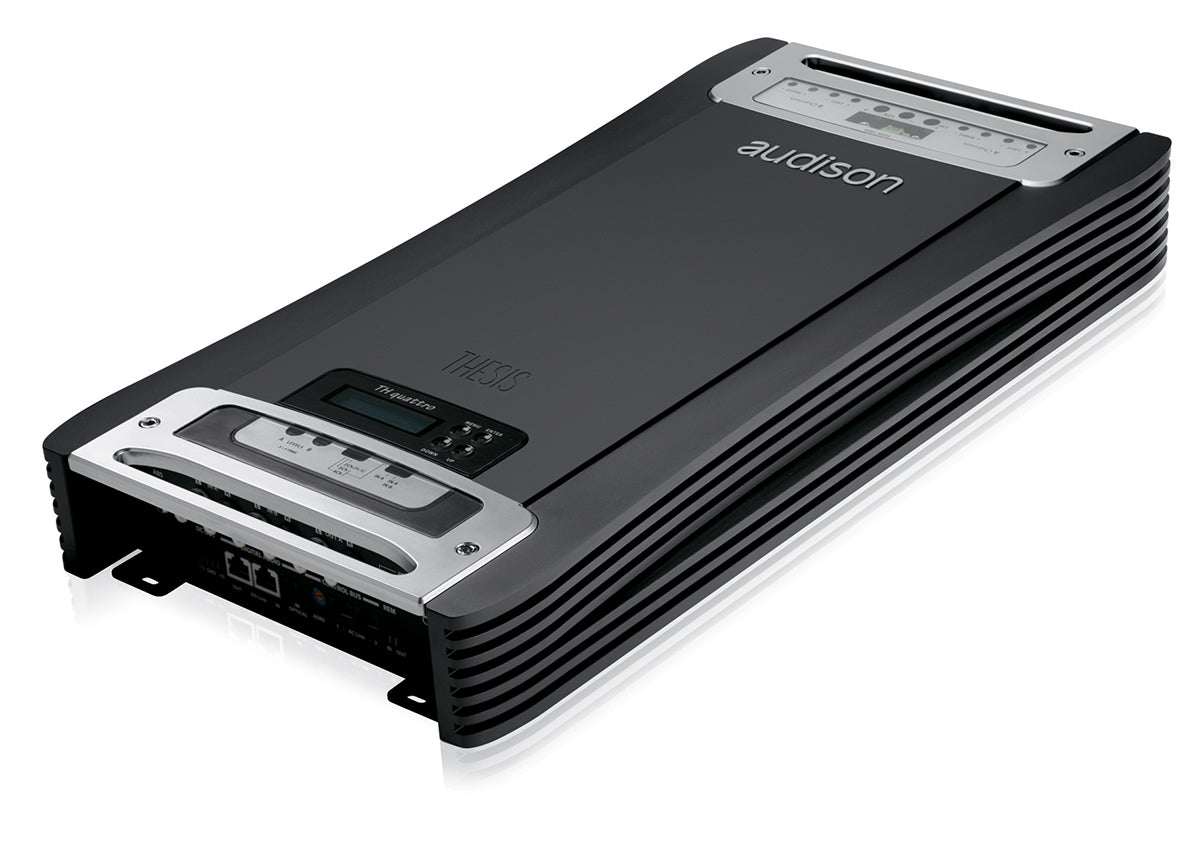

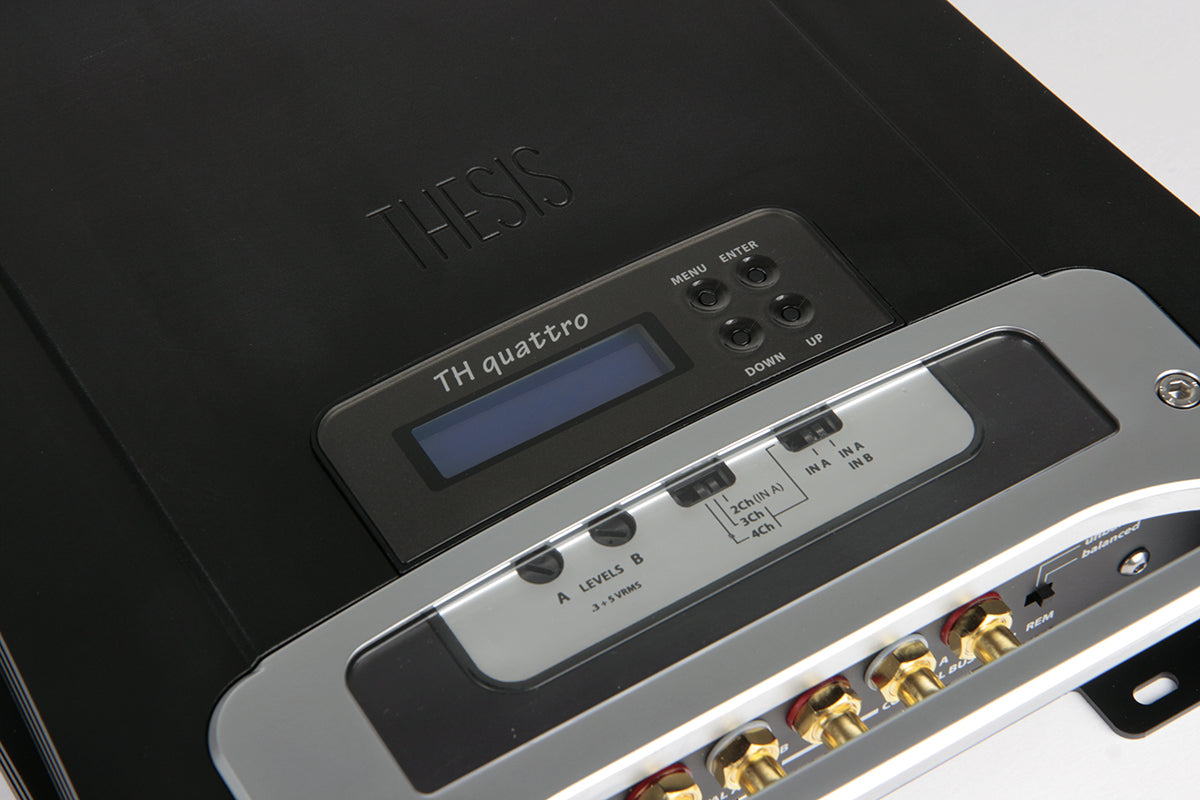

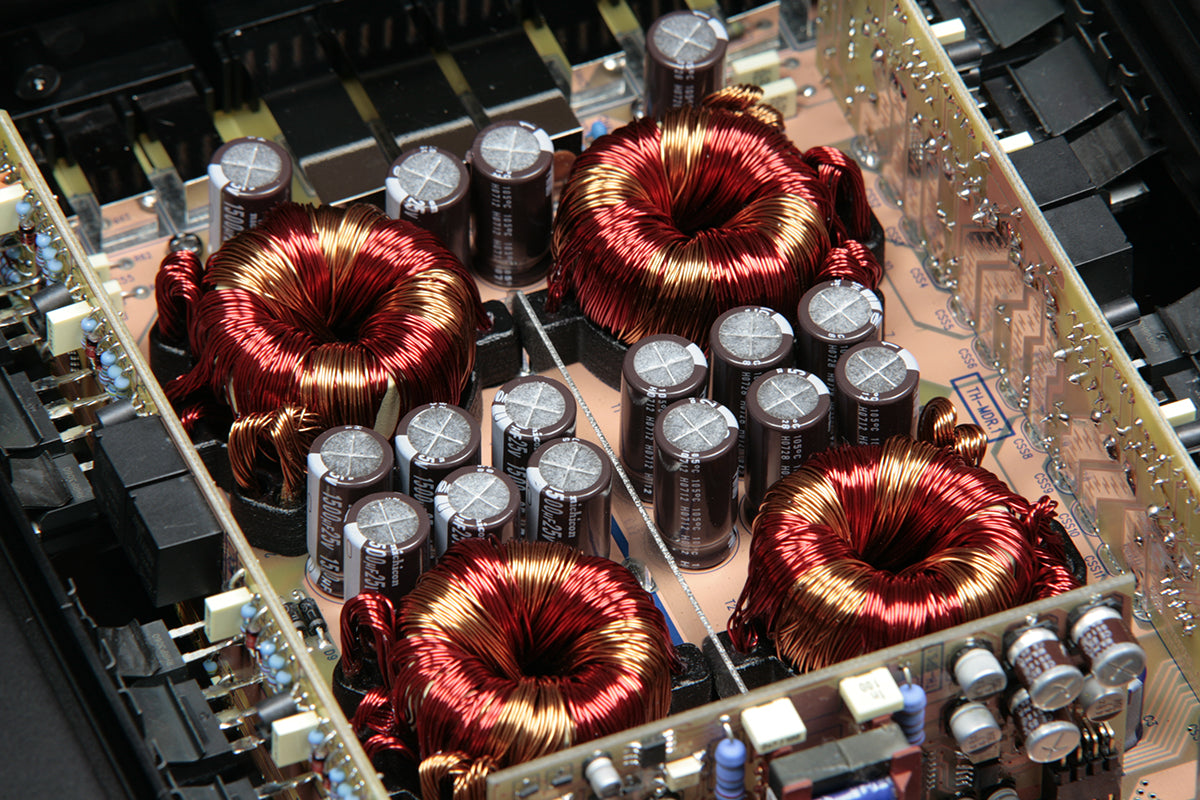

The TH Quattro is a four-channel amplifier that blends premium analogue engineering with advanced digital control. Its Full DA HD technology and Hi-Res Audio certification deliver exceptional in-car sound reproduction. A solid aluminium chassis and CNC construction ensure lasting durability. The amplifier features four Synchro-PWM power supplies for a dual-mono configuration with fast transient response. Digital control via the integrated panel, optional DRC, or PC software allows limitless system configuration.

Channels: 4
Amplifier Class: A-Class
Total Power RMS: 1040 W
Power Output (4 Ch @ 4 Ohms): 160 W x 4
Power Output (4 Ch @ 2 Ohms): 260 W x 4
Power Output (4 Ch @ 1 Ohm): 340 W x 4
Distortion (THD): 0.03%
Signal-to-Noise Ratio: 104 dBA
Frequency Response: 5 - 70,000 Hz
Damping Factor: 80
Input Sensitivity (Pre-In): 0.3 - 4.8 VRMS
Input Impedance (Pre-In): 15 kOhm
Power Supply Voltage: 11 - 15 VDC
Current Consumption (Max Musical Power): 105 A
Fuse Rating: 100 A

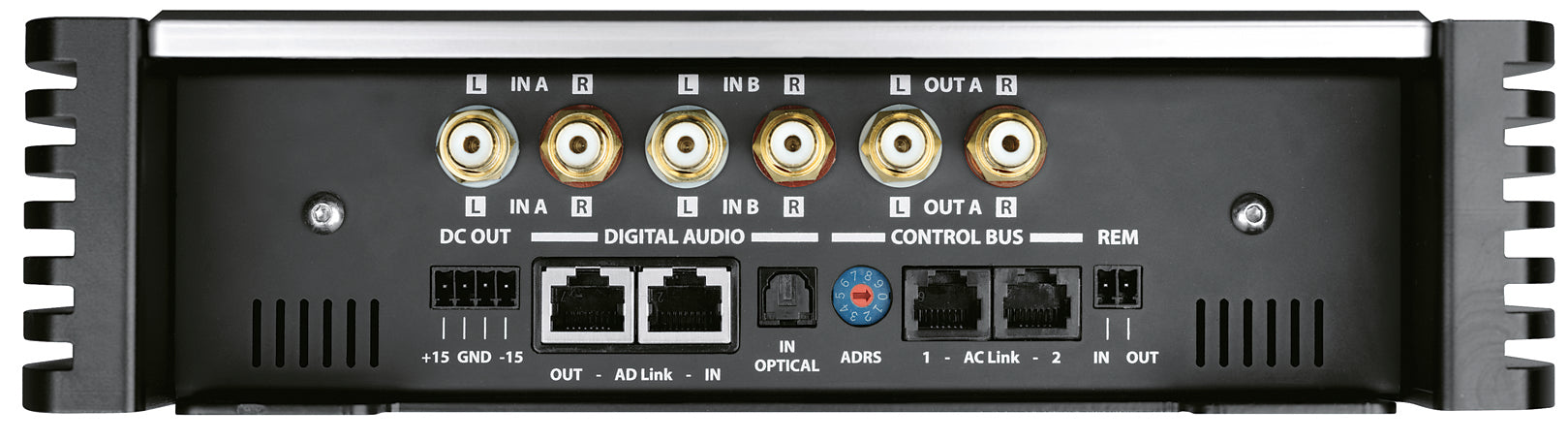

Input Type: PRE - S/PDIF (192 kHz / 24 bit) Optical and AD Link

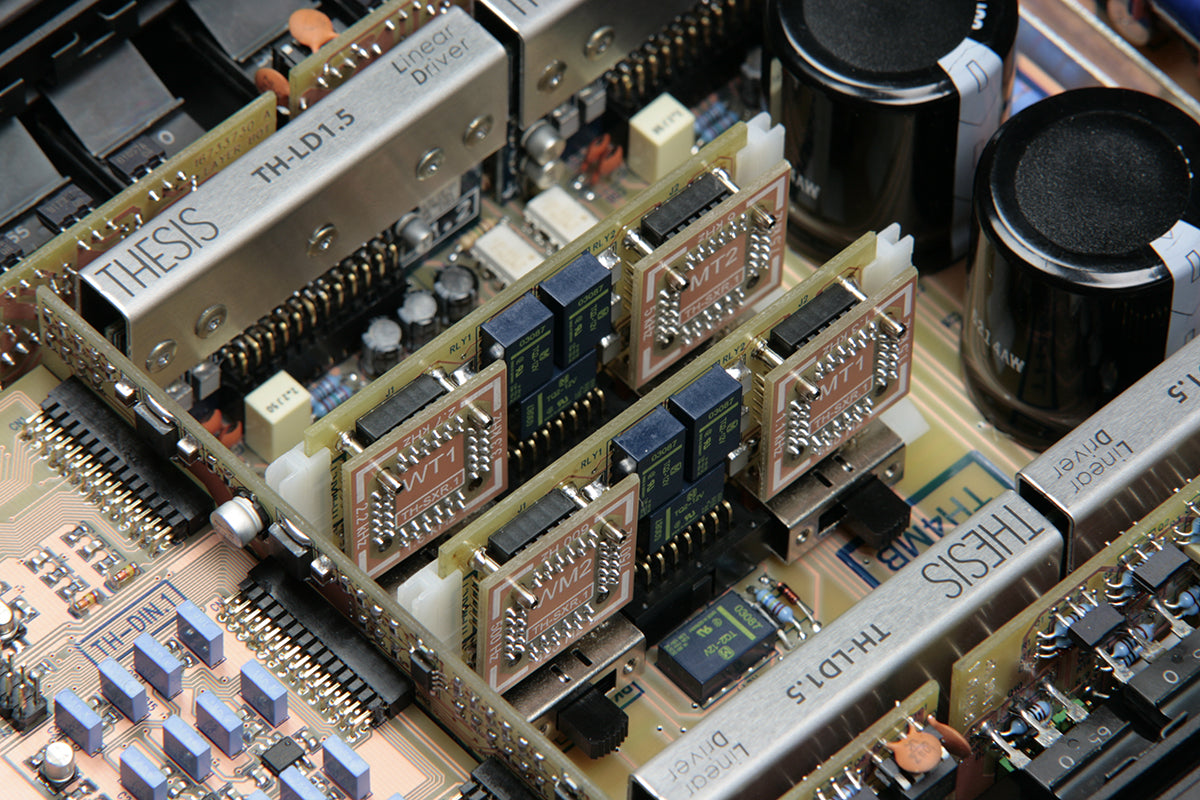

Crossover: Removable kit: Hi-pass / Lo-pass / Bandpass 12/24 dB
Weight: 10.3 kg

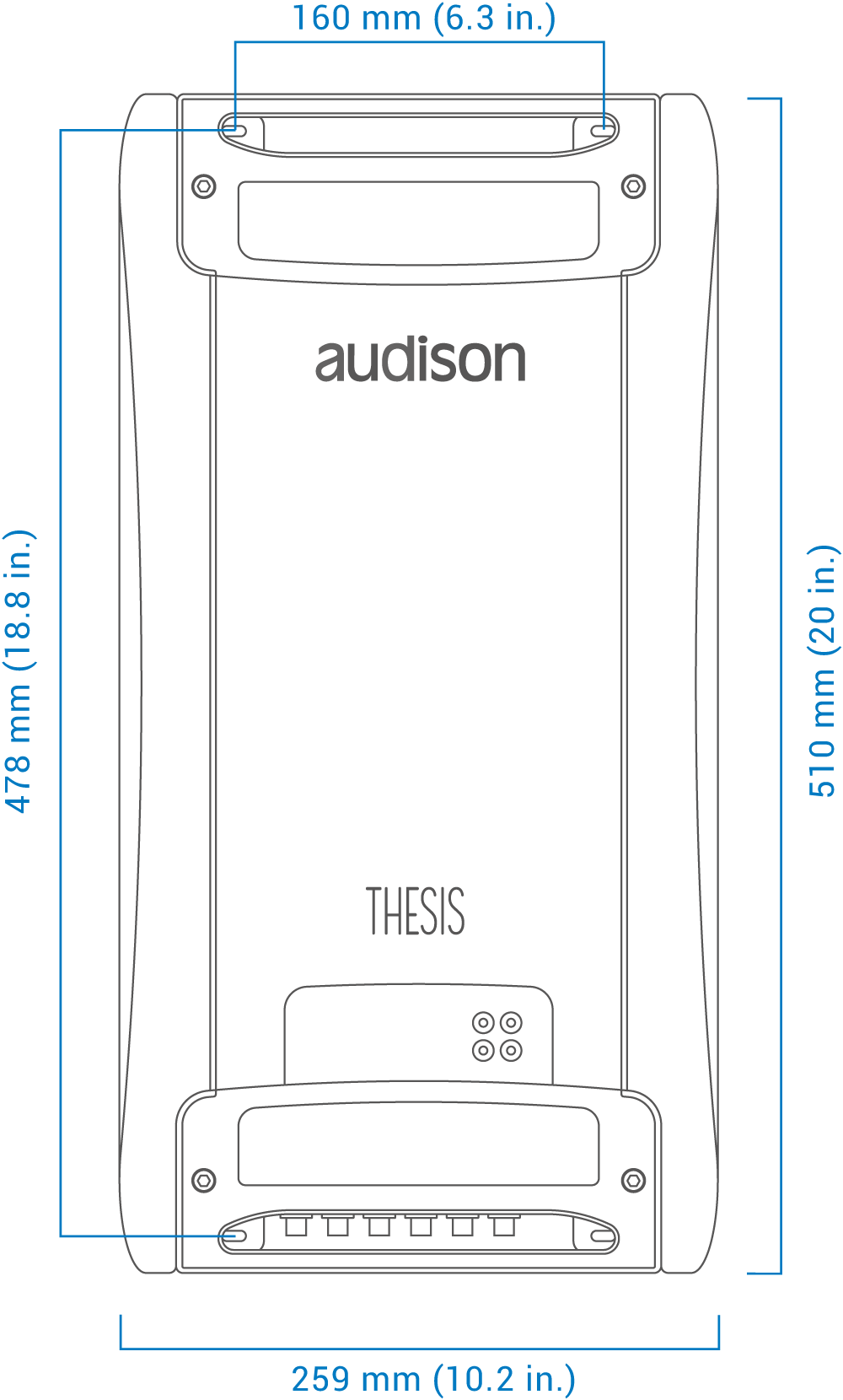

Dimensions (A x B x C x D): 510 x 478 x 259 x 160 mm
Chassis Material: Extruded aluminium, CNC machined
Remote Output: 12 VDC (20 mA)
Remote Input: 7 - 15 VDC (1 mA)
