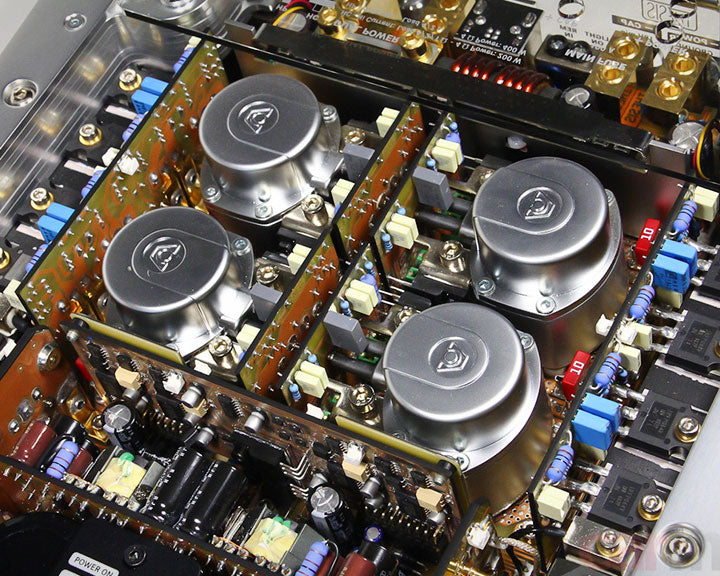

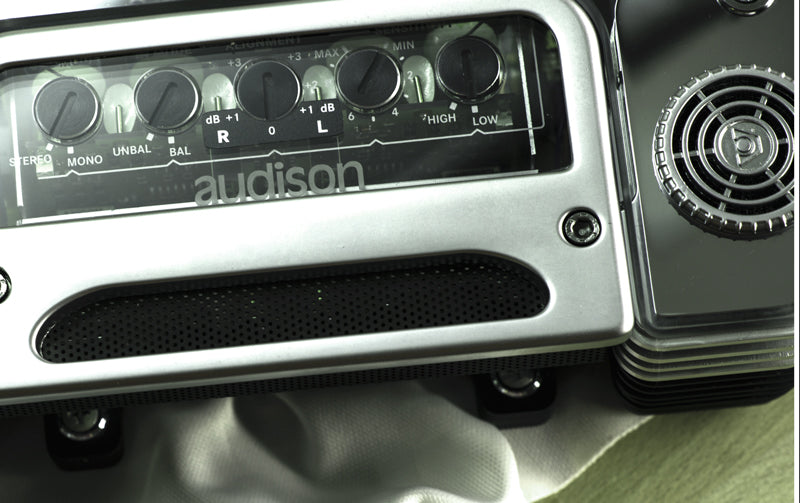

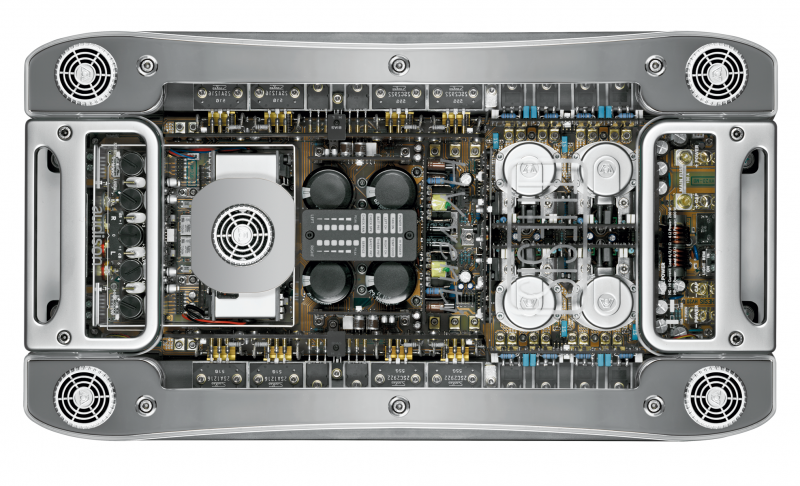

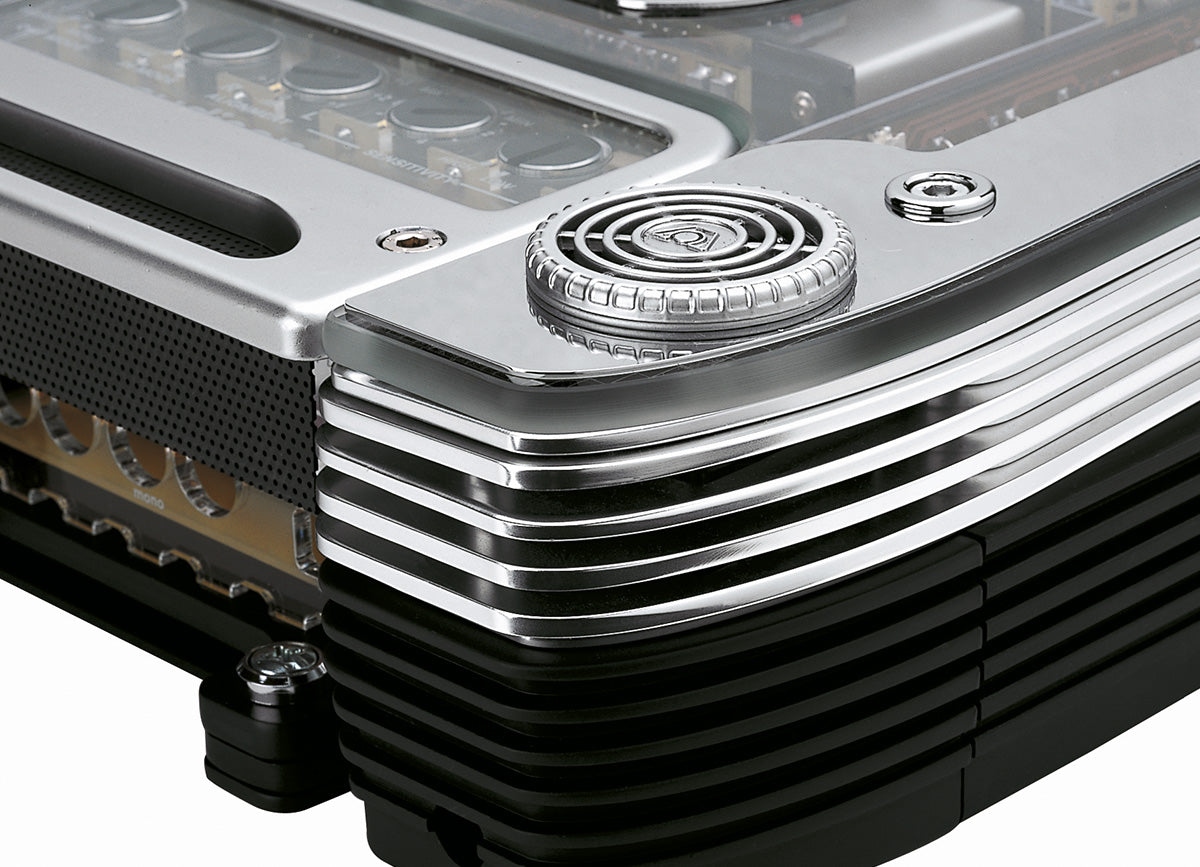

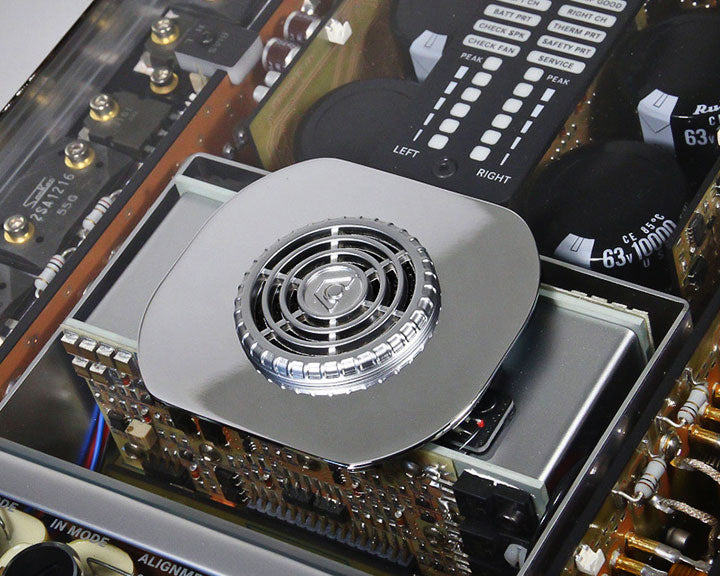

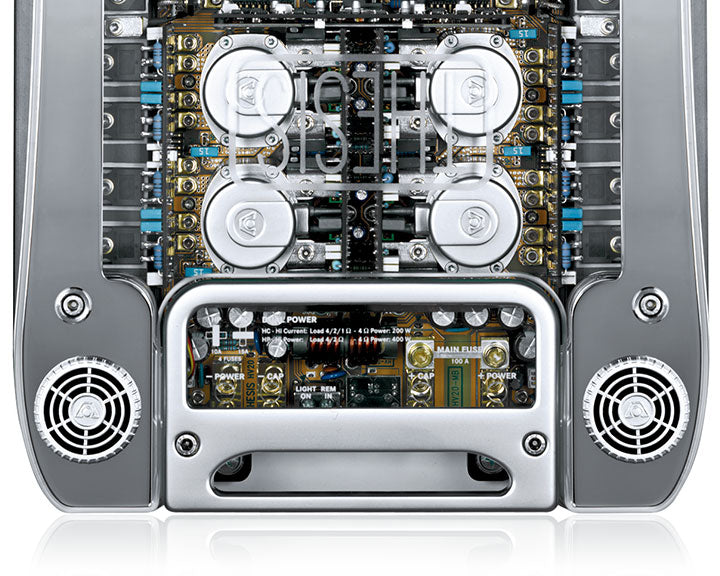

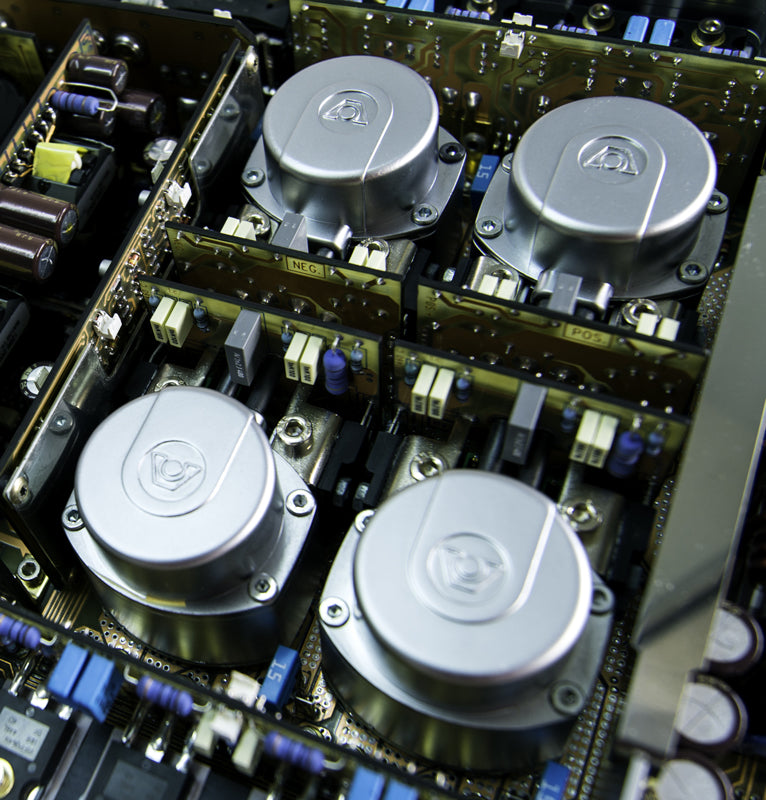

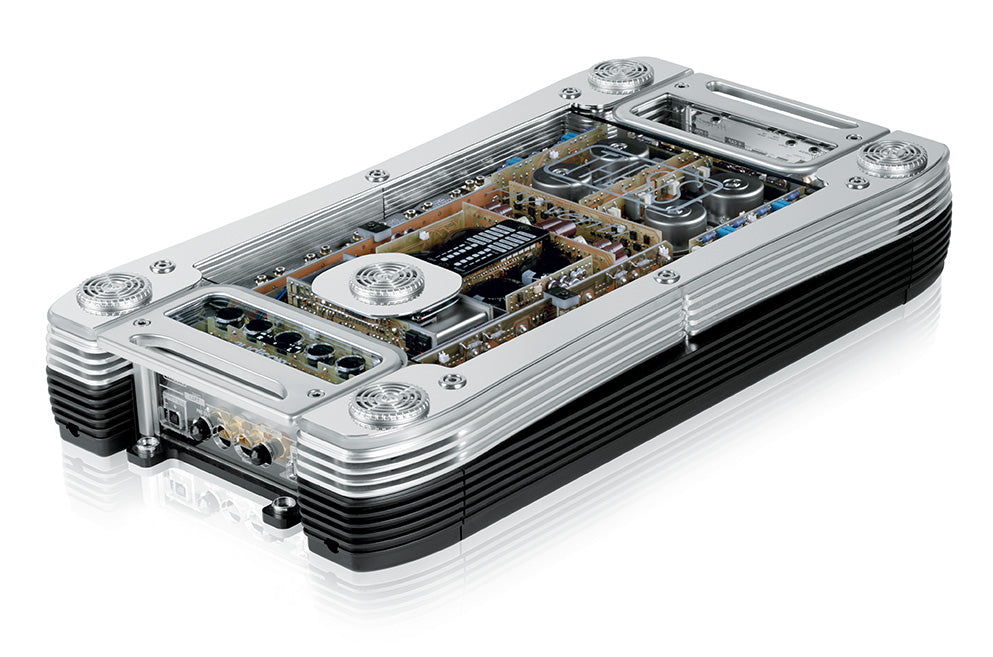

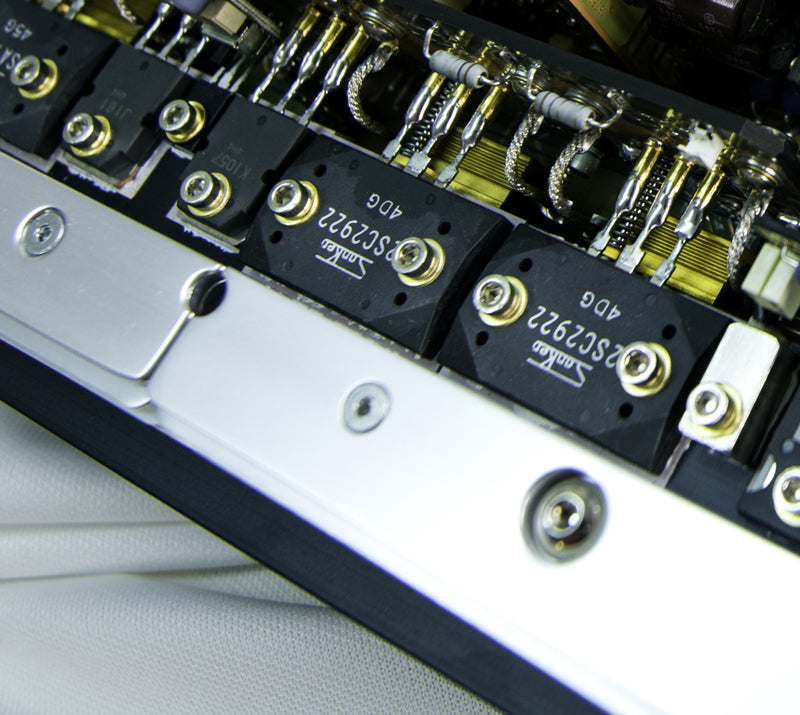

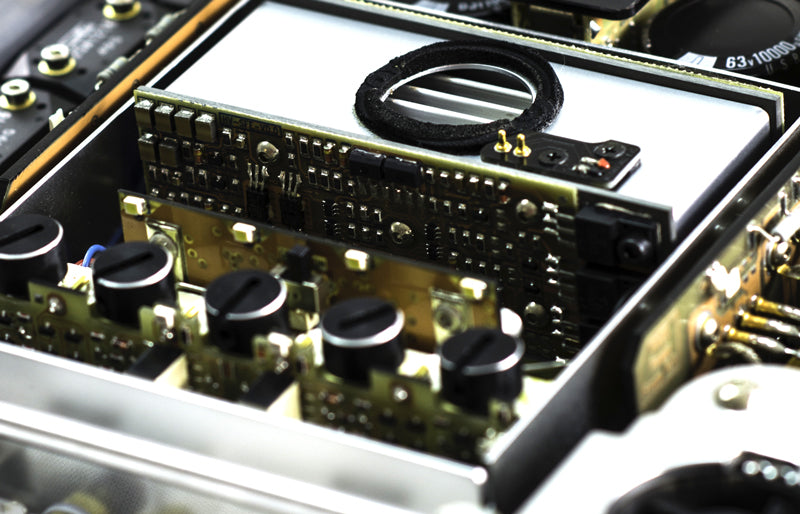

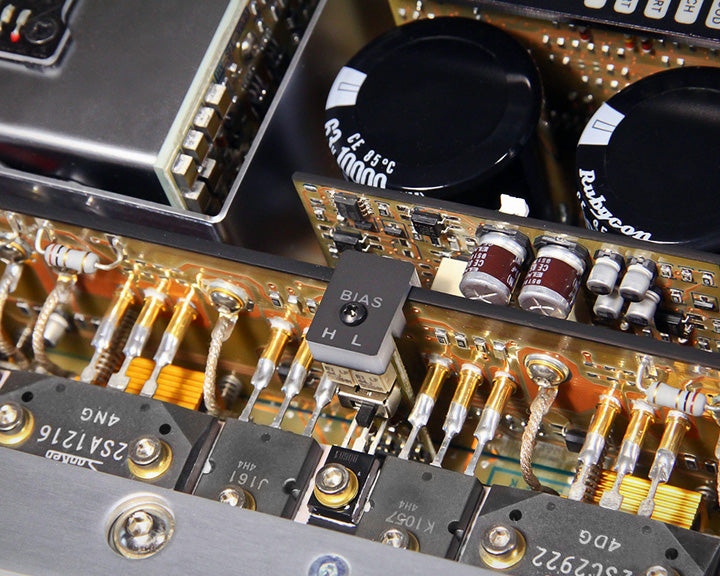

The Audison Thesis HV Venti is a Dual Mono stereo amplifier built with four Synchro-PWM power supplies for lightning-fast current response. Its hybrid MOSFET-BJT output stage uses discrete IGBT topology, boosting Class A efficiency and heat dissipation. The Dual Power function lets you switch between Hi Current and Hi Power modes to match your speakers. A fully balanced JFET preamplifier and progressive cooling system keep performance stable and distortion below 0.05%. Housed in a scratch-resistant tempered glass chassis with LED lighting, it delivers 1600W total RMS power. This is Car Audio excellence without compromise.

Channels: 2
Class: A-Class
Total Power RMS: 1600 W
Output Power (RMS) @ 14.4 VDC, 1% THD: 2 Ch: 400W x 2 (4Ω), 800W x 2 (2Ω); 1 Ch: 900W x 1 (4Ω)
Distortion (THD): <0.05%
Bandwidth: 4 Hz - 75 kHz (-3 dB)
Signal-to-Noise Ratio: 100 dB (A-weighted)
Damping Factor: 80 (1 kHz, 4Ω)
Input Sensitivity (Pre-In): High: 0.25-1.6 VRMS; Low: 1-7 VRMS

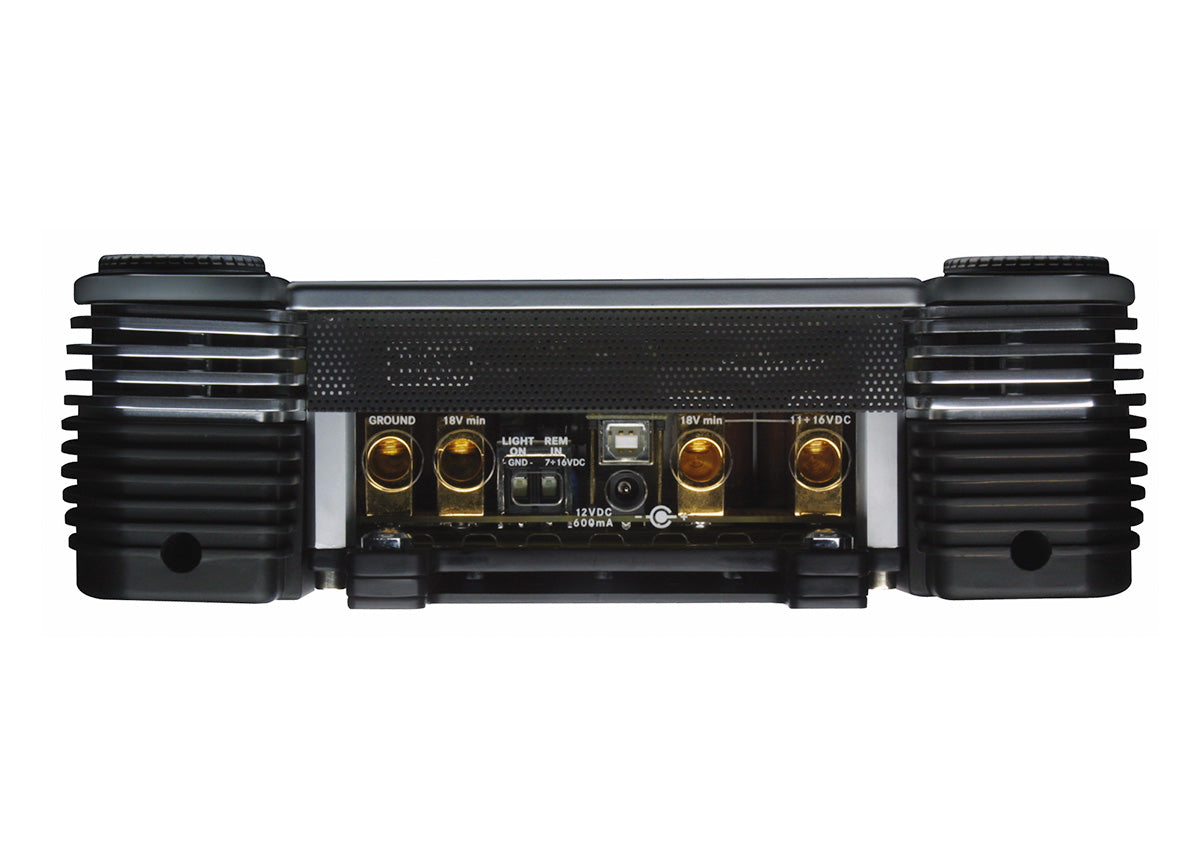

Power Supply Voltage: 11-16 VDC
Idling Current: 4.2 A
Consumption (Max Musical Power): 90 A @ 14.4 VDC, 2Ω
Fuse: 100 A
Weight: 15 kg
Dimensions (W x H x D): 510 x 85 x 280 mm

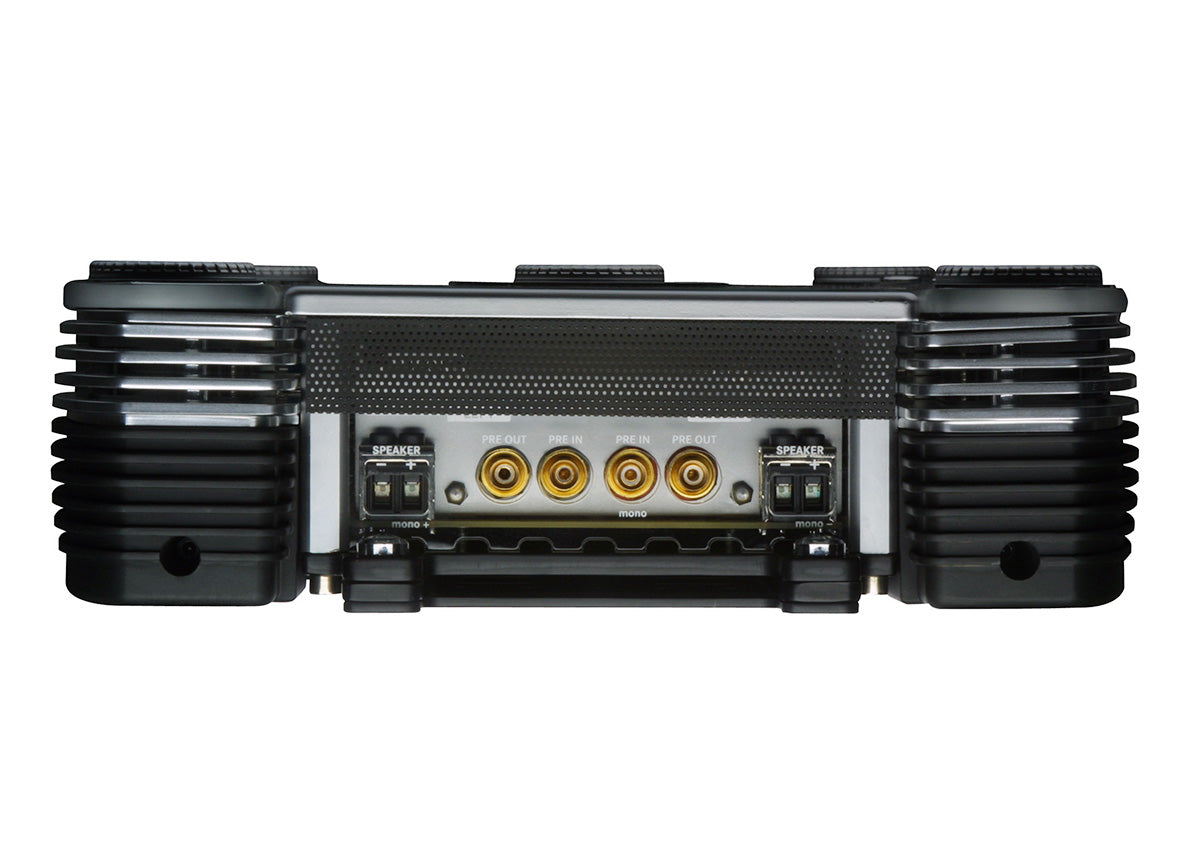

Input Type: Pre IN: L/R (ABS)
Crossover: Separate module: HP/LP 12 dB/oct stereo 45-80 Hz; LP 24 dB/oct mono
Remote IN: 7-16 VDC / 1 mA
Hi Level Input: Yes
Low Level Input: Yes
Digital Input: No
