Featuring a 32 mm pure copper voice coil, the AP 6.5 delivers high power handling with outstanding low-frequency control. No passive crossover is needed thanks to a Klippel-optimised cone that achieves a calibrated mechanical low-pass cut-off, maximising efficiency. The exclusive shallow Triple Wave TPU surround ensures maximum excursion linearity, while the water-repellent paper cone offers durability. Compact design with a reduced mounting depth makes it ideal for OEM placements. All developed using the KLIPPEL suite for precision performance.
Audison Prima AP 6.5 Woofer 165mm 4 Ohm
£0.00
Sale price
£0.00
Regular price
Nominal diameter: 165 mm
Impedance: 4 Ohm
Power Handling - Peak: 210 W
Power Handling - Continuous: 70 W
Sensitivity: 93.5 dB
Frequency Response: 60 - 5000 Hz
Voice Coil Diameter: 32 mm
Magnet size D x d x h: 85 x 40 x 15 mm
Xmax: 2.5 mm
Re: 3.1 Ohm
Fs: 80 Hz
Le: 0.23 mH
Vas: 7.6 l
Mms: 12 g
Cms: 0.31 mm/N
BL: 4.7 T·m
Qts: 0.7
Qes: 0.8
Qms: 4.7
Weight: 0.78 kg

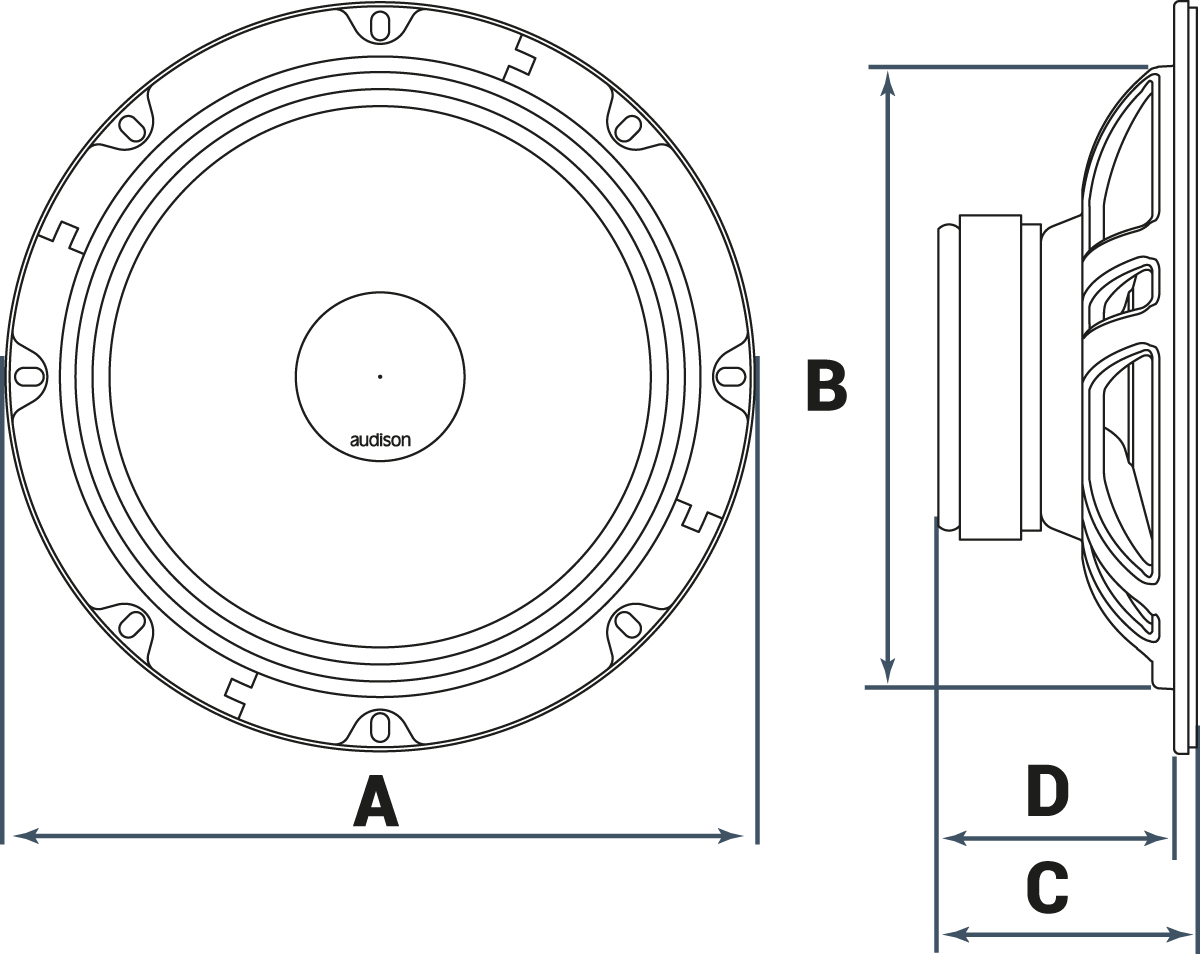

Dimension A: 165 mm
Dimension B: 141 mm
Dimension C: 60 mm
Dimension D: 56 mm
