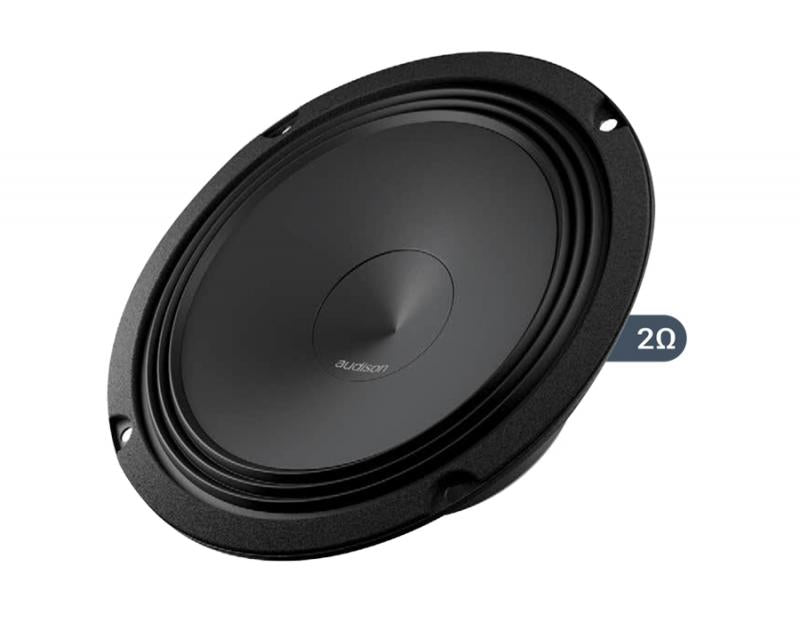

Audison Prima AP 6.5 Ohm2 Woofer 165mm 2 Ohm
£109.00
Sale price
£109.00
Regular price
Skip to product information
Designed to work perfectly with the AP8.9 bit amplifier, this 6.5-inch woofer uses a 2-ohm impedance to draw every watt of its 65W per channel. A lightweight 25mm voice coil and 10mm winding height help achieve 95dB sensitivity and 2.8mm of linear excursion, delivering high SPL with minimal distortion. The 75Hz resonance frequency pushes the low end down to 50Hz for strong bass even without a dedicated subwoofer. A water-repellent treated paper cone and TPU 'Triple Wave' surround ensure durability and linearity, while the compact basket and scratch-resistant coating make installation in OEM locations straightforward.
Audison Prima AP 6.5 Ohm2 Woofer 165mm 2 Ohm
£109.00
Sale price
£109.00
Regular price
Nominal Diameter: 165 mm (6.5 in)
Impedance: 2 Ohm
Power Handling - Peak: 210 W
Power Handling - Continuous: 70 W
Sensitivity: 95 dB
Frequency Response: 60 - 5000 Hz
Voice Coil Diameter: 25 mm
Voice Coil Winding Height: 10 mm
Xmax (Linear Excursion): 2.8 mm
Resonance Frequency (Fs): 75 Hz
DC Resistance (Re): 2.1 Ohm
Total Q Factor (Qts): 0.63
Cone Material: Water-repellent treated paper
Surround Material: TPU (Thermoplastic Polyurethane) Triple Wave
Magnet Size: 85 x 32 x 15 mm
Weight: 0.78 kg

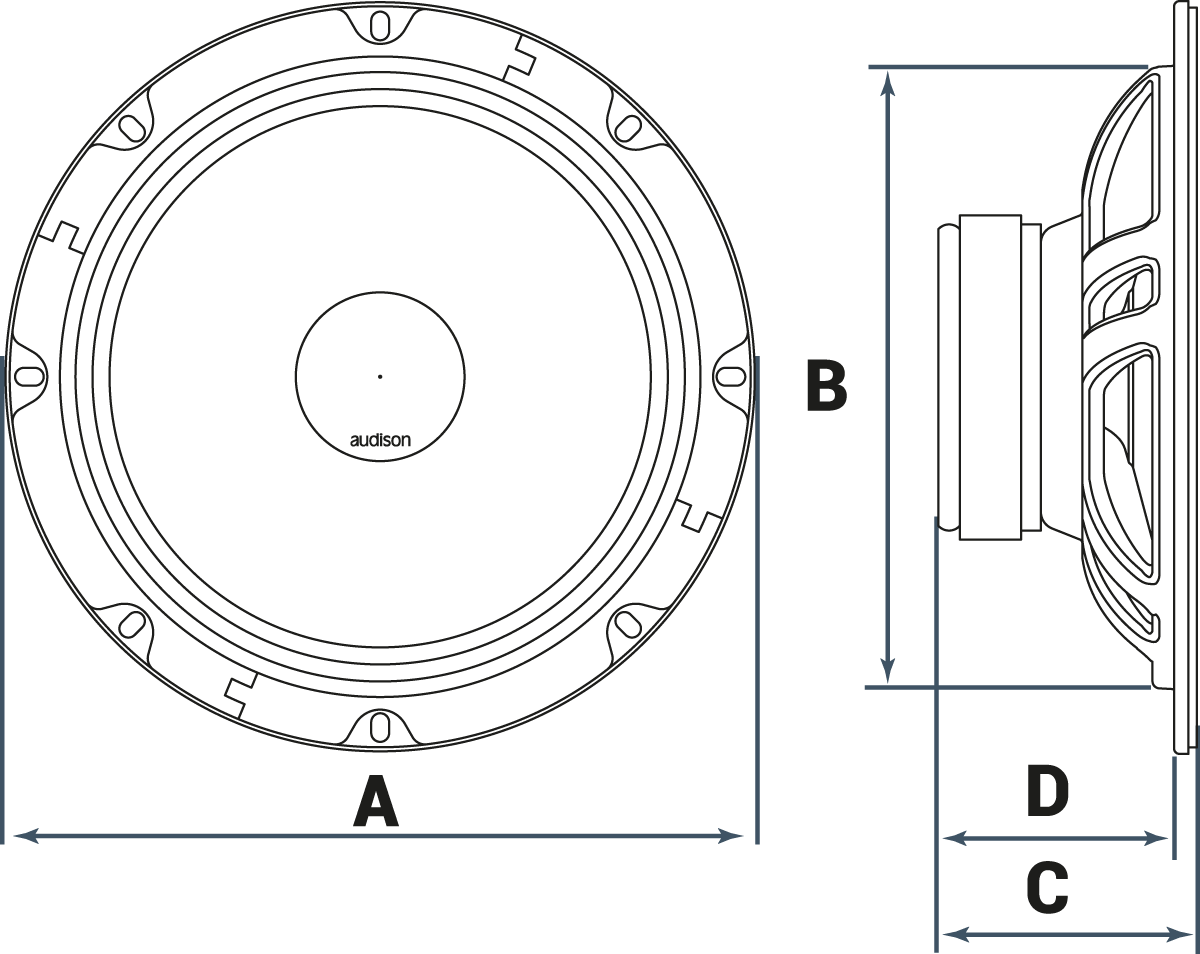

Mounting Depth (Dimension C): 77.3 mm
Cutout Diameter (Dimension B): 141 mm
