Audison Forza AF M5.11 bit DSP Amplifier 11 Channel D-Class

Channels: 5
Class: D-Class
Total Power RMS: 1200 W
Output Continuous Power (RMS) @14.4 VDC, 1% THD: 5 Ch @ 4Ω: 100 W x 4 + 400 W x 1; 5 Ch @ 2Ω: 150 W x 4 + 600 W x 1; 3 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2 + 400 W x 1
Minimum Load Impedance: 2Ω
Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.02%
Bandwidth @ -1.5 dB: 10 Hz ÷ 42 kHz
S/N Ratio (A Weighted @ 1 V Input) Master Input: 98 dBA
S/N Ratio (A Weighted @ 1 V Input) Optical Input: 105 dBA
Efficiency Rated Power: 80.5%
Power Supply Voltage / Fuse: 11 ÷ 15 VDC / 2 x 30A
Operating Power Supply Voltage: 6.5 ÷ 17.5 VDC
Idling Current: 1.5 A
Standby Current Draw: 1 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 53.4 A
Digital Inputs: 1 x Optical S/PDIF; Max 192kHz/24bit + 1 x Optical/Coaxial S/PDIF; Max 96kHz/24 bit with optional F2O card
Pre-In Inputs: 0.6 ÷ 6 VRMS (15 kΩ Imp.)
Speaker-In Inputs: 2.2 ÷ 22 VRMS (5 Ω Imp.)
Hi Level Inputs: 8
Low Level Inputs: 8
Pre Outputs: 6
Sub Out (RCA Pre Out): 5V RMS
Audio DSP Converter: Analog Devices ADAU1467 automotive qualified audio processor
DSP Processing: 24 bit / 96 kHz
Crossover Frequency: 20 Hz ÷ 20 kHz
Filter Mode and Slope: Linkwitz-Riley @ 12/24/36/48 dB/Oct; Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct; Bessel @ 6/12/18/24/30/36/42/48 dB/Oct; Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct; QLP @ 6 dB/Oct
Phase Control: 0° / 180°, All-Pass filters
Analog Input Equalizer: 12 Biquad + Delay (20 ÷ 20k Hz)
Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
Time Alignment Distance: 0 ÷ 510 cm
Time Alignment Delay: 0 ÷ 15 ms
PC Connection: Micro USB 1.1 / 2.0 / 3.0 Compatible
Software/PC Requirements: Windows 10, Windows 11 (min. res. 1024 x 768)
Ambient Operating Temperature Range: 0°C to 55°C (32°F to 131°F)

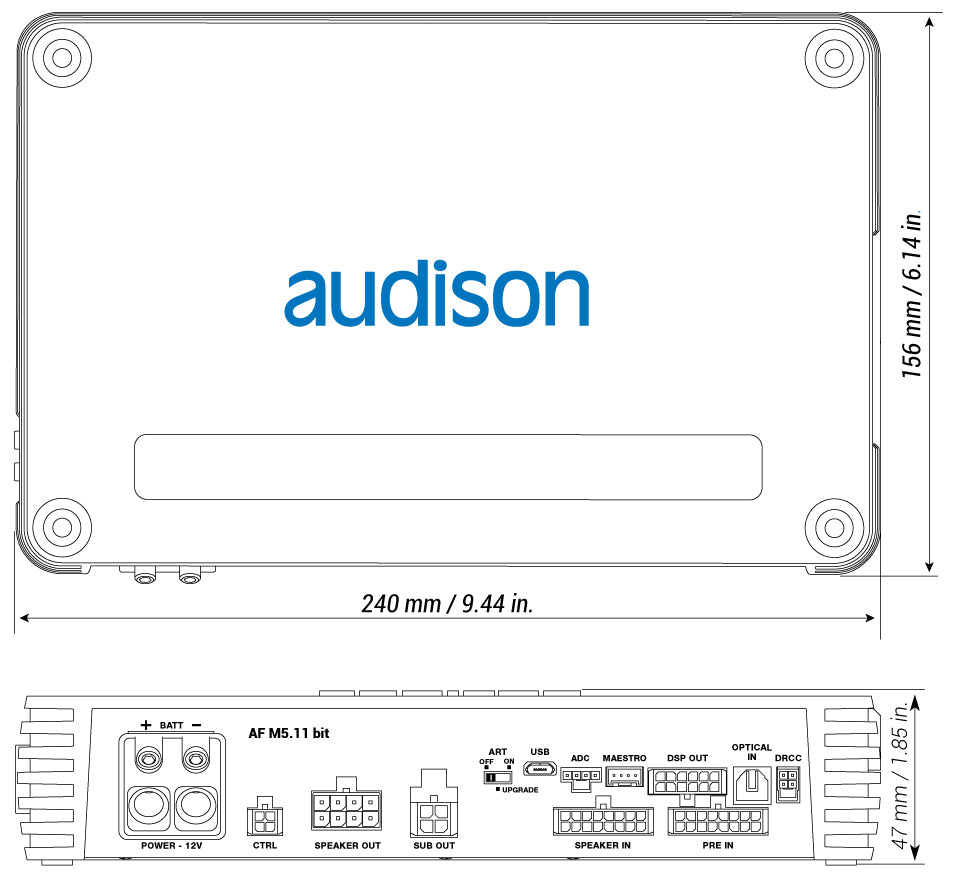

Size (A x B x C): 240 x 156 x 47 mm
Weight: 2.04 kg
Fully Bridgeable: Yes
DRC Port: Input for DRC AC remote control (Optional)
ADC Port: Manage other Audison devices that support this standard
