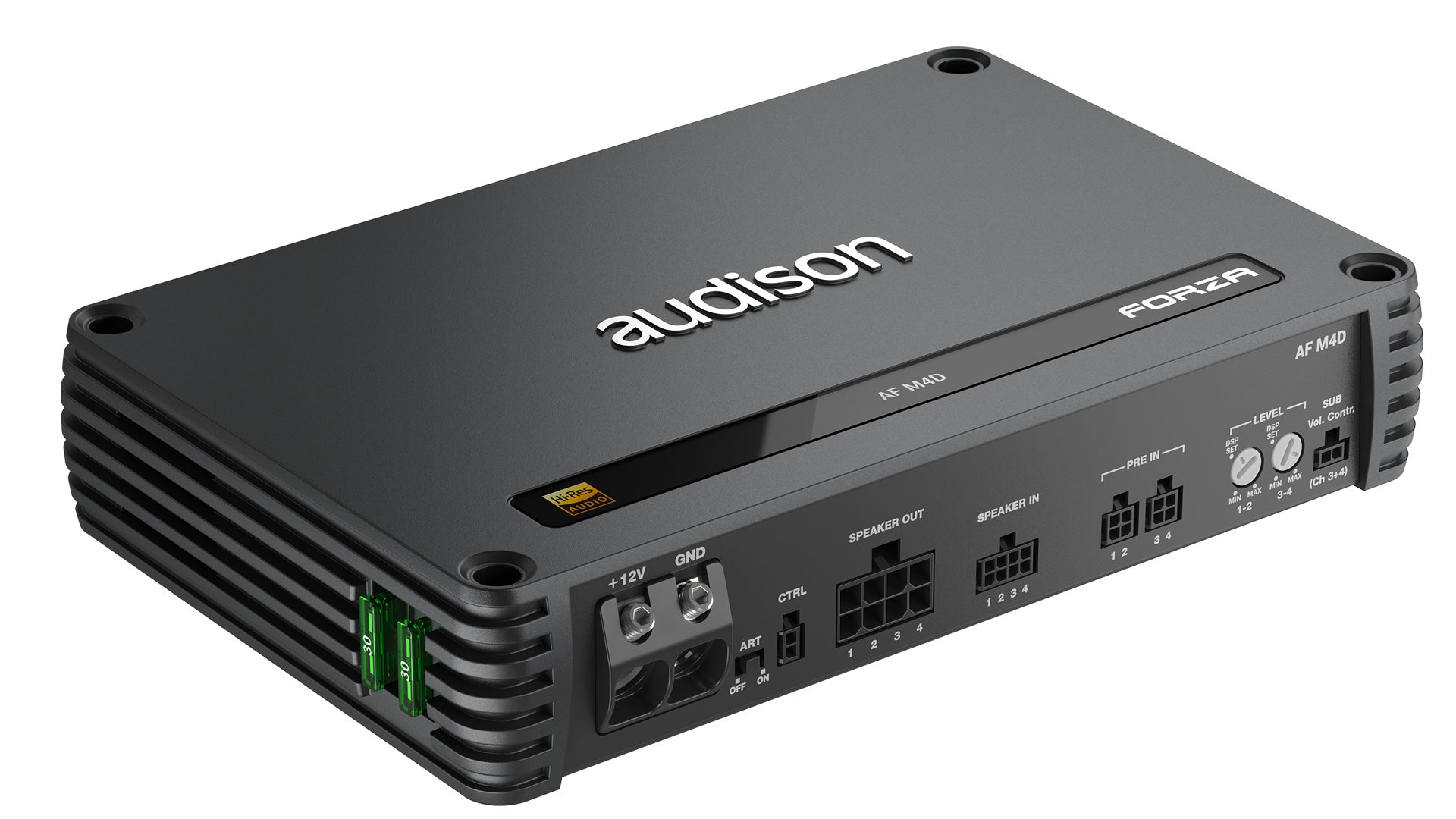

Audison Forza AF M4D Amplifier 1040W D-Class Fully Bridgeable

Audison Forza AF M4D Amplifier 1040W D-Class Fully Bridgeable

£699.00
£699.00
Skip to product information
Audison Forza AF M4D Amplifier 1040W D-Class Fully Bridgeable
Audison Forza AF M4D Amplifier 1040W D-Class Fully Bridgeable

Audison Forza AF M4D Amplifier 1040W D-Class Fully Bridgeable
£699.00
£699.00

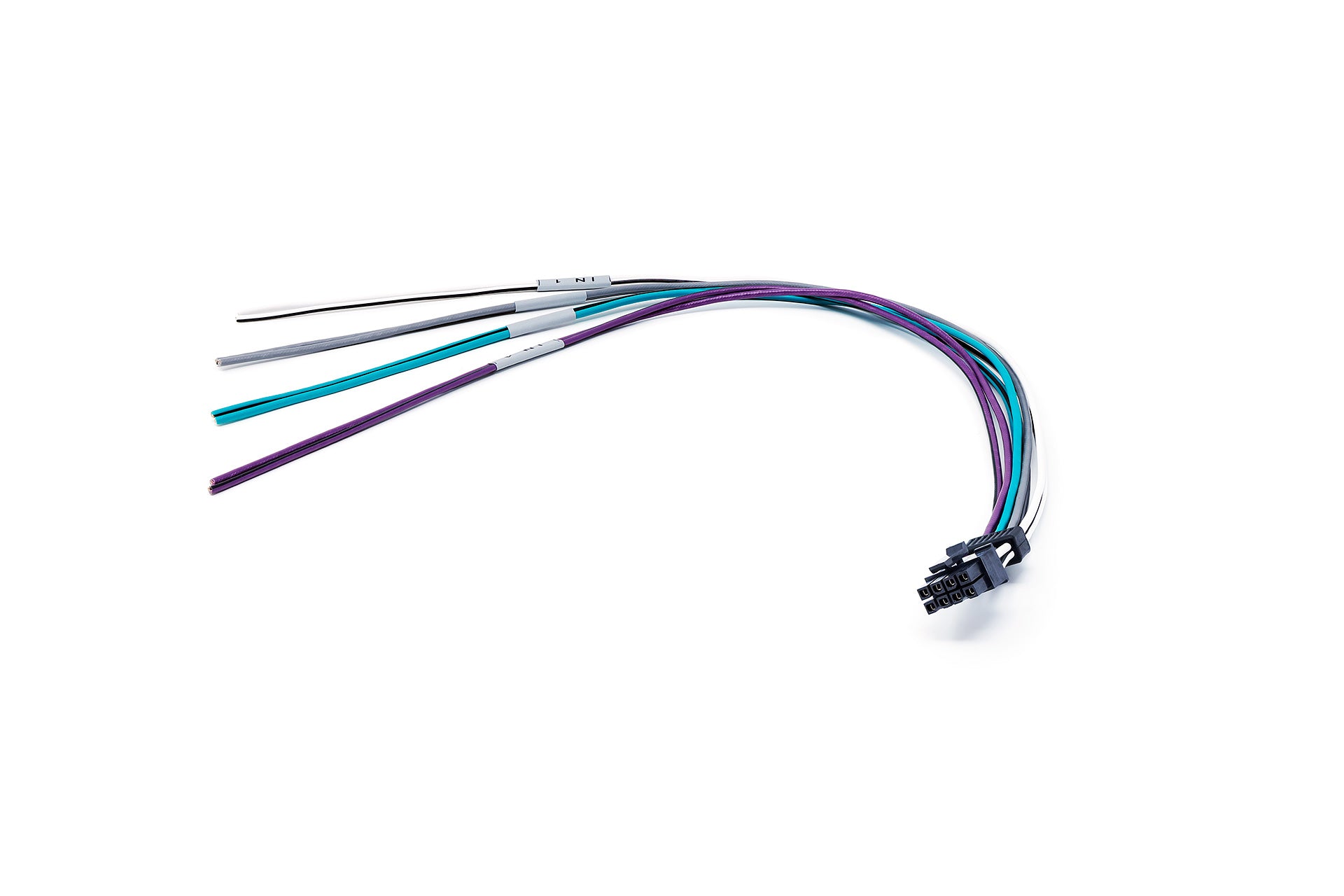

The Forza AF M4D is a four-channel amplifier designed to add high-fidelity power to your car audio system, packing 1040W total RMS into a remarkably compact chassis. It uses Audison's latest D-Class technology with higher switching frequencies and steeper filtering for clean, detailed sound that extends up to 40 kHz for Hi-Res certification. Each channel delivers 160W at 4 ohms or 260W at 2 ohms, and bridging pairs gives you 520W per channel for serious flexibility. The straight-wire architecture keeps the signal path pure when used with an external processor like the bit One HD Virtuoso. Included plug-and-play harnesses make connection to AF bit amplifiers simple, while the 83% efficiency keeps power consumption in check. This amplifier is built for audiophiles who want compact power without compromising sound quality.

Channels: 4
Class: D-Class
Efficiency: 83%
Hi Level Input: Yes
Low Level Input: Yes
Digital Input: No
Power Supply Voltage / Fuse: 11 ÷ 15 VDC
Operating Power Supply Voltage: 6.5 ÷ 17.5 VDC
Idling Current: 1.2 A
Idling Current When Off: 0.006 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 47 A
Remote OUT: 6.5 ÷15 VDC (150 mA)
Remote IN: 4 ÷15 VDC (1 mA)
ART - Automatic Remote Turn On/Off (Selectable): 1.5 VDC
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power: 0.05%
Bandwidth: 10 Hz ÷ 42 kHz (-3 dB)
S/N Ratio (A weighted @ 1 V): 103 dBA
Input Sensitivity Pre-In: 0.6 ÷ 6 VRMS
Input Sensitivity Speaker-In: 2.2 ÷ 22 VRMS
Total Power RMS: 1040 W
Minimum Load Impedance: 4 Ch 2Ω, 2 Ch Bridge 4Ω
Output Power (RMS) @14.4 VDC, 1% THD: 4Ch @ 4Ω: 160W x 4, 4Ch @ 2Ω: 260W x 4, 2Ch Bridge @ 4Ω: 520W x 2
Adjustable Crossover: No
CEA Output Power @ 4Ω, 1% THD+N: 150W x 4
CEA SN Ratio (ref. 1W output): 80 dB
Input Type: Pre-In / Speaker-In
Remote Sub Volume: ±12 dB
Fuse: 2 x 30A
Weight: 2.04 kg

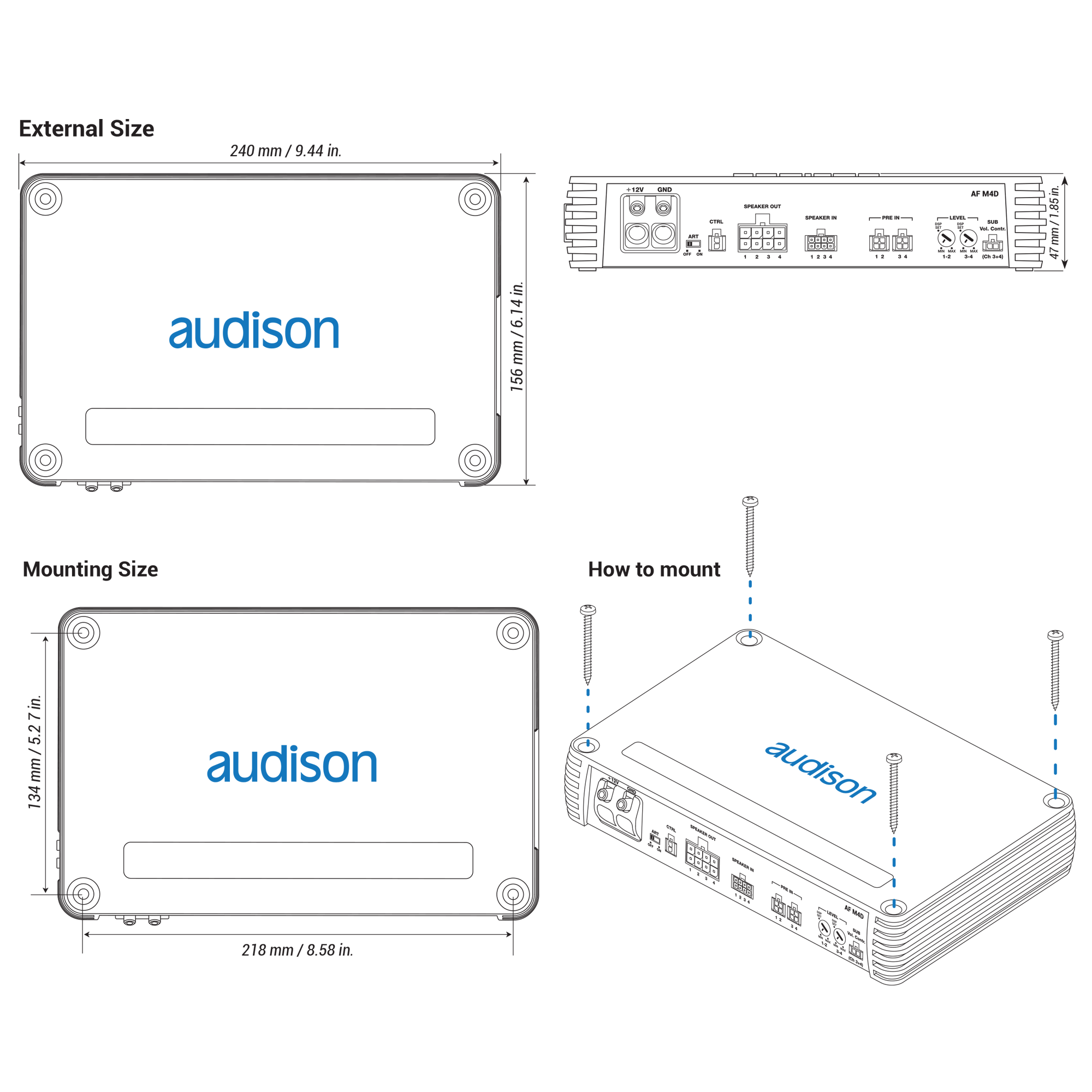

Dimensions (A x B x C): 240 x 156 x 47 mm
