Audison AP F1D Monophonic Class D Amplifier 1000W

Audison AP F1D Monophonic Class D Amplifier 1000W

£0.00
£0.00
Skip to product information
Audison AP F1D Monophonic Class D Amplifier 1000W
Audison AP F1D Monophonic Class D Amplifier 1000W

Audison AP F1D Monophonic Class D Amplifier 1000W
£0.00
£0.00

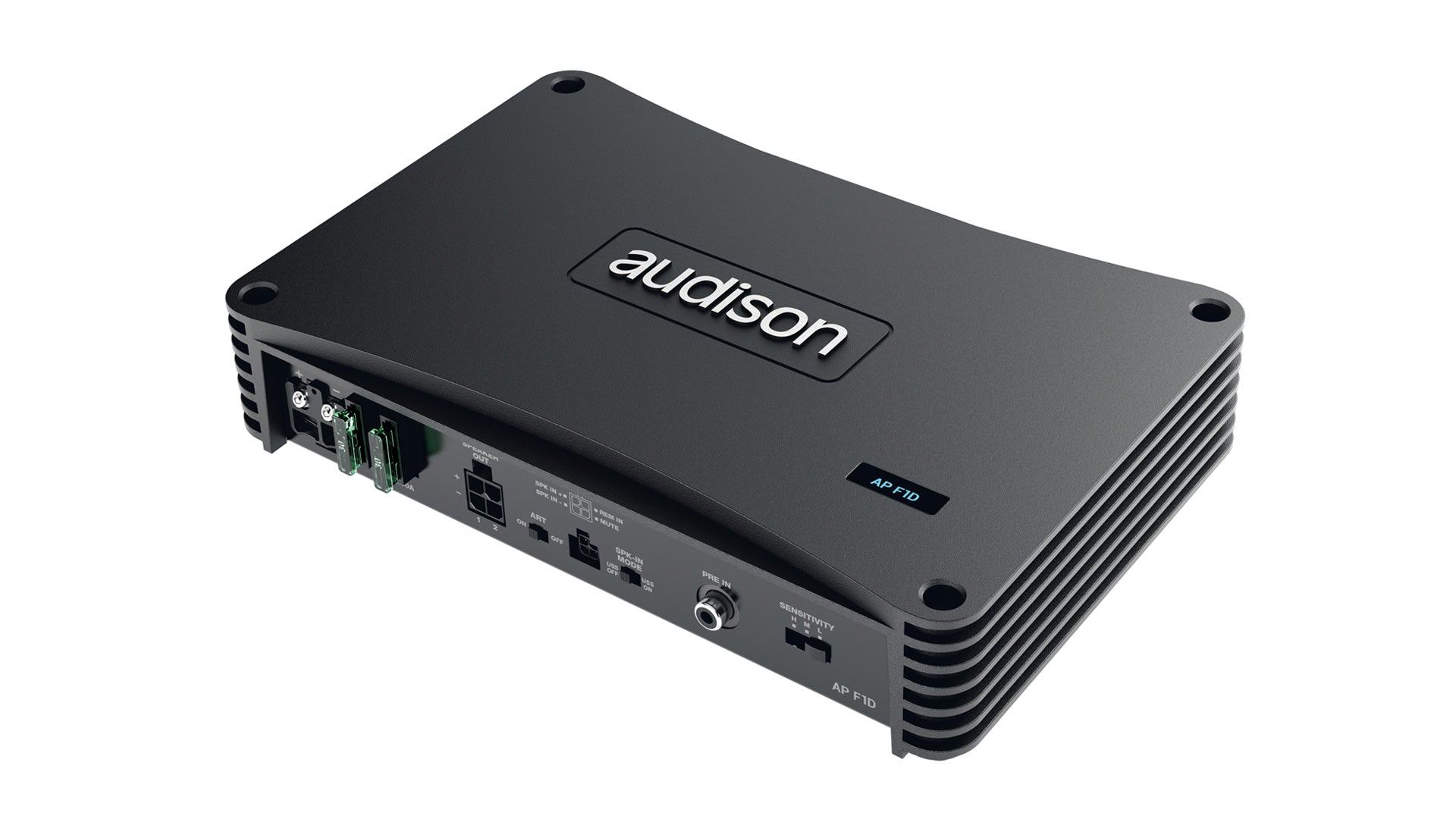

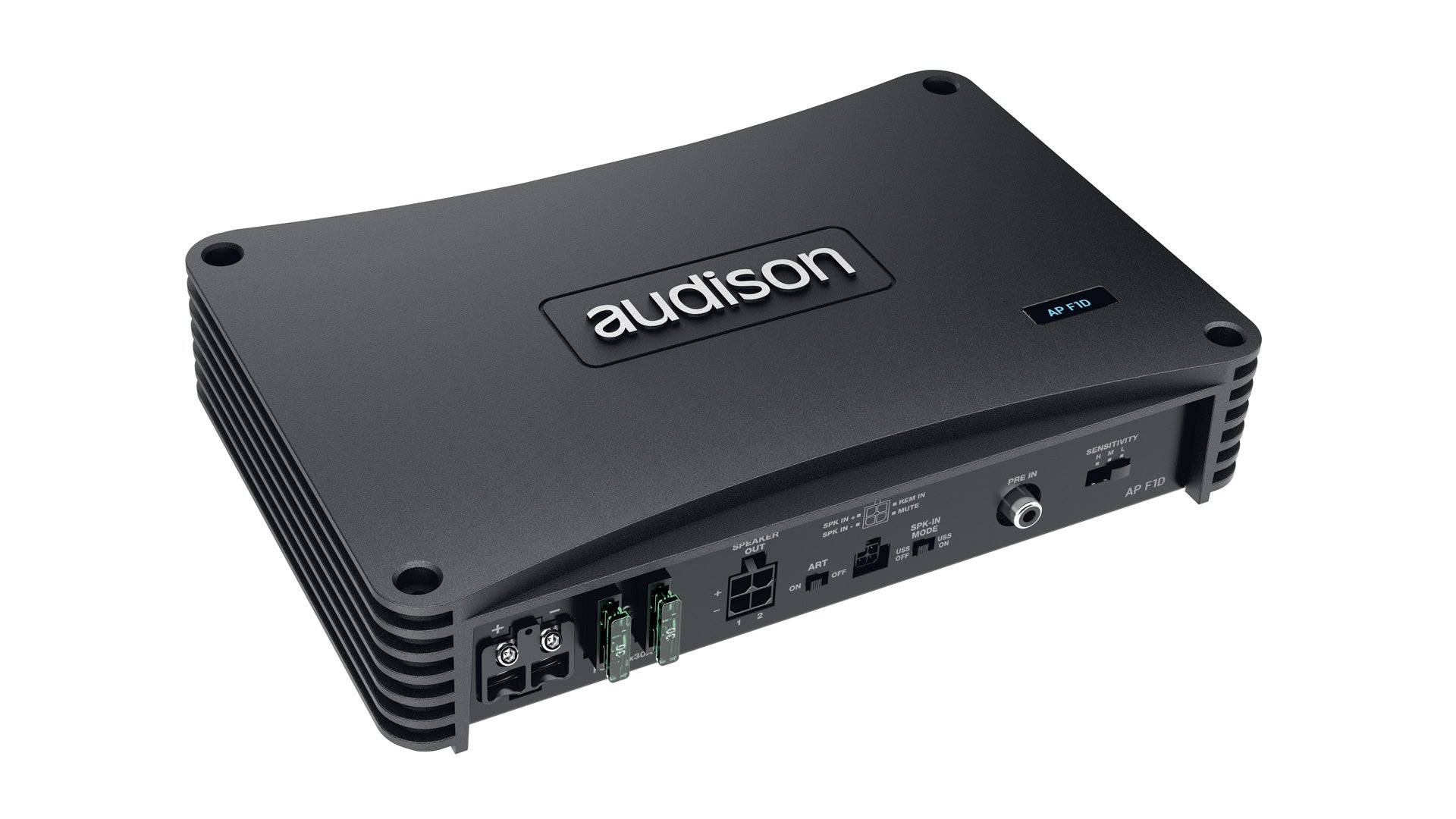

Meet the Audison AP F1D, a compact monophonic Class D amplifier that pumps out 1000W RMS at 1 ohm for your most demanding subwoofers. Its tiny footprint hides a powerhouse that slots into tight installs without sacrificing sound quality. The built-in USS technology ensures seamless integration with modern head units that check for speaker loads. With a selectable ART system, it can turn on and off automatically using the audio signal. The 110 dBA signal-to-noise ratio and 0.1% THD deliver exceptionally clean, distortion-free low frequencies. Weighing just 1.92 kg, this Italian-engineered amplifier is a brilliant partner for the AP F8.9 bit processor.

Channels: 1
Class: D
Hi Level Input: Yes
Low Level Input: Yes
Power Supply Voltage / Fuse: 11–15 VDC / 2 x 30A
Operating Power Supply Voltage: 6.5–17 VDC
Idling Current: 1.3 A
Idling Current When Off: 0.05 mA
Consumption @ 14.4 VDC, 1Ω, Max Musical Power: 50 A
Remote IN: 6.5–15 VDC (1 mA)
ART – Automatic Remote Turn-on/off: 2–7 VDC (selectable)
Distortion – THD @ 100 Hz, 4Ω, 70% Rated Power: 0.1%
Bandwidth: 10 Hz – 500 Hz (-3 dB)
Signal-to-Noise Ratio: 110 dBA (A weighted @ 1 V)
Damping Factor: 140 @ 100 Hz, 4Ω
Input Sensitivity – Pre-In: Selectable: 0.6 / 2.0 / 6.0 VRMS
Input Sensitivity – Speaker-In: Selectable: 2.0 / 6.5 / 20 VRMS
Total Power RMS: 1000 W
Minimum Load Impedance: 1Ω
Output Power (RMS) @14.4 VDC, 1% THD: 1Ch @ 4Ω: 500W, 1Ch @ 2Ω: 800W, 1Ch @ 1Ω: 1000W
Adjustable Crossover: No
Output Power @ 4Ω, 1% THD+N, 14.4 V (CEA): 500 W
SN Ratio (ref. 1W output) (CEA): 81.5 dB

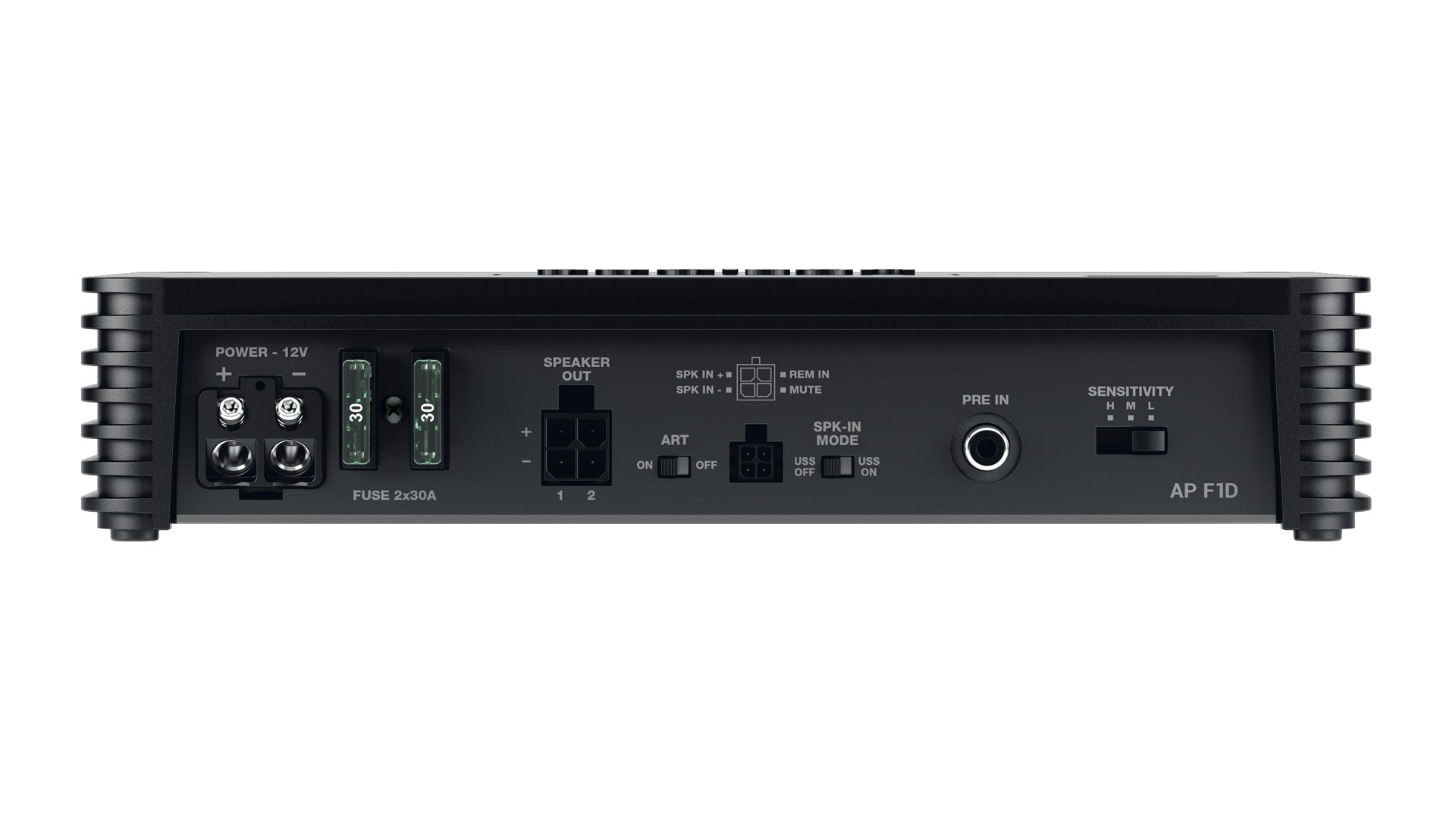

Input Type: RCA Pre-In / Speaker-In wired
Filter / Mute Control: Mute (Energy Saving, active to ground)
Ambient Operating Temperature: 0°C to 55°C
Weight: 1.92 kg
